Semi automatic N fold hand towel paper production line XY-BT-288-A
The production line is consisted of automatic N fold hand towel paper folding machine,manual bagging machine and semi automatic band saw cutting machine.

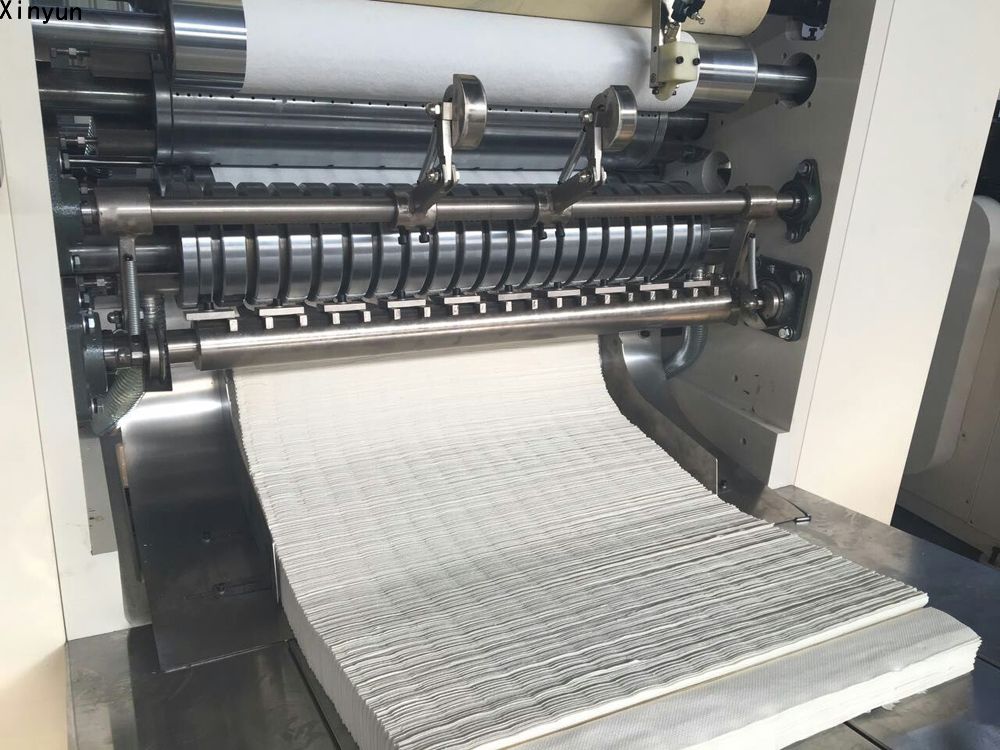

XY-BT-288 Automatic N fold hand towel paper making machine
N folding hand towel machine process paper material after embossing, cuting off, interfold become N fold, the products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.
Function and characteristics
1. Production speed :（60~100）m/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range, 33-45g/m2 (single ply)
6. To be order two layers glue lamination .(Optional)
The main technological parameters
Unfold size of finished products
230*230±2mm (Other sizes are available)
Folded size of finished products
76.6*230mm±2mm (Other sizes are available)
Width of jumbo roll paper
Diameter of jumbo roll inner core
76.2mm (Other sizes are available)
0-100m/min (Depending on the machine model )
Frequency conversion speed regulator
PLC computer controller
Vacuum suction “ N” fold
Timing belt and flat belt
Steel to steel
Pneumatic dot slitting
3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer)
Depends on Machine Model
Depend on the size and configure
XY-AI-15 N Folding Hand towel paper bagging machine
This machine replaces a manual operation.
After bagging, the product is orderly.
1. Production Speed: 5-10 bags/min
2. Size of the packing bag(L×W×H mm)：200-1500*60-100*70-80 mm
3.Power supply: 0.5 Kw (220V 50Hz)
4. Air supply: 0.4 Mpa 0.3 m³/min
5. Weight of Equipment: 0.4T

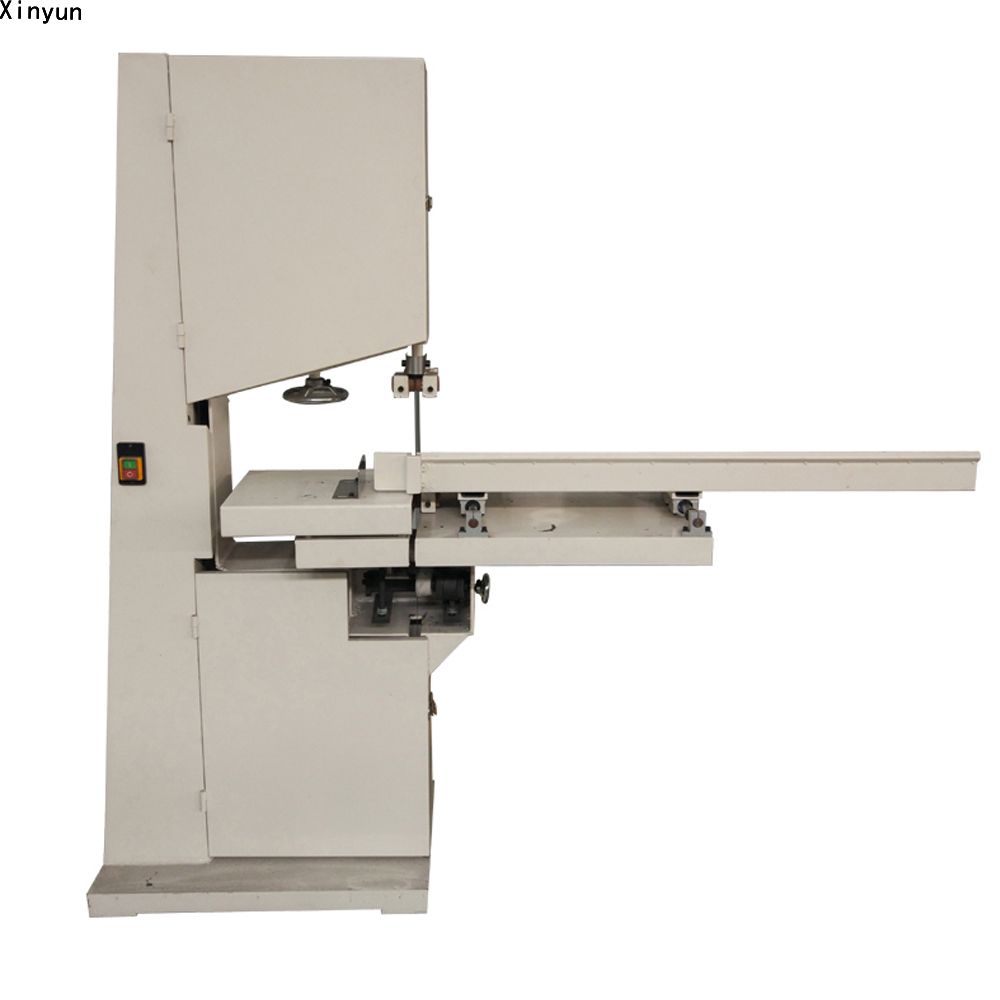

XY-AI-300 Semi automatic band saw cutting machine
Functions and features
This machine is the equipment for cutting paper.The main function is to cut toilet paper,kitchen towel paper and N fold hand towel paper
The machine is compose with stander , saw blade drive, adjustment, tension , saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation .
Main technology parameter:
Power: 2.2KW (380V 50Hz)
Production speed : 10-30 cuts /min
Overall size (m ): 1.6x0.6x1.8 (LxW xH）
Weight: about 0.2 T
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
