XY-BT-288 Automatic V fold hand towel paper making machine manufacturer

Automatic V fold hand towel paper making machine XY-BT-288

The V-fold hand towel machine processes paper material through embossing, slitting, cutting and interfolding. It can produce orderly V-fold paper towels for hotels, offices, kitchens and other hand-drying applications.

The standard machine is designed for single-ply paper. A two-ply glue lamination system can be ordered as an optional configuration according to the customer’s finished-product requirements.

Function and Characteristics

Production speed: 60–100 m/min.
Steel-to-steel embossing unit.
Pneumatic automatic paper-break separation for convenient paper threading.
Synchronous-belt transmission provides an accurate transmission ratio and low operating noise.
Applicable base paper range: 33–45 g/m² for single-ply paper.
Two-ply glue lamination is available as an optional configuration.

Optional Two-Ply Glue Lamination Configuration

The optional glue lamination unit applies adhesive between two paper plies before V-folding. It helps bond the plies together and supports the production of laminated hand towels with a more structured appearance.

The glue application method, embossing pattern, paper basis weight and finished-towel specification shall be confirmed according to the customer’s samples and production requirements.

Configuration note: Glue lamination is not included in the standard XY-BT-288 configuration. It must be specified when ordering the machine.

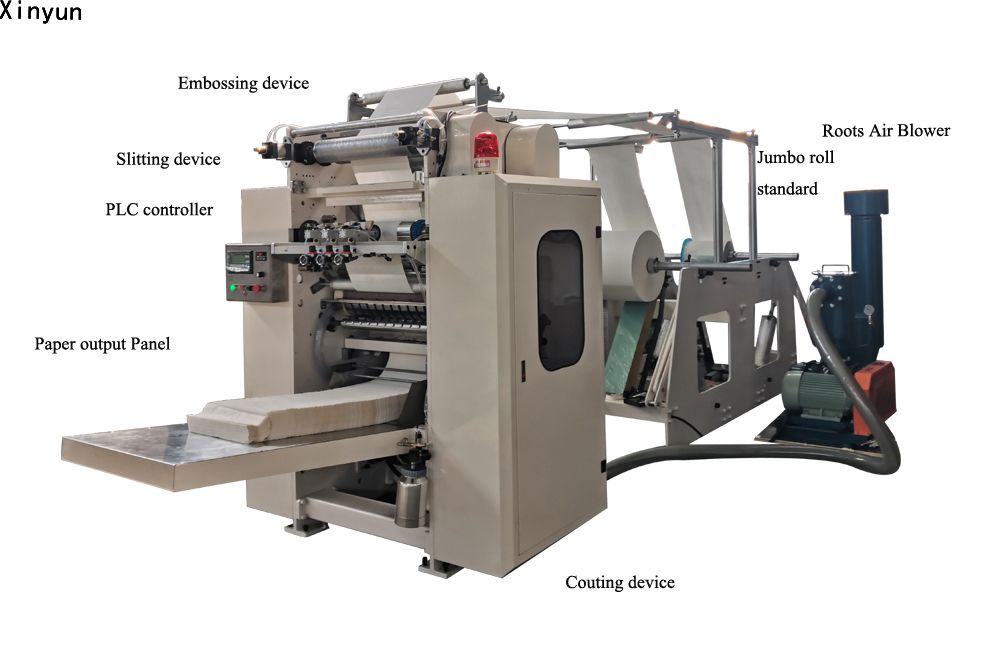

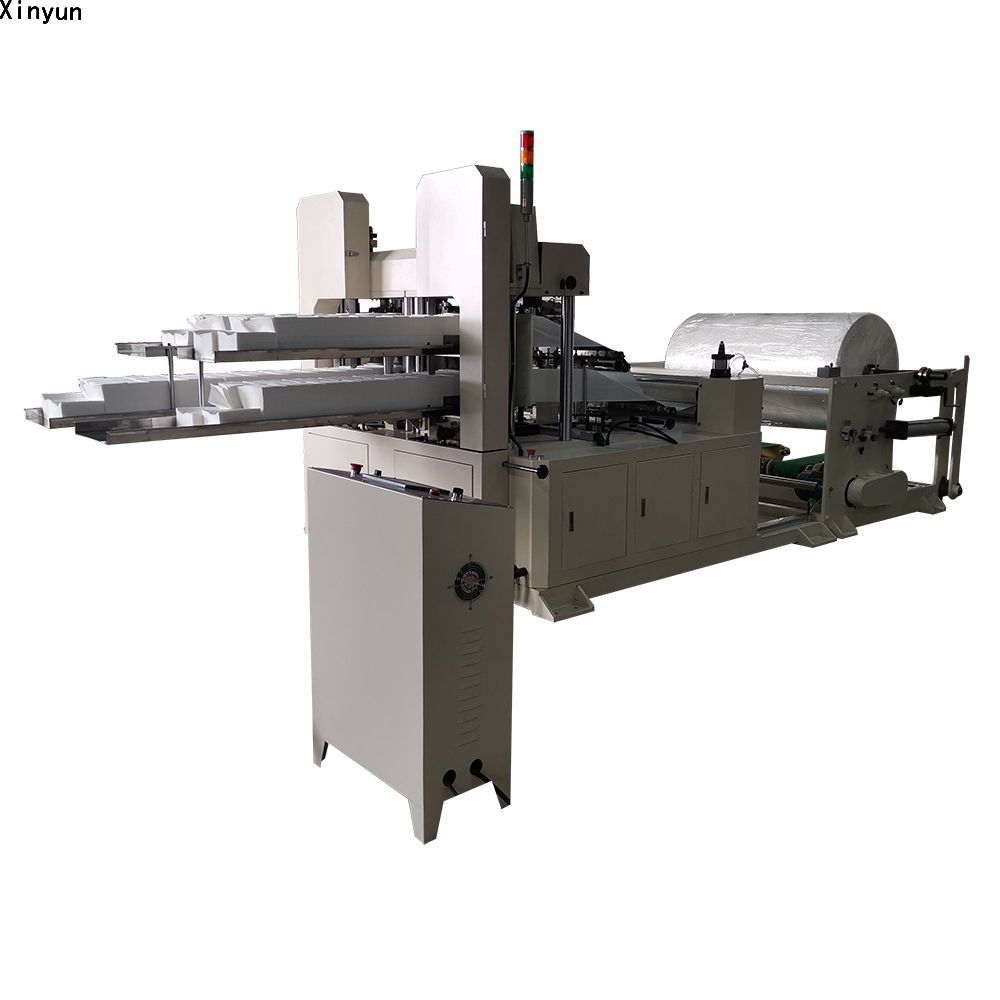

Automatic V fold hand towel paper making machine.jpg

Main Technical Parameters:

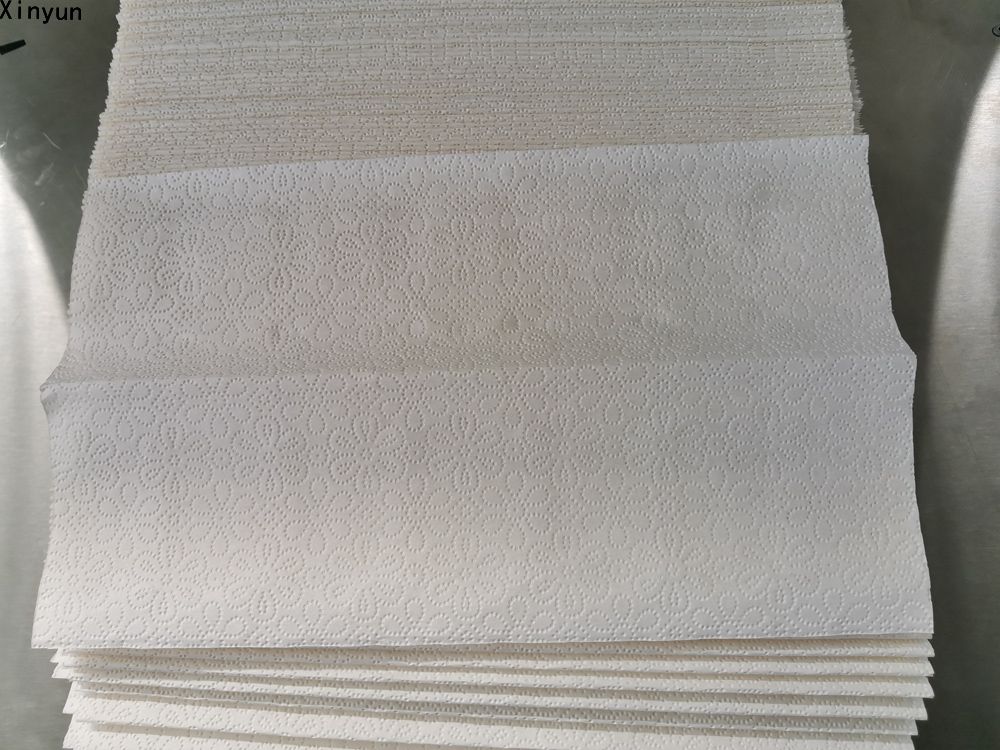

Unfold size of finished products	210（L）X230±2mm Other sizes are available
Folded size of finished products	105（L）X230±2mm Other sizes are available
Raw material inner core diameter	76.2mm (Other sizes are available)
Production speed	0-100m/min (Depending on the machine model )
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding type	Vacuum suction “ V” fold
Transmission unit	Timing belt and flat belt
Counter	Ink marked
Embossing unit	Steel to steel
Slitting unit	Pneumatic dot slitting
Pneumatic system	3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer)
Power	380V 50Hz

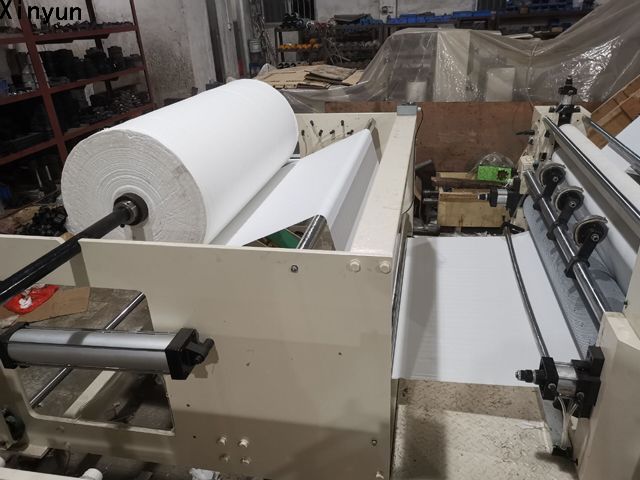

Jumbo roll standard

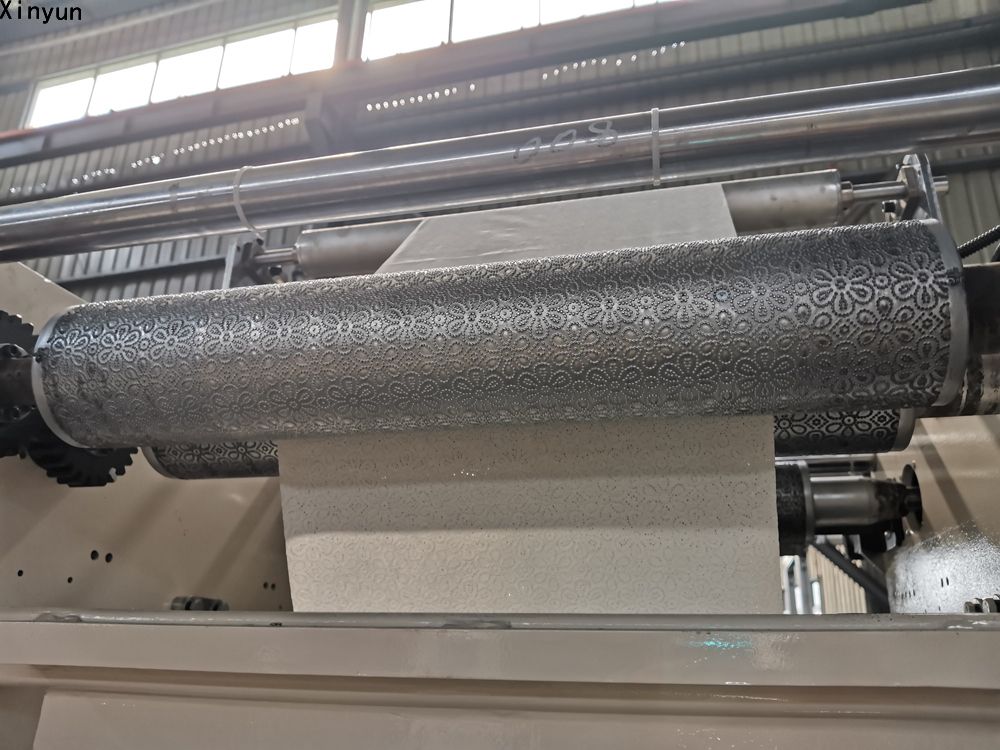

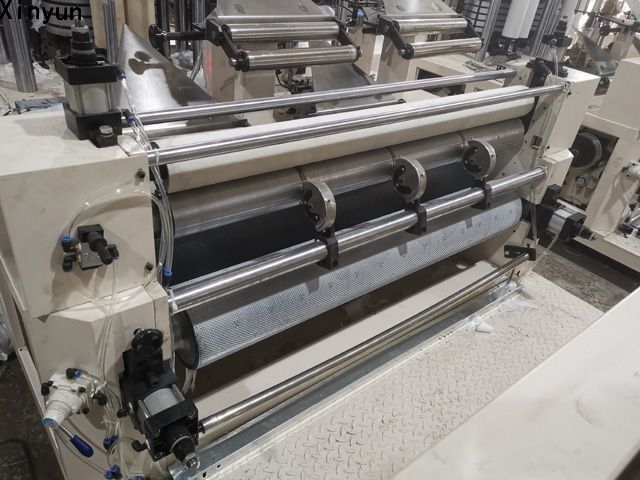

Embossing device

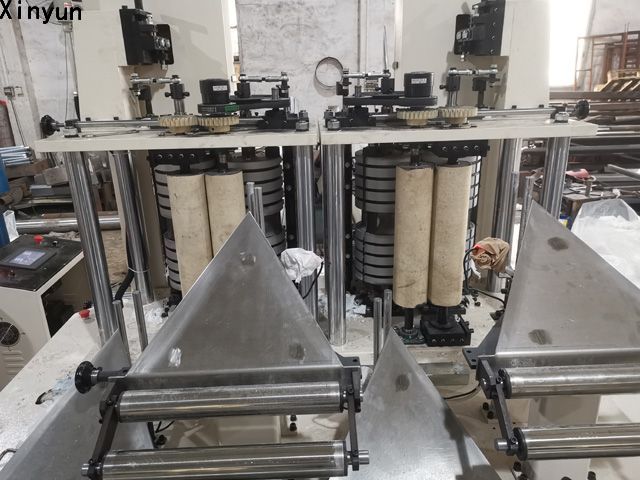

Folding device

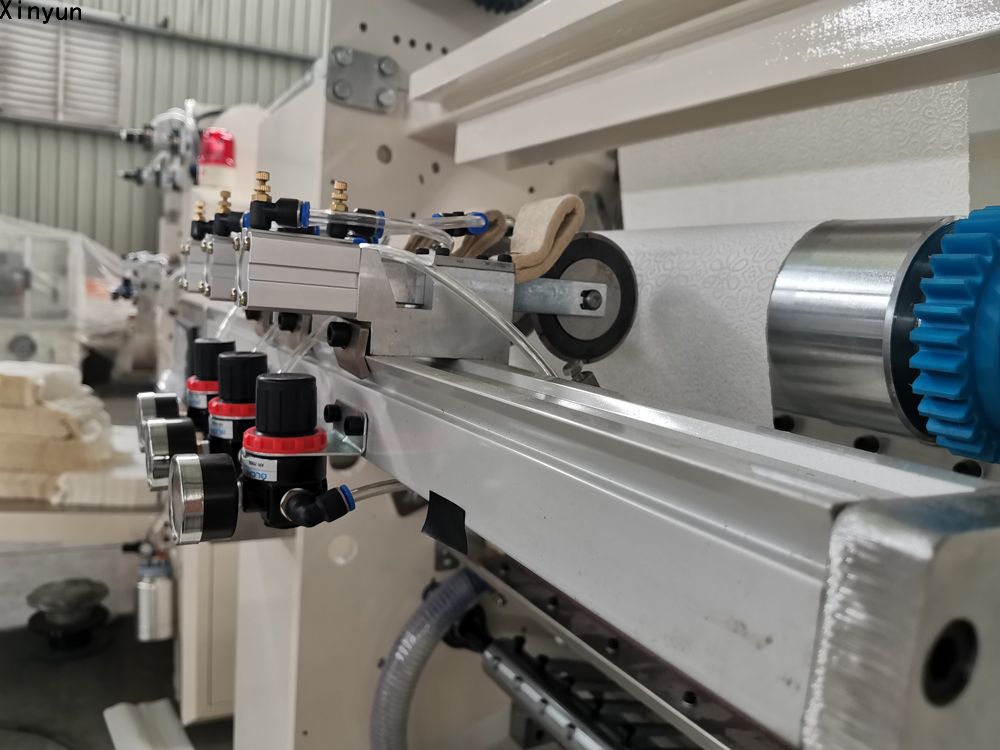

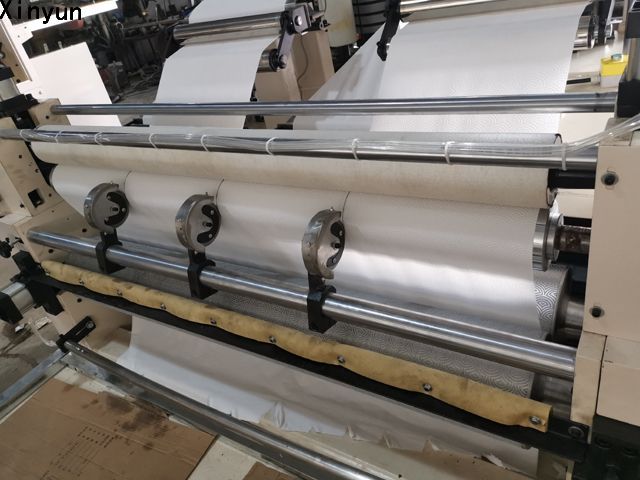

Slitting device

Countting device

Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Packing & Delivery

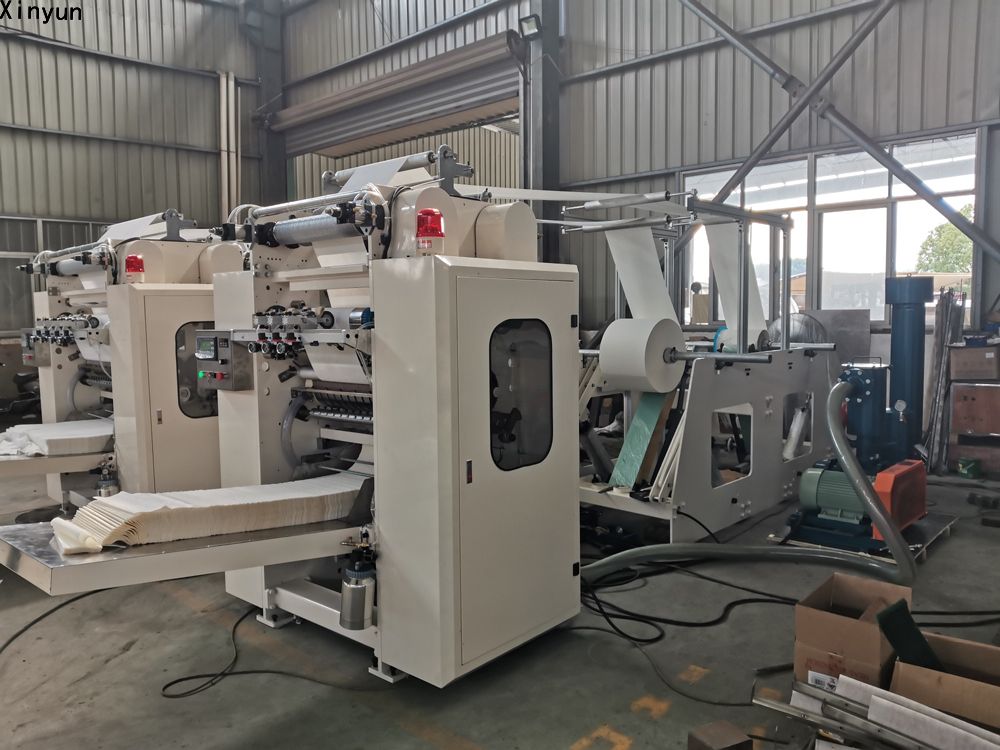

Workshop
