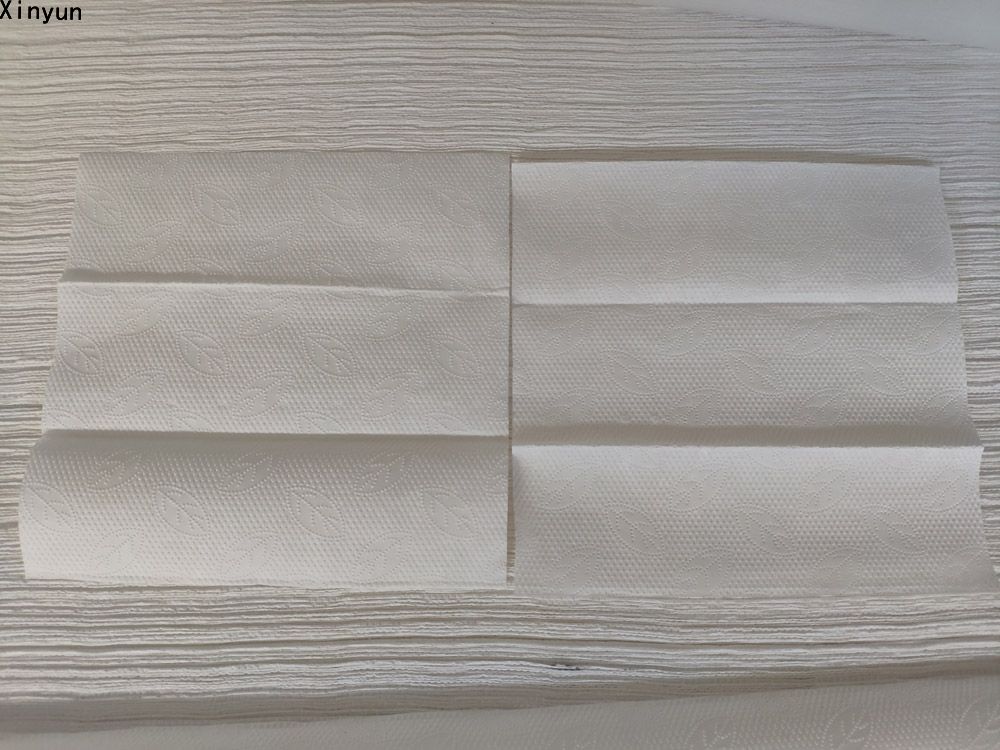

N folding hand towel machine process paper material after embossing, cutting off, interfold become N fold, the products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.

Share this:

Technical Parameter

Automatic N fold hand towel paper making machine XY-BT-288

N folding hand towel machine process paper material after embossing, cuting off, interfold become N fold, the products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.

Function and characteristics

1. Production speed :(60~100)m/min

2. Embossing unit: Steel to steel embossing unit.

3. Pneumatic broken paper automatic separation, convenient wear paper.

4. Using synchronous belt transmission, transmission ratio is accurate, low noise.

5. Base paper adapt range, 33-45g/m2 (single ply)

6. To be order two layers glue lamination .(Optional)

230 mm N fold hand towel paper making machine.jpg

Main Technical Parameters:

Speed

400 sheets/line/min

Unfolding size210-230*210-230 mm
Folding size70-76.6*210-230 mm
Folding type

Vacuum suction “ N” fold

The width of jumbo roll420-1250 mm
The diameter of jumbo roll1200 mm

Embossing unit

Steel to steel

Jumbo Roll Material Qualify

1-2 layers, 18-25g/m2.

Controlling System

PLC control

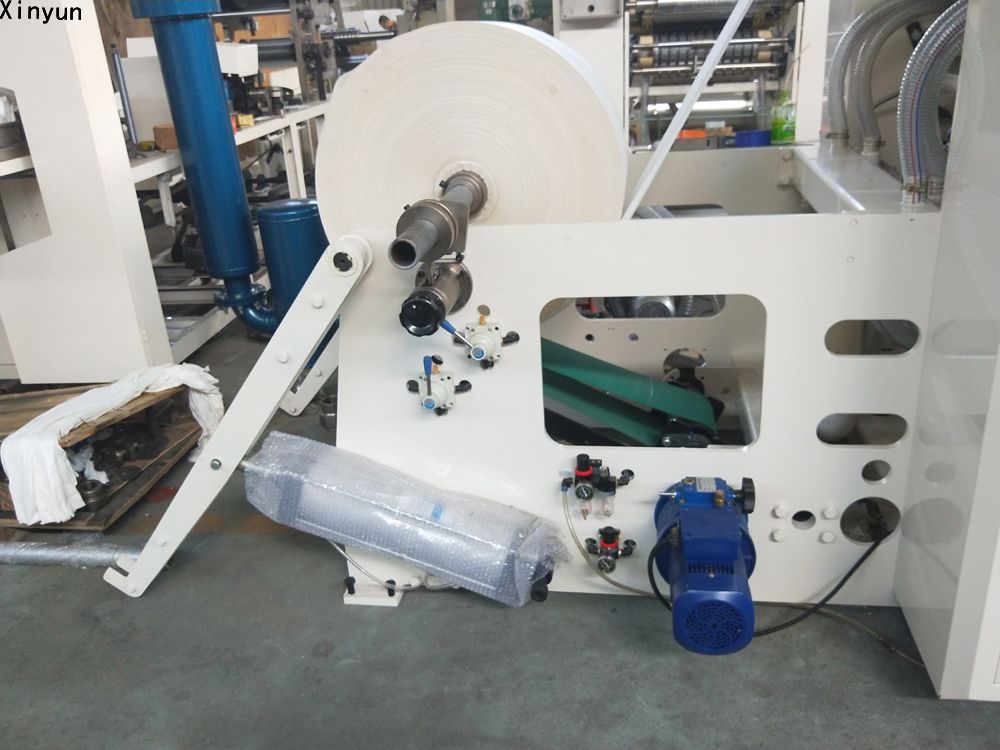

Jumbo roll standard

jumbo roll standard.jpg

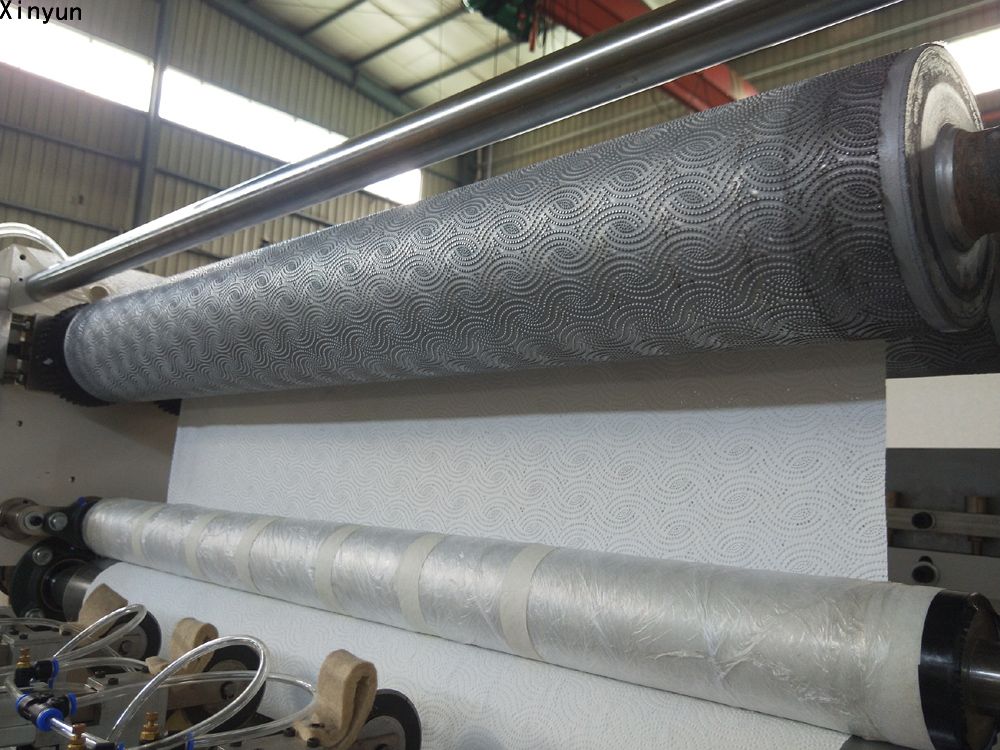

Embossing device

EMBOSSING DEVICE.jpg

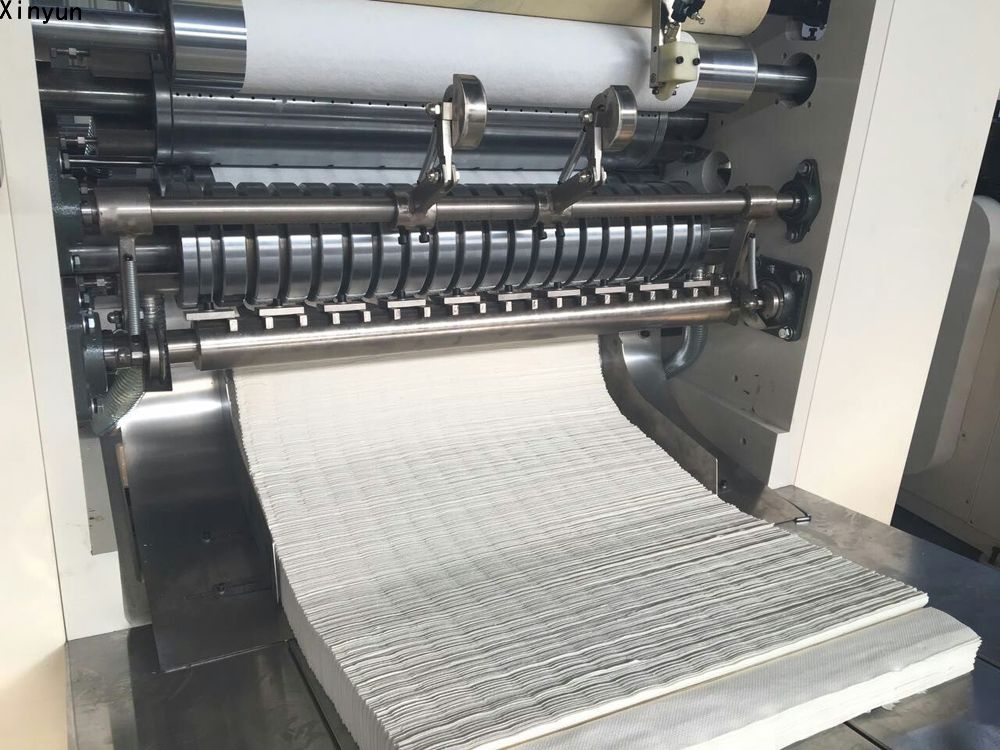

Folding device

folding device.jpg

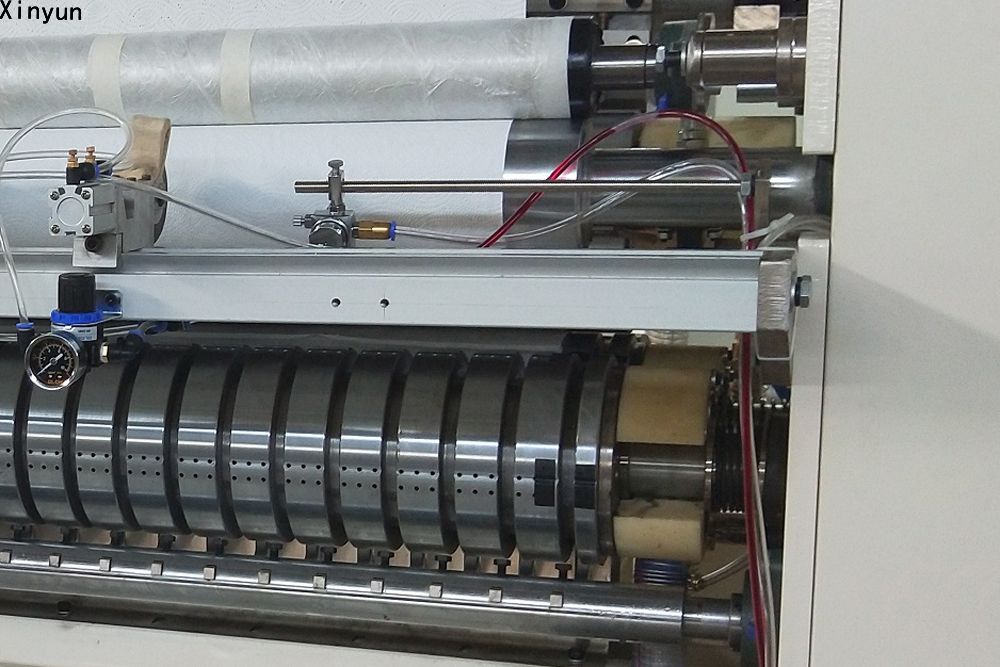

Slitting device

slitting device.jpg

Countting devicecounting device.jpg

Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Packing & DeliveryPacking.jpg

Workshop


Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)


2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
