High speed full automatic jumbo roll slitting and rewinding machine is the raw material at high speed slitting system, from single ply can be slit and rewinded into two, three or four ply paper with various widths, for the production of napkin, hankies, facial or sanitary napkins. The machine is featured of good performance, compact structure, and stable running, and easy operation. The finished products have good winding profiles, which make it a good equipment for the paper mills and textile factories, and a high reputation from the customers.

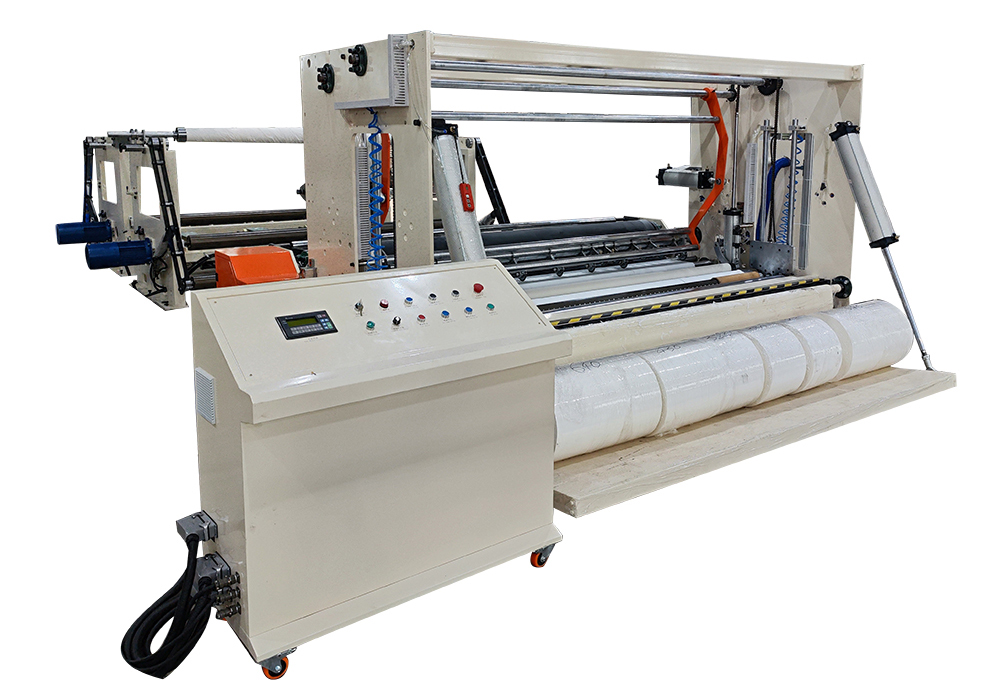

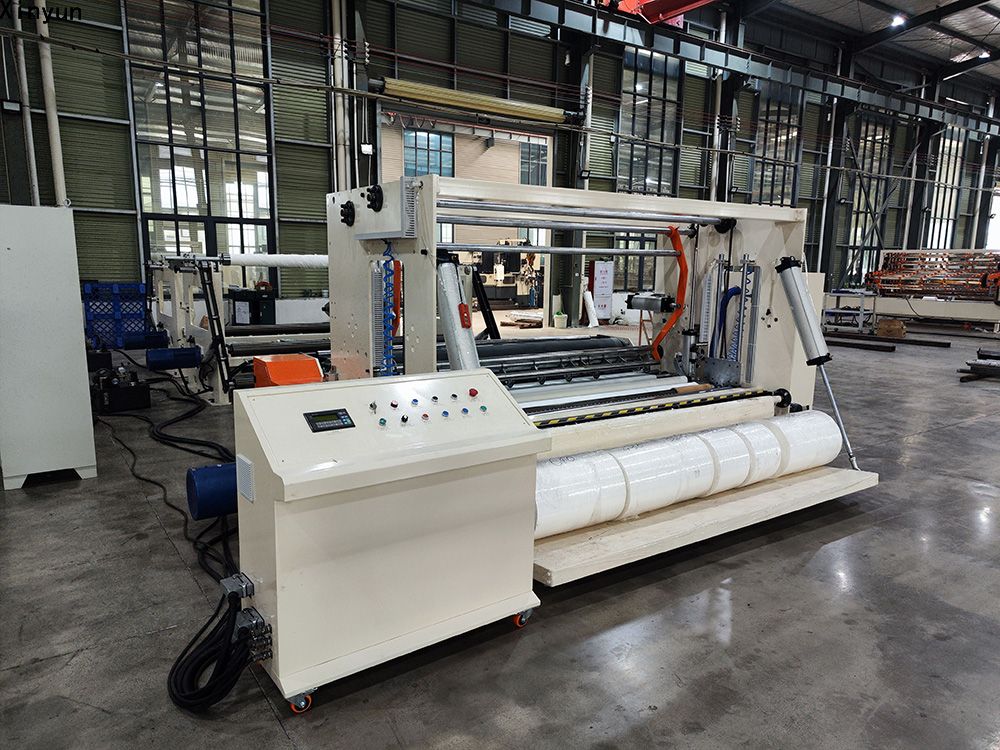

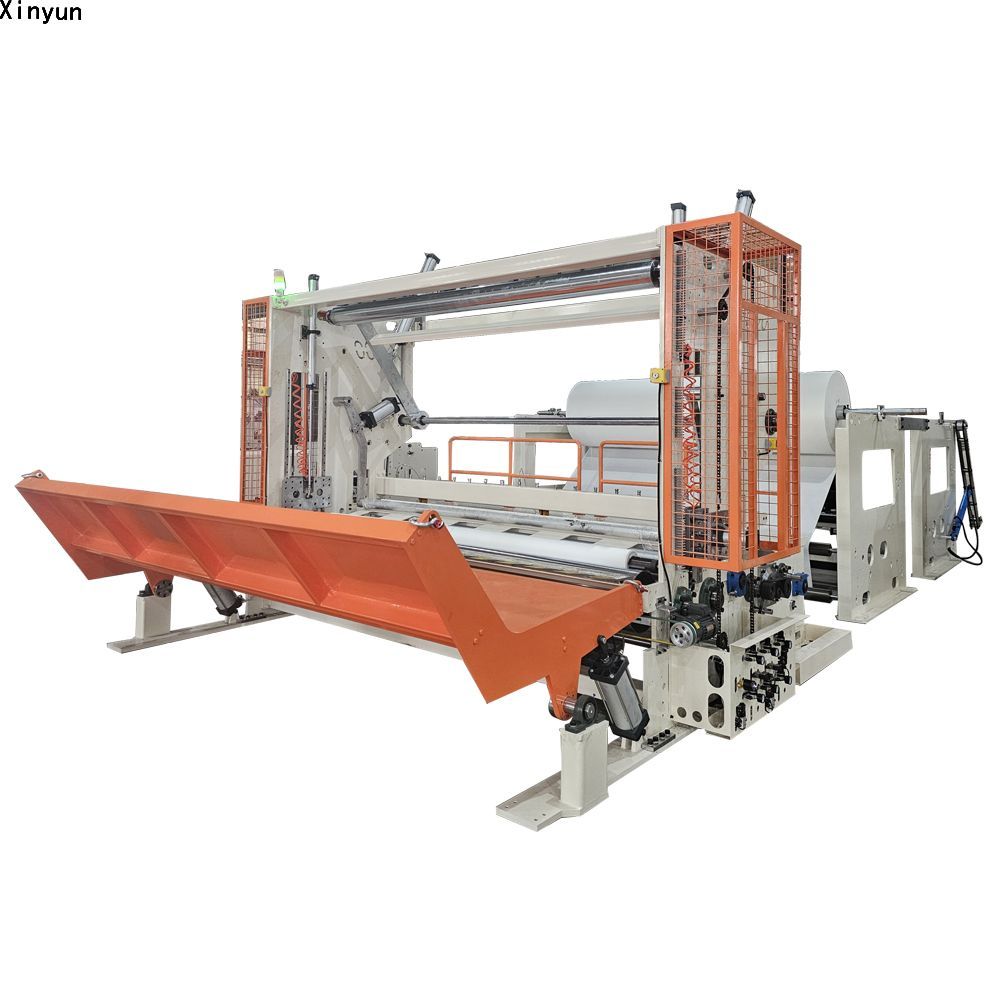

High speed jumbo roll paper slitting rewinding machine XY-XX-A

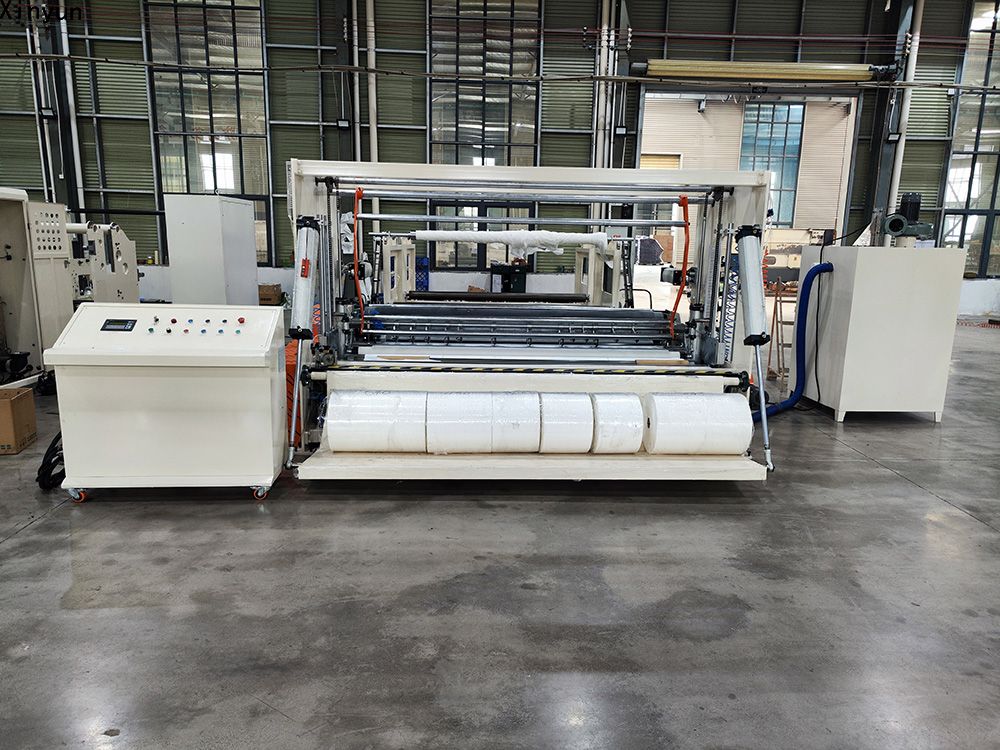

The high-speed, fully automatic jumbo roll slitting and rewinding machine uses a high-speed slitting system to process mother jumbo rolls. Single-ply raw paper can be slit and rewound into two-, three- or four-ply paper rolls in different widths for producing napkins, handkerchief tissues, facial tissues and sanitary paper products. The machine features reliable performance, a compact structure, stable operation and easy use.
The finished products have neat winding profiles, making the XY-XX-A a practical machine for paper mills and tissue paper converting factories.
Workshop
Our company
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
A wide belt is used on the back stand to increase friction during paper feeding.
Synchronous belt transmission provides stable operation and low noise, even during high-speed production.
A newly designed fastening unit makes raw-material adjustment more convenient.
Pneumatic paper loading and vacuum edge-trim suction are included.
An automatic finished-roll discharging unit is available as an optional configuration. It helps reduce roll deformation caused by dropped rolls and reduces manual handling.

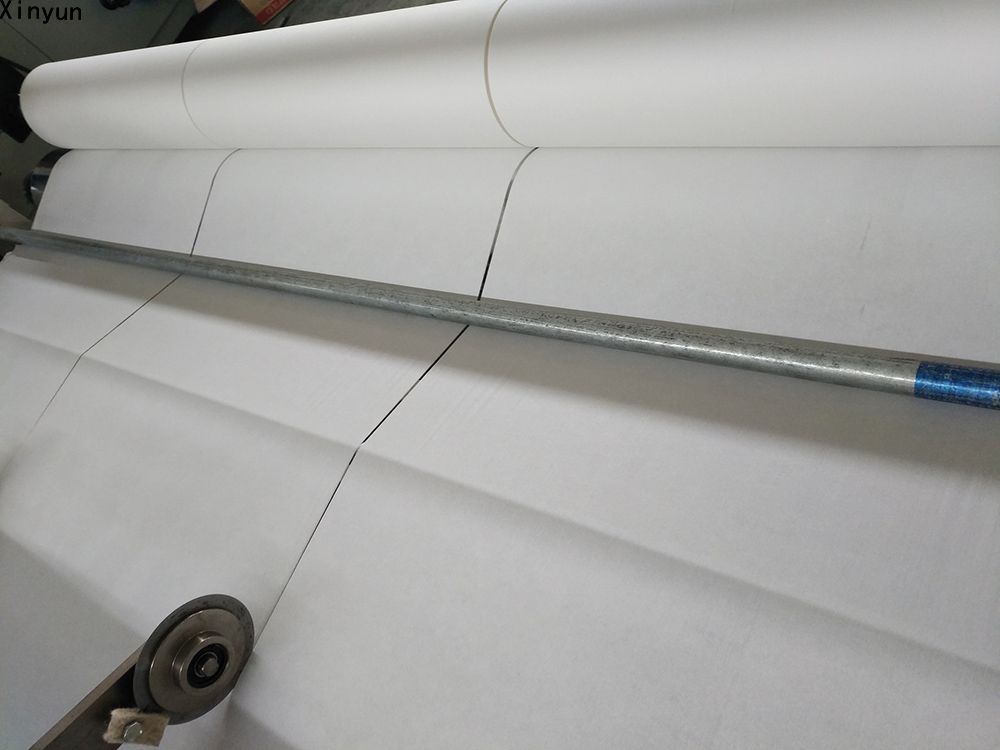

The machine is easy to operate and produces finished rolls with neat winding profiles and clean slit edges.
Optional configuration note: Automatic finished-roll discharging is optional and should be confirmed according to the required production arrangement.
| The width of jumbo roll | 1800-2800 mm |
| The diameter of jumbo roll | 1200 mm(Other size can be specified) |
Jumbo roll inner core diameter | 3inches(76.2mm) |
Slitting diameter | 1200 mm |
Finish product Inner core diameter | 76mm |
Slitting Width | Adjustable |
| Speed | 400 m/min |
Base paper core shaft | Air-shaft |
Rewinding System | Pneumatic timing rewinding |

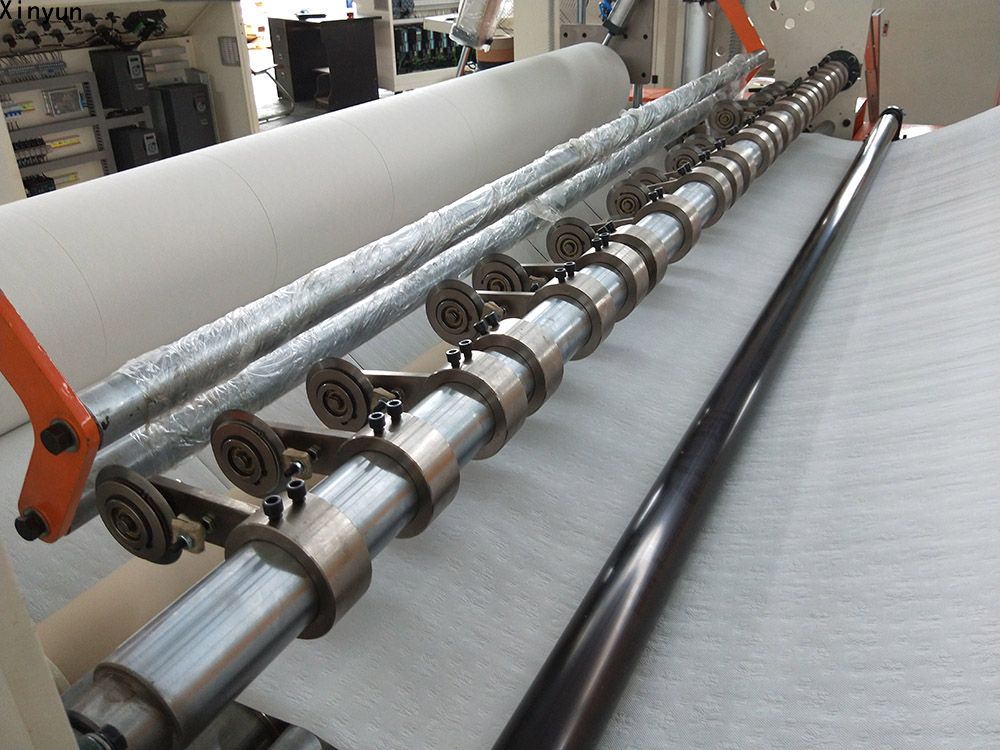

Slitting System | Automatic slitting control |
Discharging Unit | Automatic discharging |
Edge Cutting Unit | 2.2KW Vacuum suction edge cutting 2.2 KW |
Power | Frequency conversion speed regulate 15KW |
Pneumatic system | 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) |
