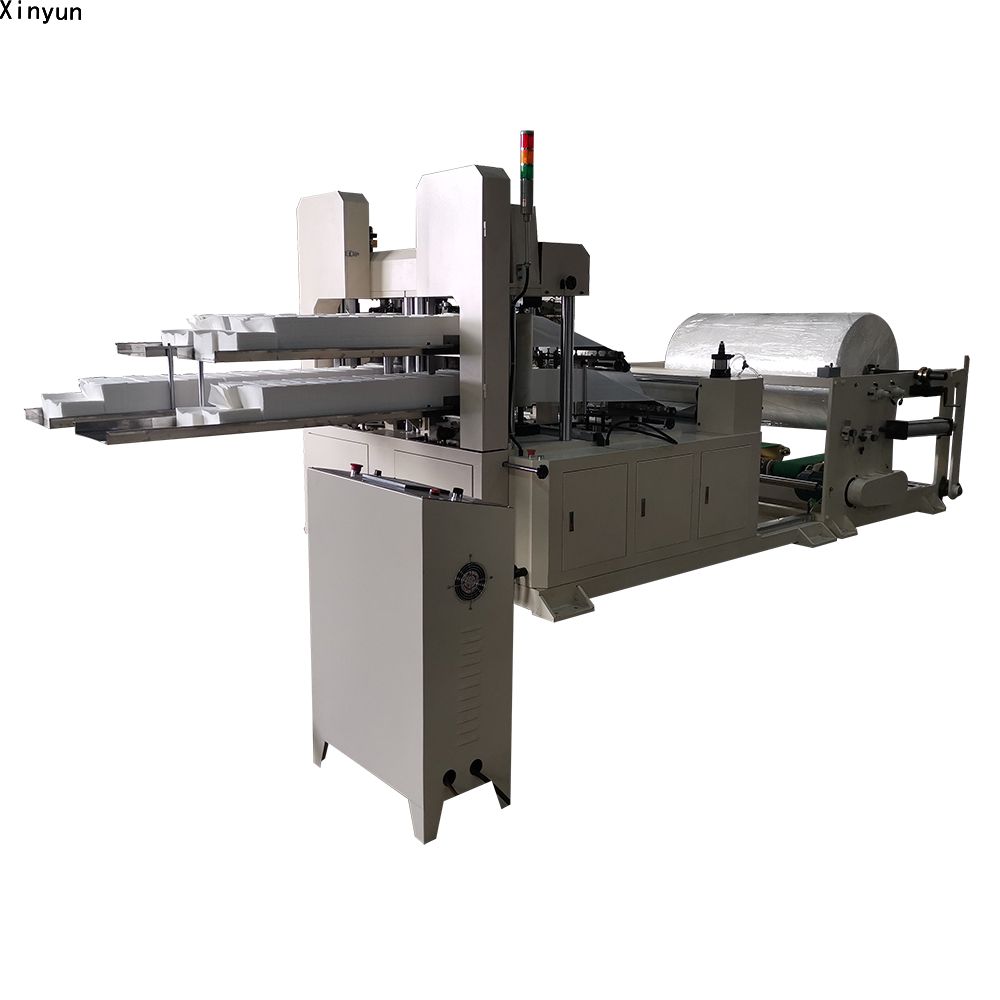

XY-OQ-7000K Napkin Paper Machine series take round type jumbo roll as raw material, process to various kind of fixed specification napkin paper. The machine start from raw material feeding , embossing,folding and cutting. The come out product is two layers ,four lines. Fast speed and high production. The napkin paper product by this machine is hygiene and clear.If you need to produce various kind specification of napkin paper, you need to order the machine. Also, we can make the machine according to customers’ requirements.

Share this:

Technical Parameter

High speed serviette tissue making machine  XY-OQ-7000K

Description of production

XY-OQ-7000K Napkin Paper Machine series take round type  jumbo roll as raw material, process to various kind of fixed specification napkin paper. The machine start from raw material feeding , embossing,folding and cutting. The come out product is two layers ,four lines. Fast speed and high production. The napkin paper product by this machine is hygiene and clear.If you need to produce various kind specification of napkin paper, you need to order the machine. Also, we can make the machine according to customers’ requirements.

Equipment disposition

1)Pneumatic lifter

2) One paper return stand

3)Flat belt (controlled by cylinder)

4)Hand-wheel adjust the tension of unreel.

5)Vertical slitting unit

6) Steel roller against wool roller

7) 2 sets of folding plate

8) Band saw slitting

9)Knife-sharping unit

10) Individual Electrical Cabinet

11) Main motor 5.5kw Frequency-converting (380V50HZ) Cutting paper power 2.2KW

12) Emergency

13) Stop machine automatically when paper broken

14) Stop machine automatically when fault of unreeling.

15) Automatic Accounting (1-999)

16)  Finished product come out with finger.

17) Required power:0.5Mra(Prepared by buyer)

Four decks napkin tissue paper making machine.jpg

Main Technical Parameters:

Speed2400 sheets/min
Size Customized design according to request
Color printing1-4 colors according to request
Embossing devicesteel to woolen
Diameter of jumbo roll1200 mm
Inner diameter of jumbo roll76.2 mm
Power15KW 380V 50Hz

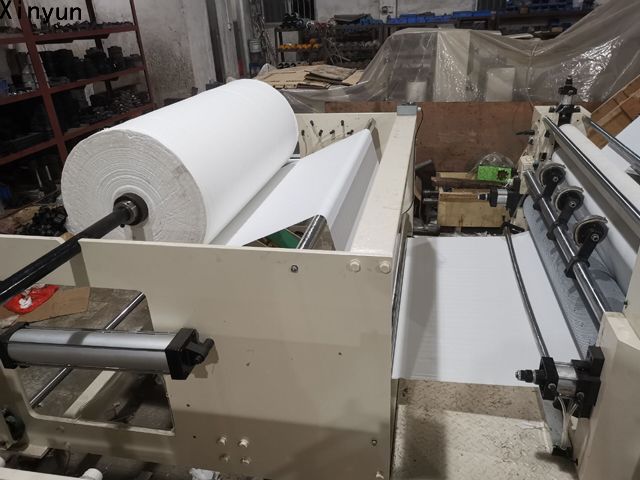

Jumbo roll standard

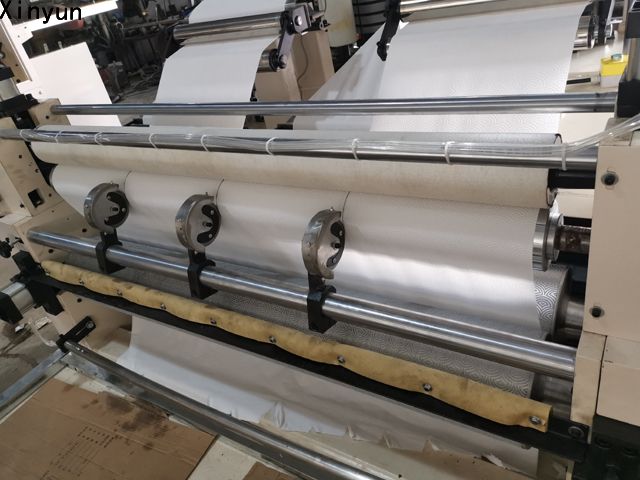

Slitting device

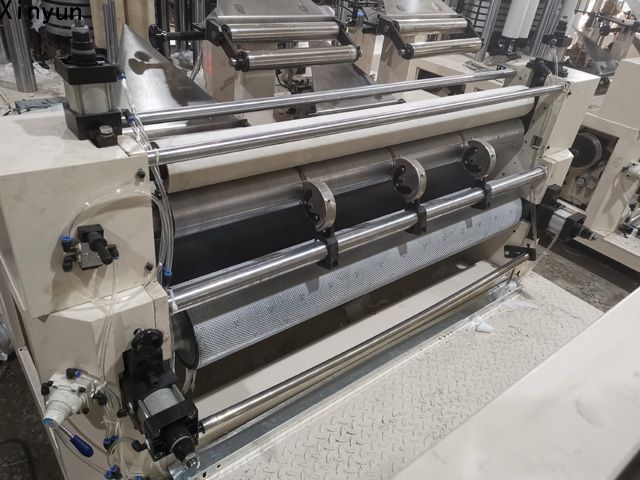

Embossing device

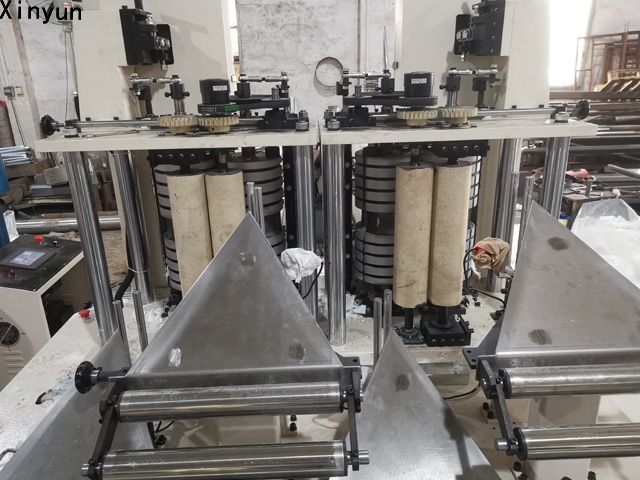

Folding device

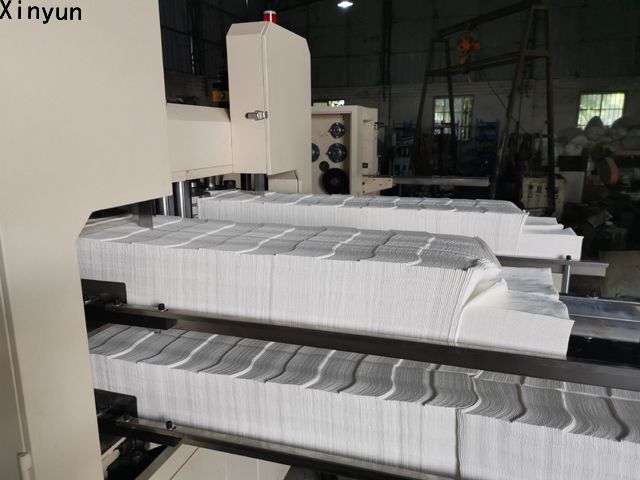

Final products


Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Packing & DeliveryPacking.jpg

Workshop


Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)


2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
