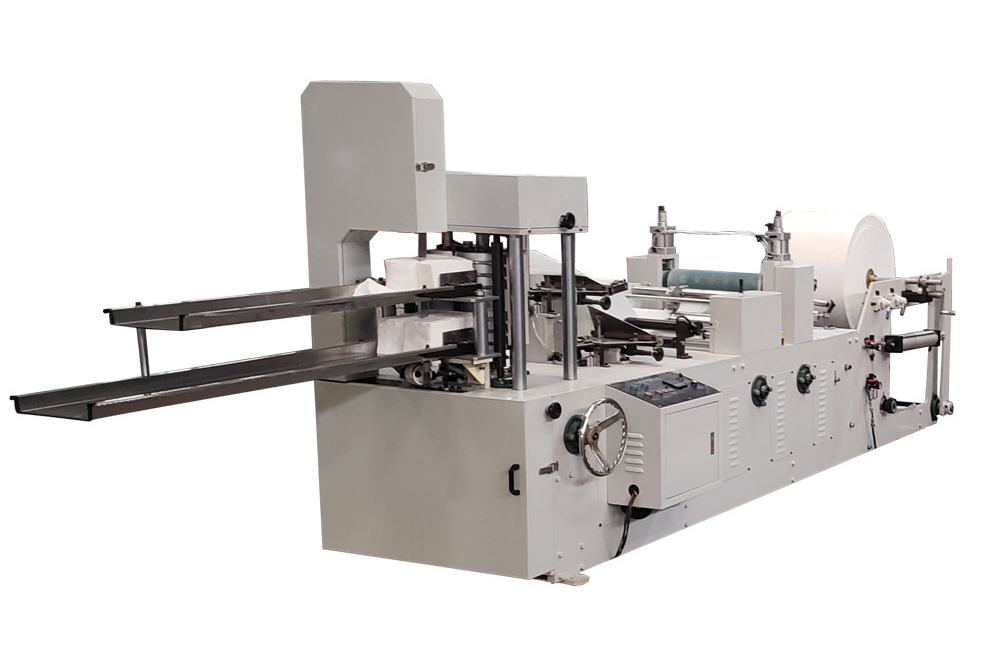

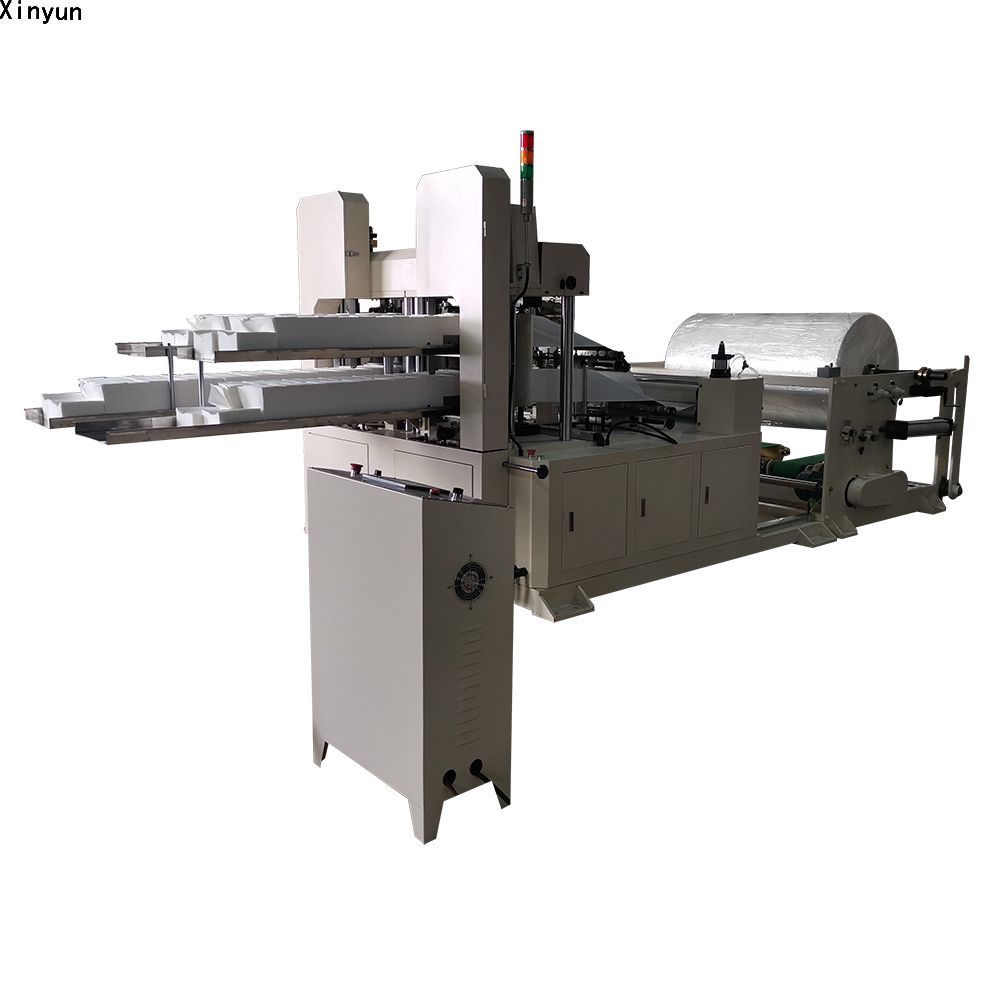

High speed napkin tissue paper making machine    XY-OQ-7000K

Description of production

The XY-OQ-7000K napkin paper machine uses round jumbo rolls as raw material and processes them into napkin or serviette tissues of fixed specifications.

The production process includes raw-material feeding, embossing, slitting, folding and cutting. The standard machine produces two-ply finished products through four output lines, supporting fast operation and high production capacity.

Finished-tissue dimensions, printing colours and other applicable configurations can be customized according to customer requirements.

1. Pneumatic lifter.

2. One paper return stand.

3. Flat belt controlled by a cylinder.

4. Hand-wheel adjustment for unwinding tension.

5. Vertical slitting unit.

6. Steel-to-wool embossing rollers.

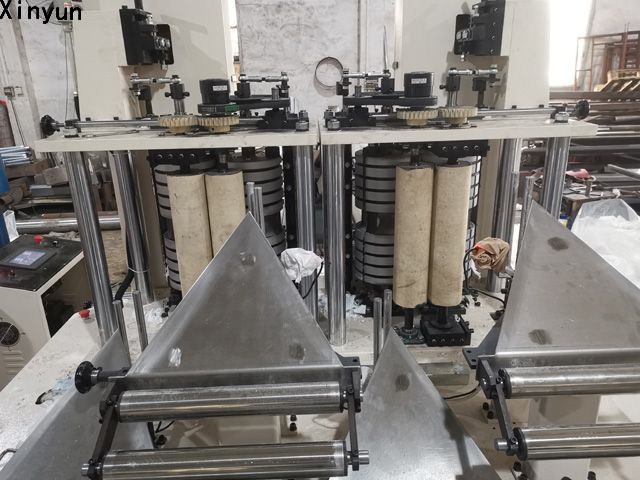

7. Two sets of folding plates.

8. Band saw slitting.

9. Knife-sharpening unit.

10. Independent electrical cabinet.

11. Main motor: 5.5 kW with variable-frequency control, 380 V, 50 Hz; paper-cutting power: 2.2 kW.

12. Emergency stop function.

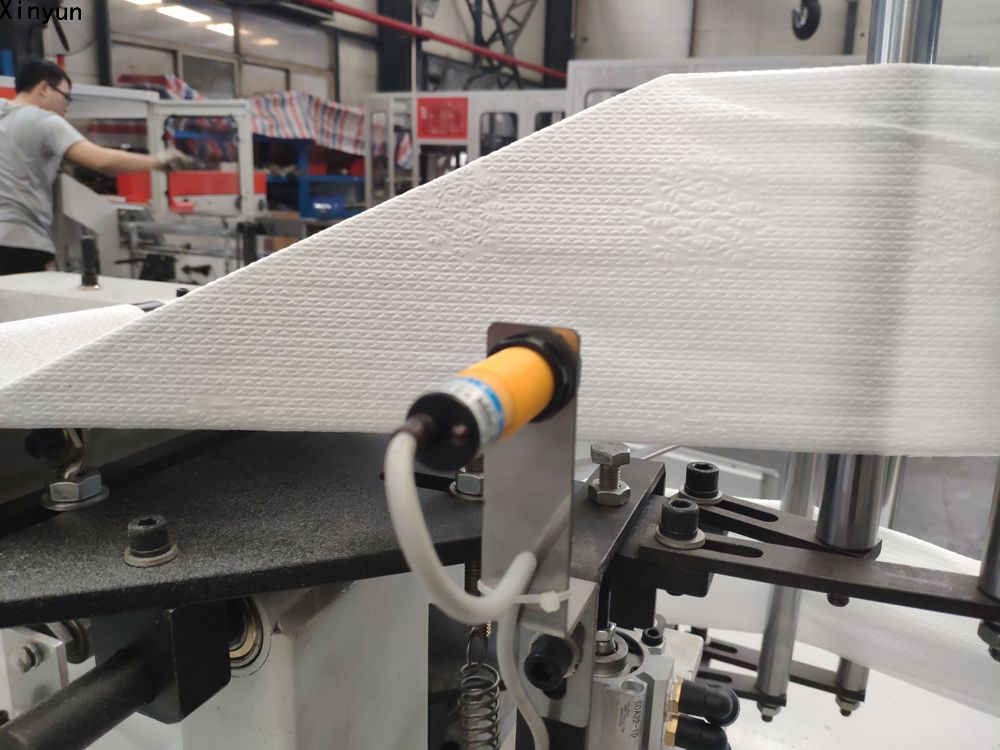

13. The machine stops automatically when the paper breaks.

14. The machine stops automatically when an unwinding fault occurs.

15. Automatic counting from 1 to 999.

16. Finger-type finished-product output.

17. Required air pressure: 0.5 MPa, prepared by the buyer.

Product terminology: Napkin tissue and serviette tissue describe the same finished-product application of the XY-OQ-7000K. This terminology addition does not change the machine’s technical parameters.

Parameter note: The parameters above follow the existing XY-OQ-7000K high-speed napkin tissue paper making machine display page. Actual operating speed depends on tissue size, paper quality, number of printing colours, embossing configuration and production conditions.

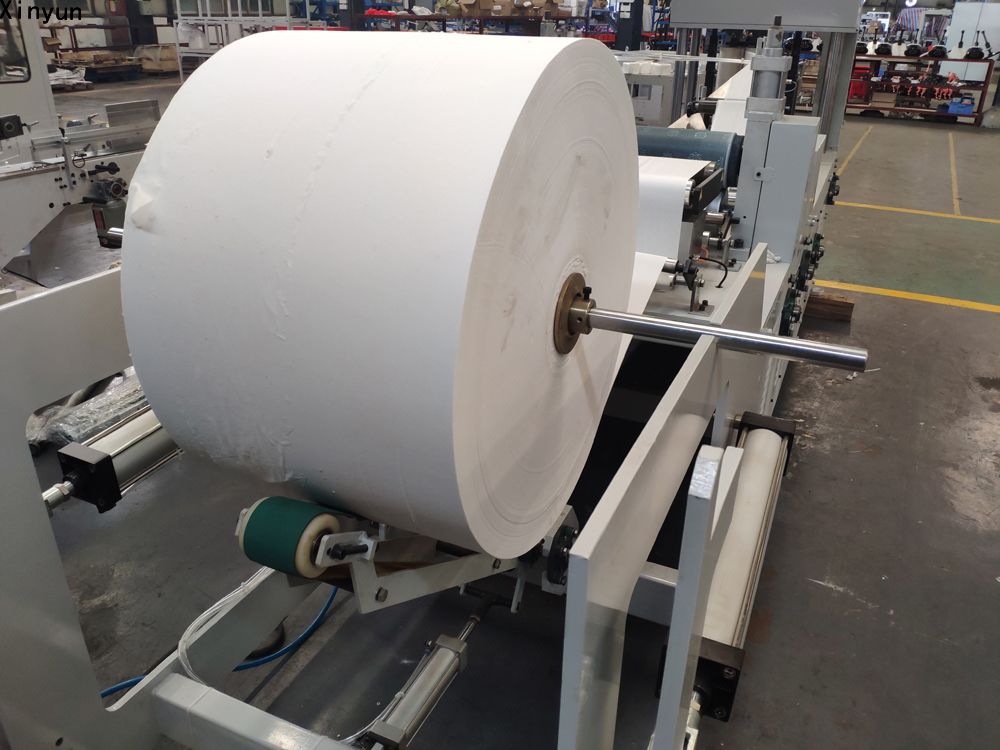

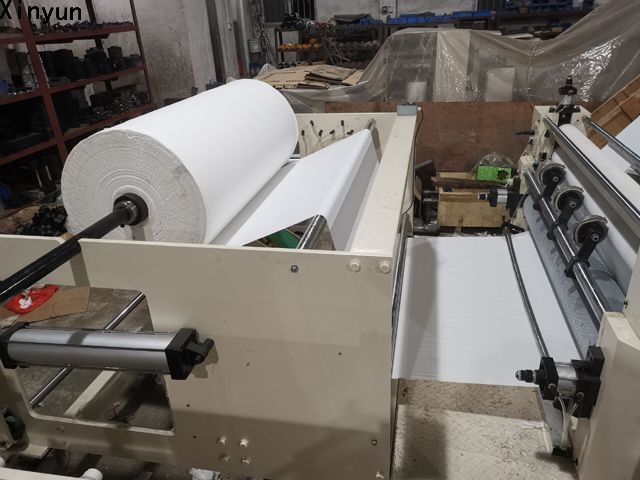

Jumbo roll standard

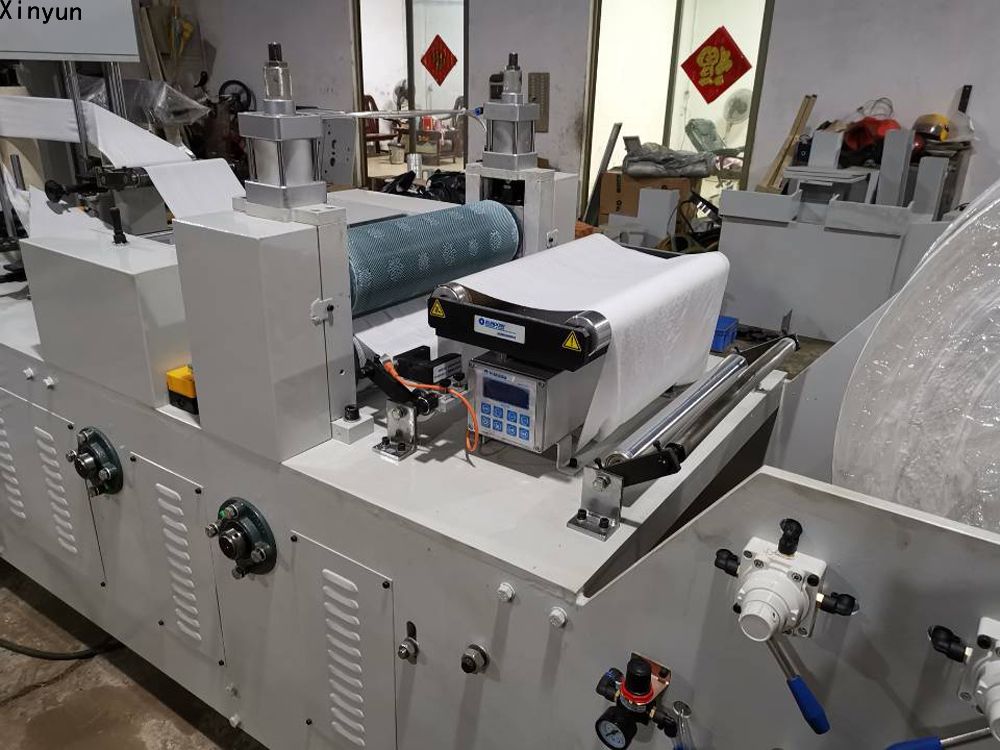

Printing device

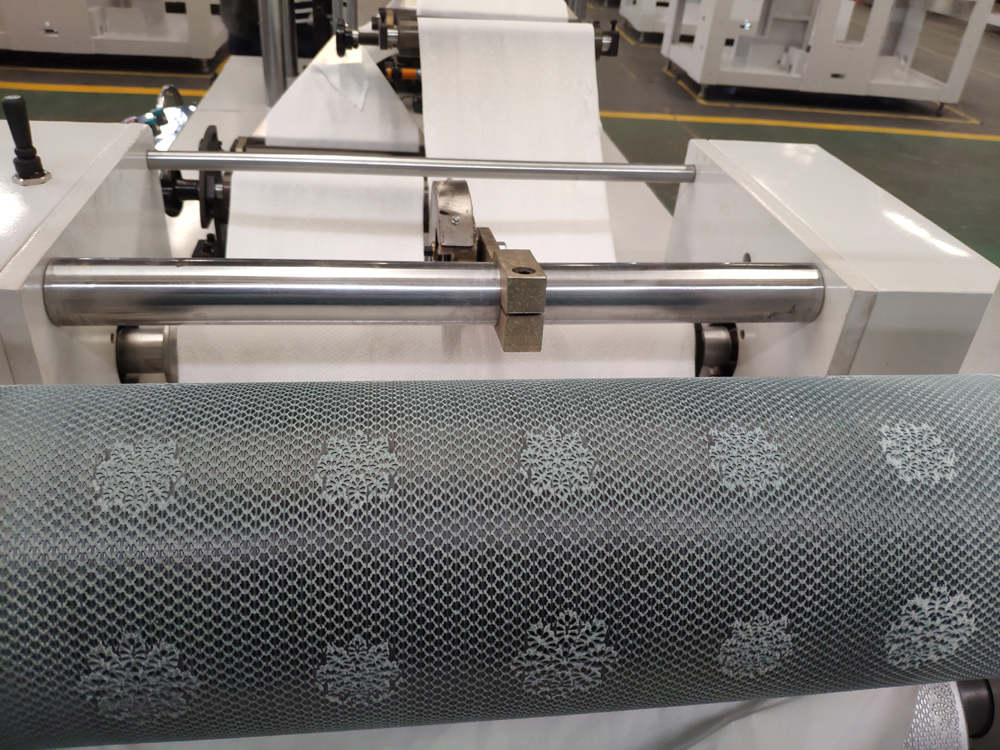

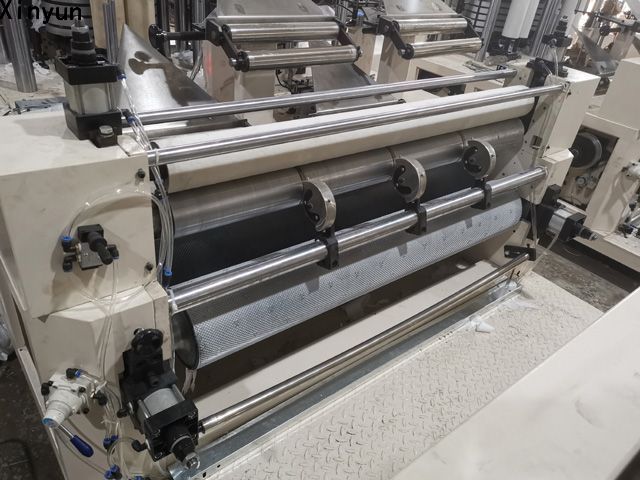

Embossing device

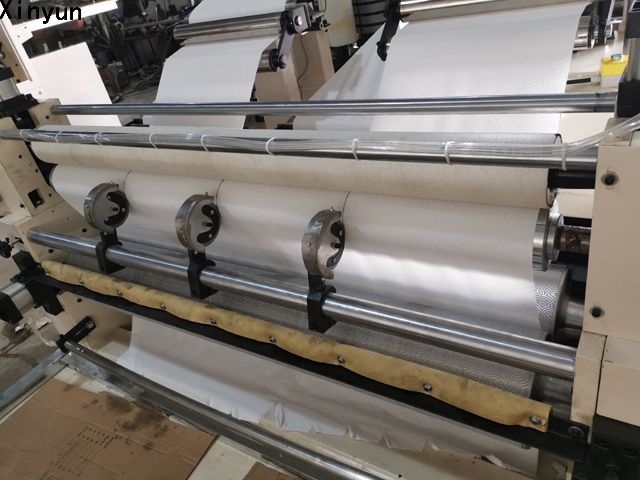

Slitting device

Folding device

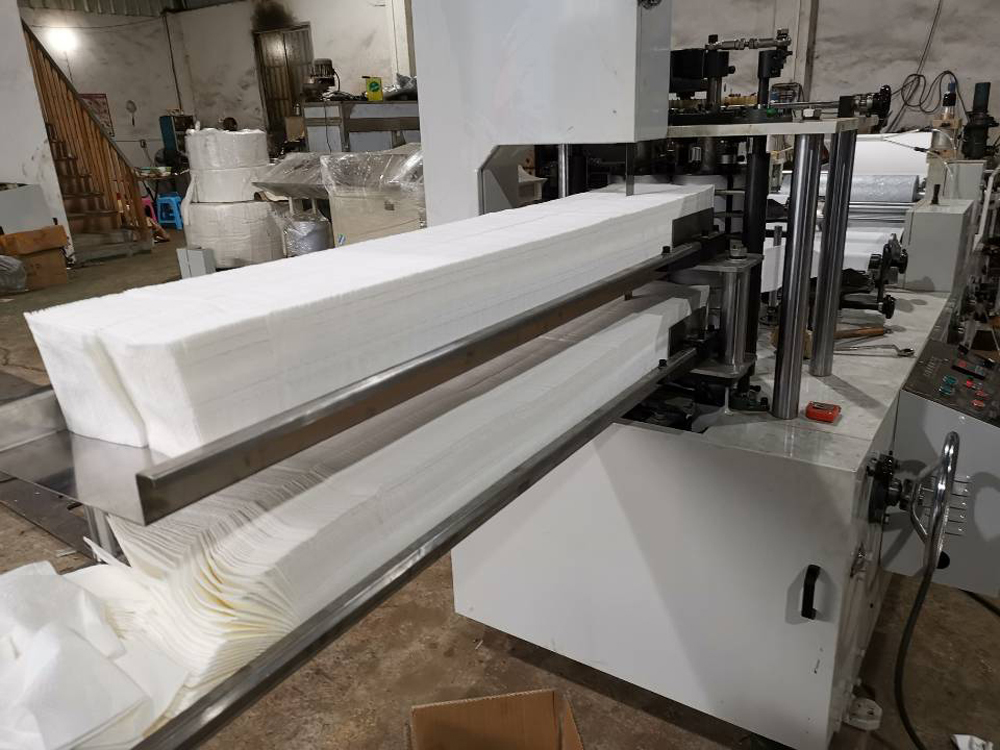

Final products
