Technical Parameter

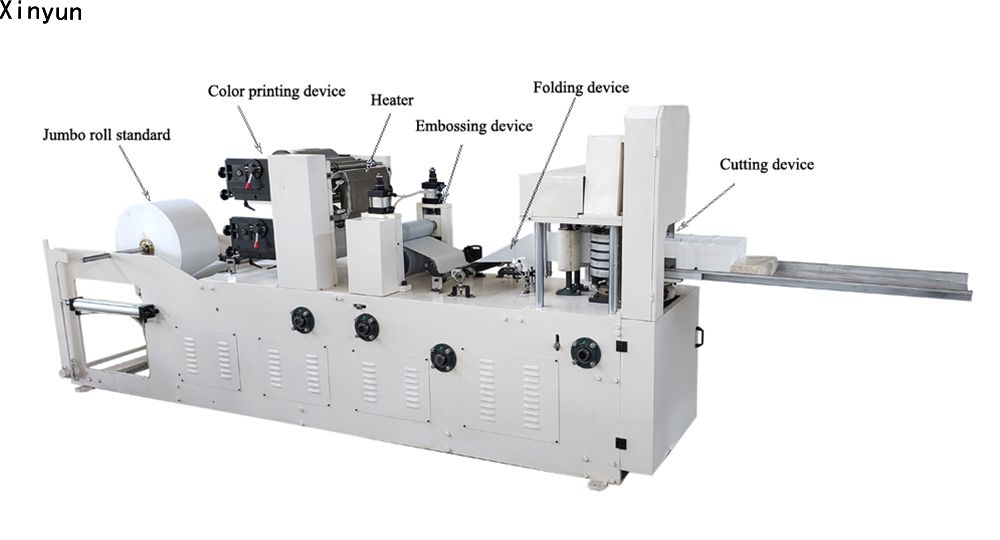

Automatic 4 colors printing napkin tissue making machine XY-OQ-7000A
XY-OQ-7000A multi-colors napkin paper machine print various kind of colors and design on cut raw material, and to be square and rectangle napkin after embossing, folding, counting and cutting.
Main feature:
1. Adopt flexible printing unit, high procession ceramic anilox roller, making the water ink equally spread and print out extract and stereo pattern.
2. Raw material through synchronous belt and come into calendaring unit, and into embossing unit. There is tension unit between raw material and calendaring, raw material and embossment.
3. Folding wheel automatic stop machine protection unit.
4. Automatic rectify system.
5. Automatic constant temperature drying system.
6. Raw material broken protection unit. Automatic speed down unit when raw material run out. Folding roller stop protection unit.
7. Water ink circulation system.
8. Full-automatic unreel control system: track the speed of main machine by computer, transmit to servo system, the servo system convey paper to printing system accurately according to the order of computer and make perfect product.
Main Technical Parameters:
Speed | 600 sheets/min |
Folding type | 1/2,1/4,1/6 and 1/8 |
The width of jumbo roll | 200-400 mm |
The diameter of jumbo roll | 1200 mm |
Jumbo Roll Material Qualify | 1-2 layers, 18-25g/m2. |
Controlling System | Frequency control |
Way of printing | Flexo printing. |
Material of printing | Water-solubility ink |

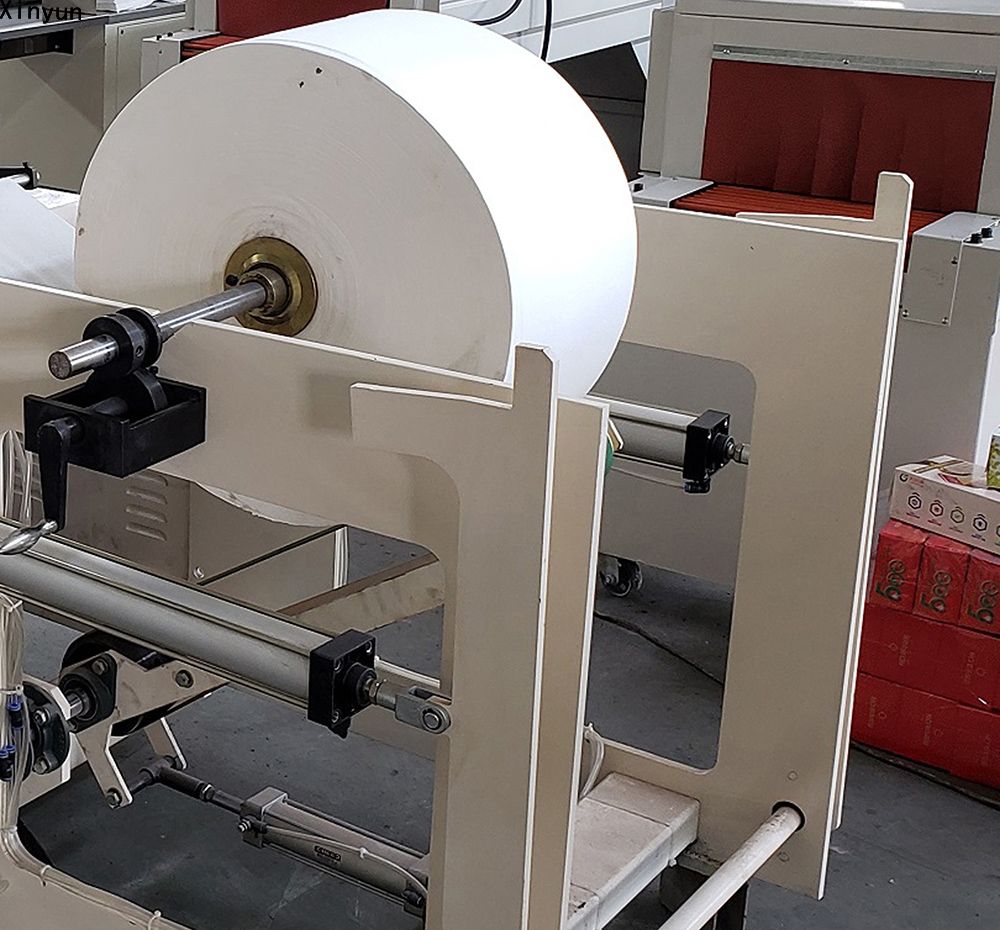

Jumbo roll standard

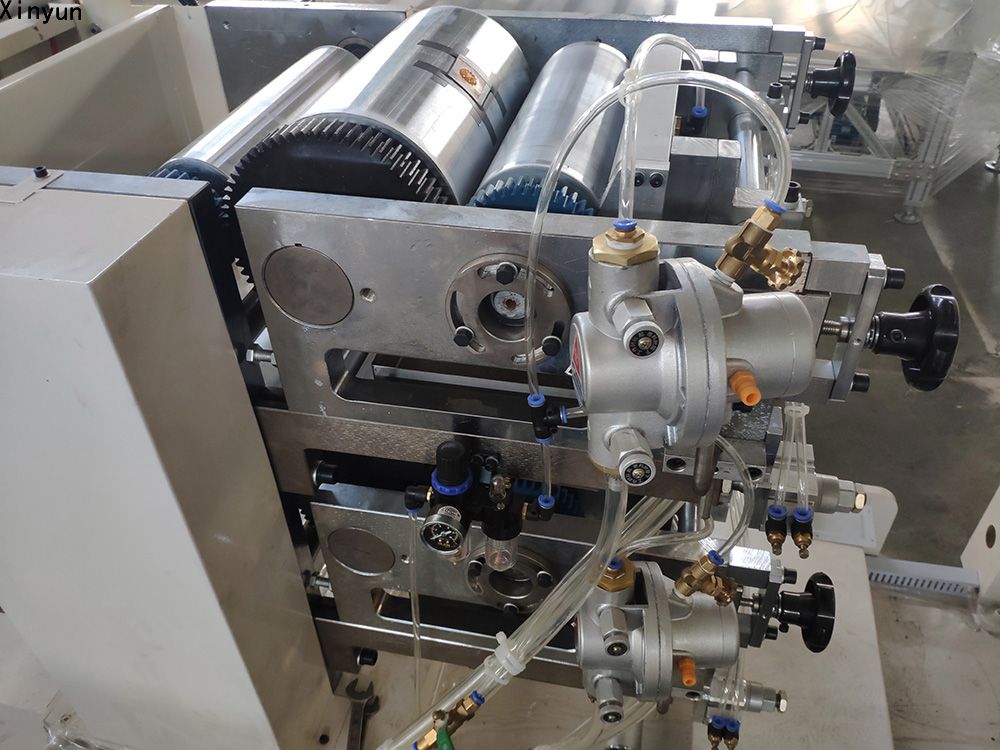

Printing device
Embossing device

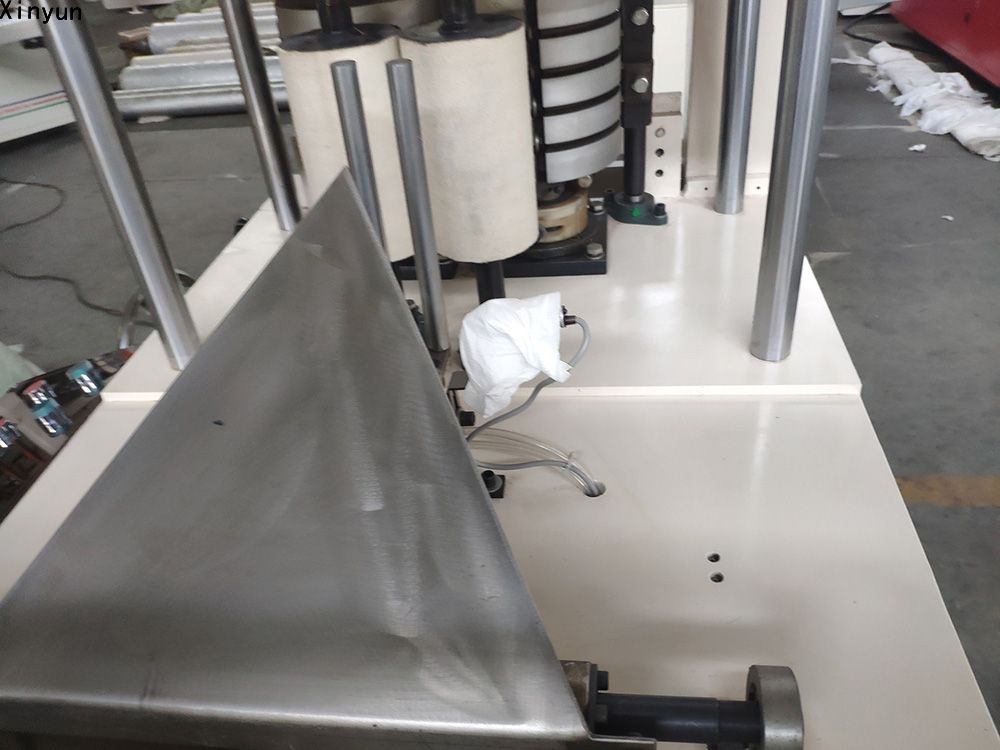

Folding device

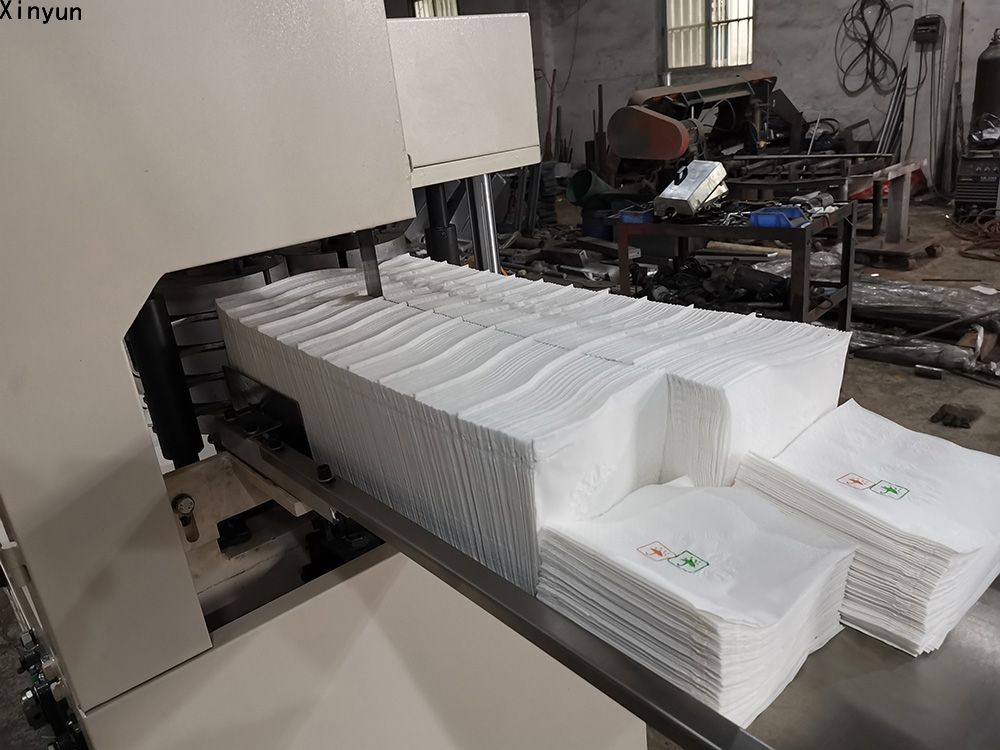

Final products
Our service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Packing & Delivery
Workshop
Our company
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
