Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished  products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best  choice of the production of tissue products.

Share this:

Technical Parameter

Automatic soft packing facial tissue production line XY-GU-A-B

Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished

products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best

choice of the production of tissue products.


XY-GU-20A Automatic Box Drawing Facial Tissue Machine

Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished

products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best

choice of the production of tissue products. _20180409141143.jpg

XY-GU-20A Automatic facial tissue making machine working flow :The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and reciprocal folded into a sheet of rectangular or square facial tissue. This machine adopts independent servo motor drive ,and automatic paper tension control. It features of high speed ,nice folding and easy operation .

1. Configuration pneumatic embossing, pneumatic separation. (embossing customer selected)

2. Wallboard rack and fast machine running stability is excellent.

3. Pneumatic jumbo roll loading, pneumatic paper driving , Stepless speed ratio of adjustment ,and web tension control.

4. Equipped with roots type vacuum pump for stable running of the machine

5. Make various products width as requirement .

6. Equipped with edge embossing unit to keep the two plies together.

7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.

8. The web can be threaded on the machine by the two jog buttons, It’s more safety and easier to thread the web.

Main technical parameter:

Machine model

XY-GU-20A

Folded size of finished products

100*(120-210)±2mm

Unfold size of finished products

200*210±2mm

The width of jumbo roll paper

1400mm

Diameter of jumbo roll paper

1200mm

Diameter of jumbo roll paper inner core

76.2mm

Daily Output (8 hours)

2000-6000Kg

Embossing unit

Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation

Slitting unit

Pneumatic slitting

Power

5.5KW Main motor

1.5KW(2 sets) Jumbo roll paper stand

Vacuum suction unit

18.5KW Fan

Pneumatic system

3 HP air compressor ,mini pressure 5kg/cm2PA

Driving system

Timing belt

XY-GU-281 Single Channel large roundabout cutting machine

Automatic facial tissue low saw cutting machine.jpg

Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.

Main technical parameters

Designation

Parameter values

The length of unfinished products

minimum 500mm(or, mini 5lines)

The Height of finished product

15~120mm

Operating speed

20~120cut/min

Round blade outer diameter

Φ610mm

Paper cutting circular knife top speed

980R/min

Finished products specification

70~300mm

Paper width

70~110mm

Cutting Length

70~300mm

Left-over Length

20~65mm

Power

11KW

Power supply

380V 50Hz

Air pressure

0.5~0.8MPa

Machine Size

4600*1700*2500mm

weight

2300~2600kg

brake

Parameter setting (auto/manual)

Stepping sharpening knife

Parameter setting (auto)

Pneumatic sharpening knife

Parameter setting (auto/manual)

Blow air

without

The total pressure switch

Value (not)

Human-computer interface

DELTA (or selected by customer)

frequency changer

DELTA

Servo Drive

DELTA

XY-BT-298 Full Automatic Three-dimensional Facial Tissue Packing Machine Automatic facial tissue napkin paper packing machine.jpg

Main technical parameters

Technical Specifications

Description

Remark

Scope of application

Facial tissue, hand towel, napkin tissue


Equipment feeding mode

ASF Full automatic

Five sections of intelligent flexible feeding mode

Max. design mechanical speed

Max. 100 bags/min

Related to specification of packing

Max. stable operation speed

70 bags/min

Related to specification of packing

Tissue length range (finished product)

120 mm- 210 mm

Over this size can be customized

Tissue height range(finished product)

40 mm- 100 mm

Tissue width range(finished product)

90 mm- 105 mm

Spare parts for change size

3 sets

Standard configuration quantity, the accurate specifications drawn up by the user

Machine size(L*W*H)

4600*3620*1770mm

Standard size

Machine weight

About 3000KG


Packaging materials

CPP film


Film Thickness

0.04mm-0.055mm


Max film diameter

400 mm

Over this size can be customized

Diameter of film core

76mm

In accordance with international standards

Max film width

340mm

Over this size can be customized

Air compressor

Minimum air pressure 5MPA

Equipped by user

Power supply

380V/50HZ

Following China's electric power standard

Total drive power

4.8 KW

The sum of main motor, servo motor, Sum of speed regulating motor power

Total heating power

4.6 KW

Side seal, side sealing part of heating power combined

Voltage variation

+/-10%

In accordance with international standards

I/O Input/ I/O

24VDC

Electrical control system control circuit input

I/O Output/ I/O

24VDC

Electrical control system control circuit output

Equipment motion control mode

Three axle servo and axle location control

The electronic CAM motion curve

Equipment main transmission mode

20crmnti mechanical-cam+The electronic CAM drive


Machine standard colour

Gray, International color RAL 7032

The international color card color number RAL7032

Packaging style

Three-dimensional wrapping

vertical sealing first and then two side sealing

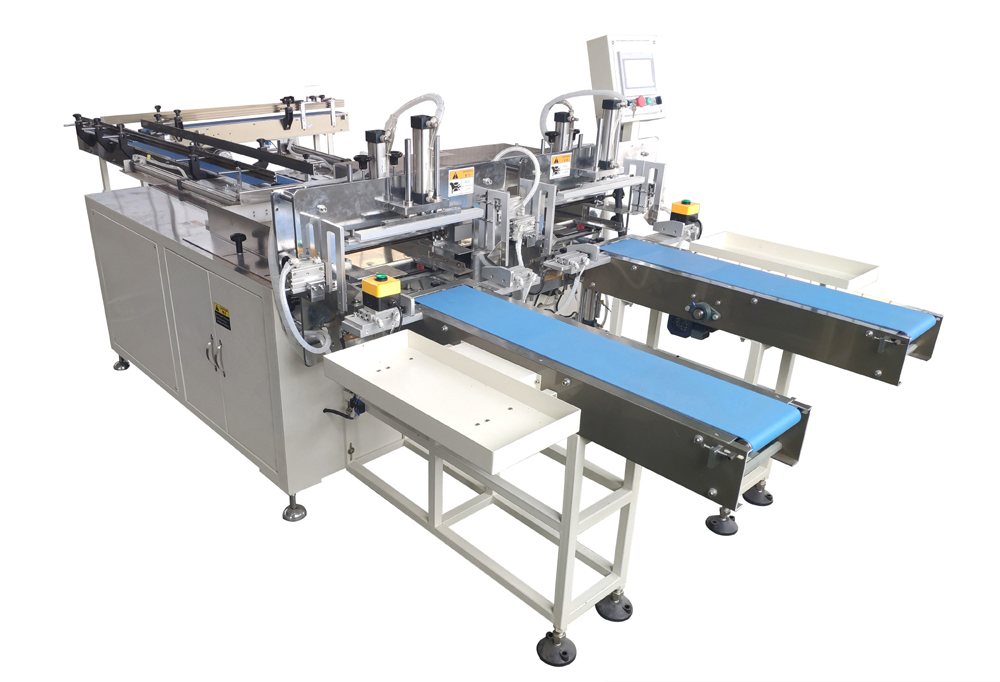

XY-GU-26B Semi automatic multi bags tissue paper middle packing machine

Semi automatic facial paper bundle packing machine.jpg

This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyer belt. This machine ssemble paper-feeding, bagging, sealing and cuting in one body. Adopt PLC, liquid crystal text display parameter, easy to set, temperature controll accuracy. Package sealing is good trimming. It is a semi-automatic machine that only need the worker to bagging.

Speed

10-15 bags/min

Packing dimension

135-190*90-100*60-80 mm( the width will be selected by customer)

Power

1.2 Kw 380V 50Hz

Air supply

0.6 Mpa (prepared by buyer)

Overall size

3900*1200*1500 mm

Weight of machine

600 Kg
