Technical Parameter

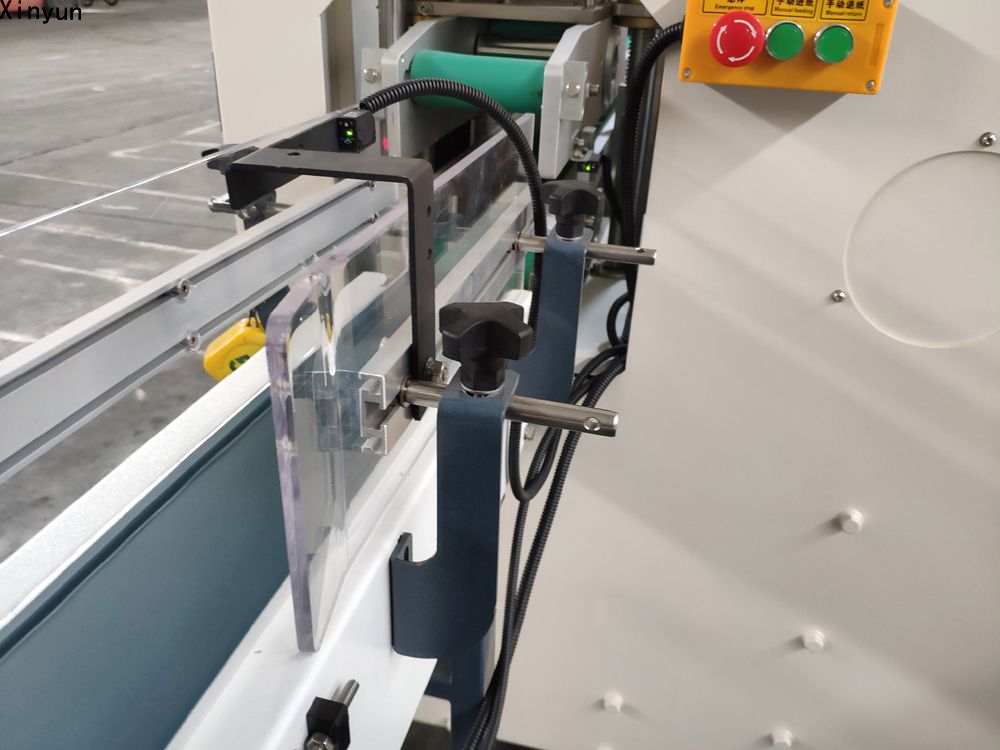

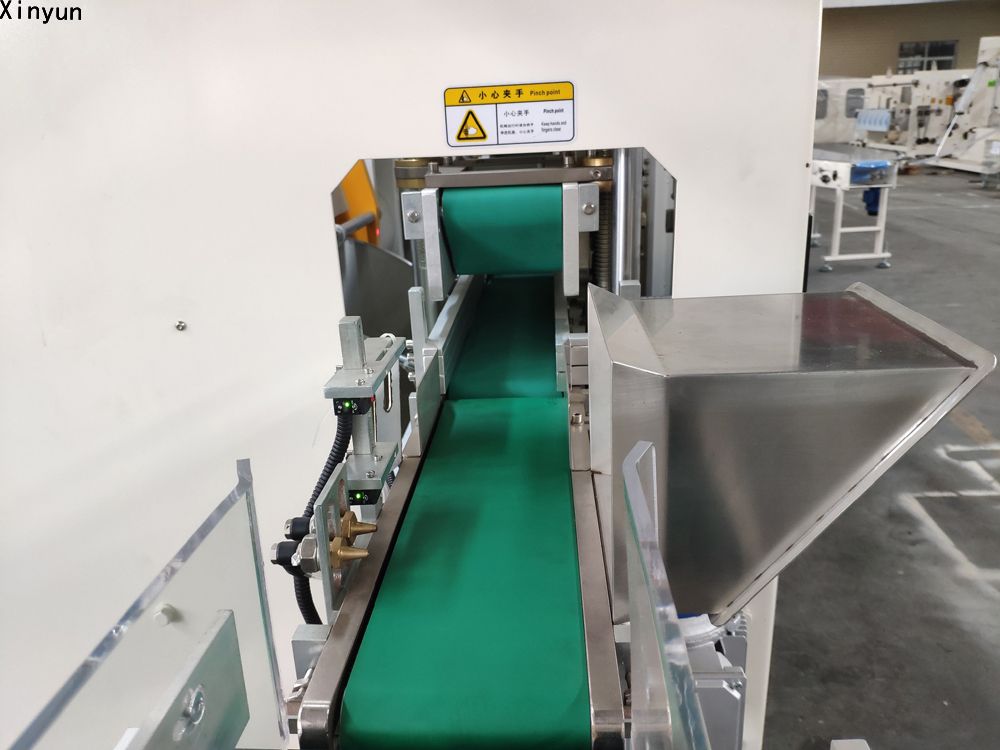

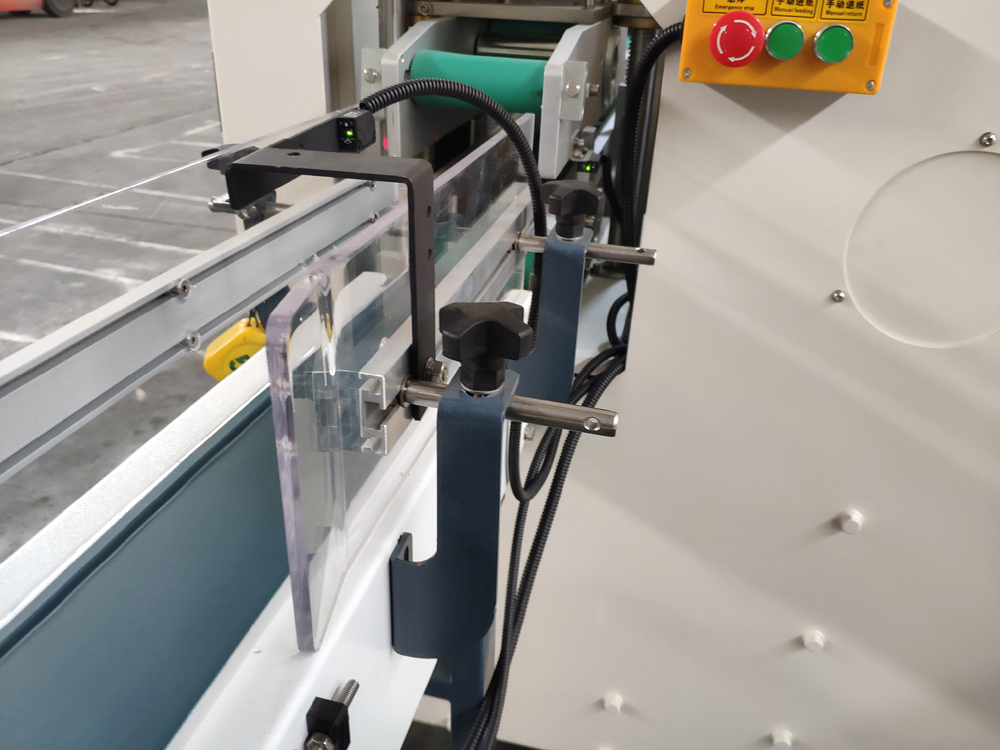

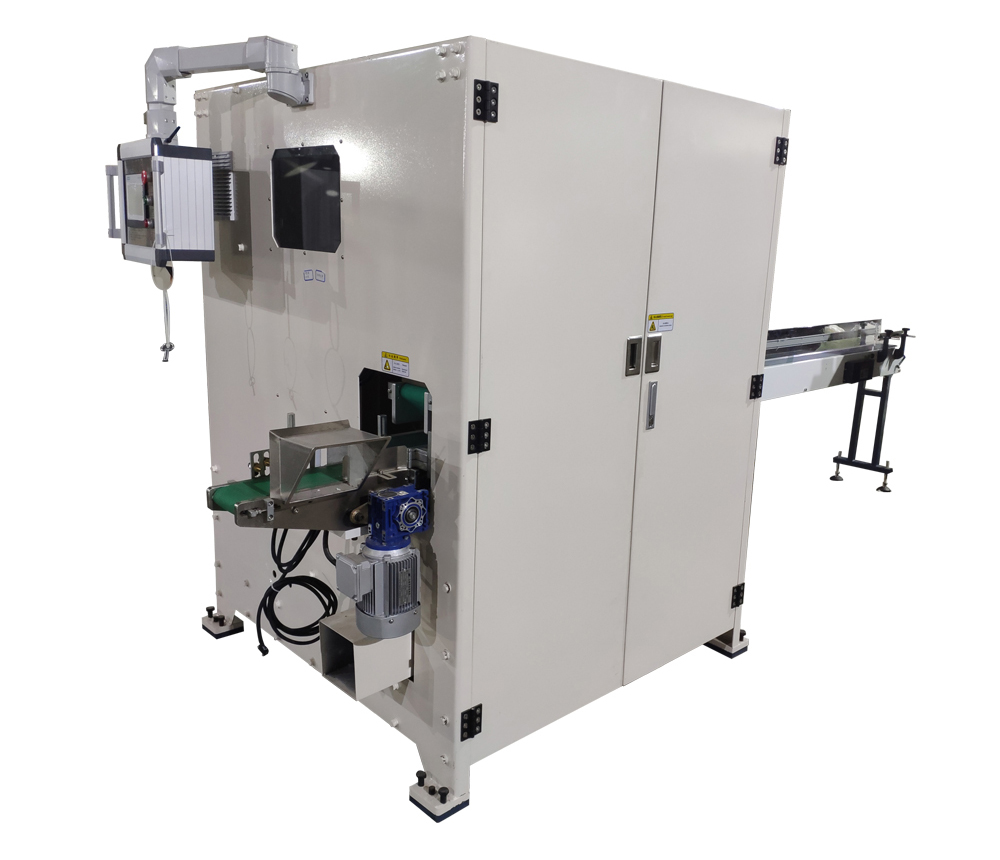

Automatic facial tissue Log Saw Cutting Machine XY-GU-281
Technical performance characteristic：
Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Main technical parameters
Designation | Parameter values |
The length of unfinished products | minimum 500mm(or, mini 5lines) |
The Height of finished product | 15~120mm |
Operating speed | 20~120cut/min |
Round blade outer diameter | Φ610mm |
Paper cutting circular knife top speed | 980R/min |
Finished products specification | 70~300mm |
Paper width | 70~110mm |
Cutting Length | 70~300mm |
Left-over Length | 20~65mm |
Power | 11KW |
Power supply | 380V 50Hz |
Air pressure | 0.5~0.8MPa |
Machine Size | 4600*1700*2500mm |
weight | 2300~2600kg |
brake | Parameter setting (auto/manual) |
Stepping sharpening knife | Parameter setting (auto) |
Pneumatic sharpening knife | Parameter setting (auto/manual) |
Blow air | without |
The total pressure switch | Value (not) |
Human-computer interface | DELTA (or selected by customer) |
frequency changer | DELTA |
Servo Drive | DELTA |
Our service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

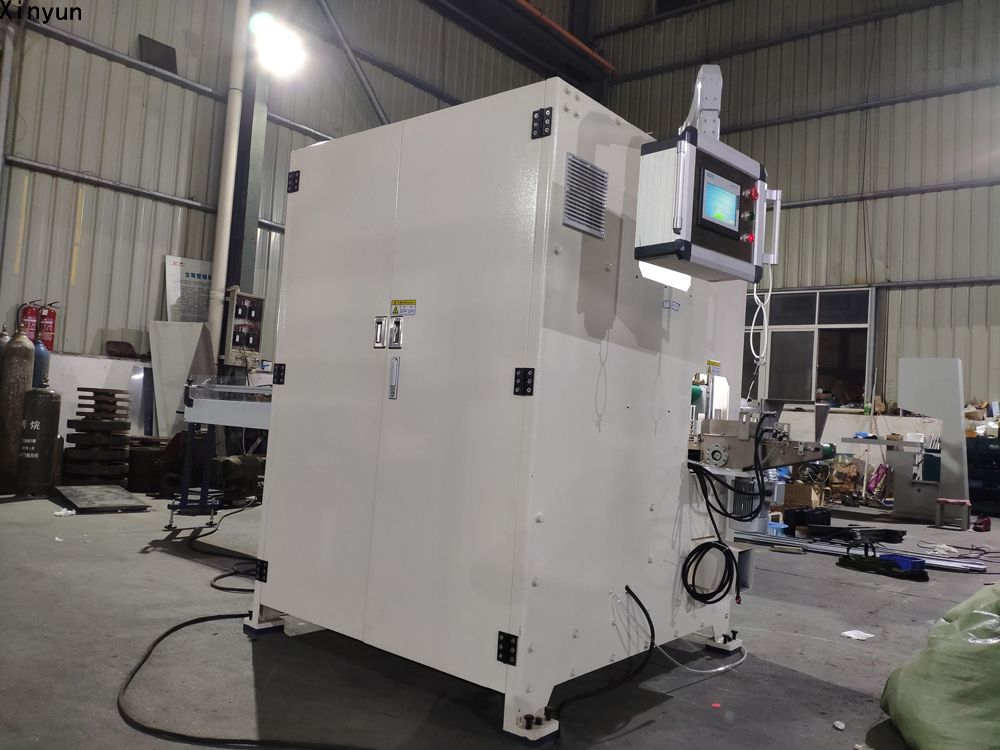

Workshop
Our company
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:

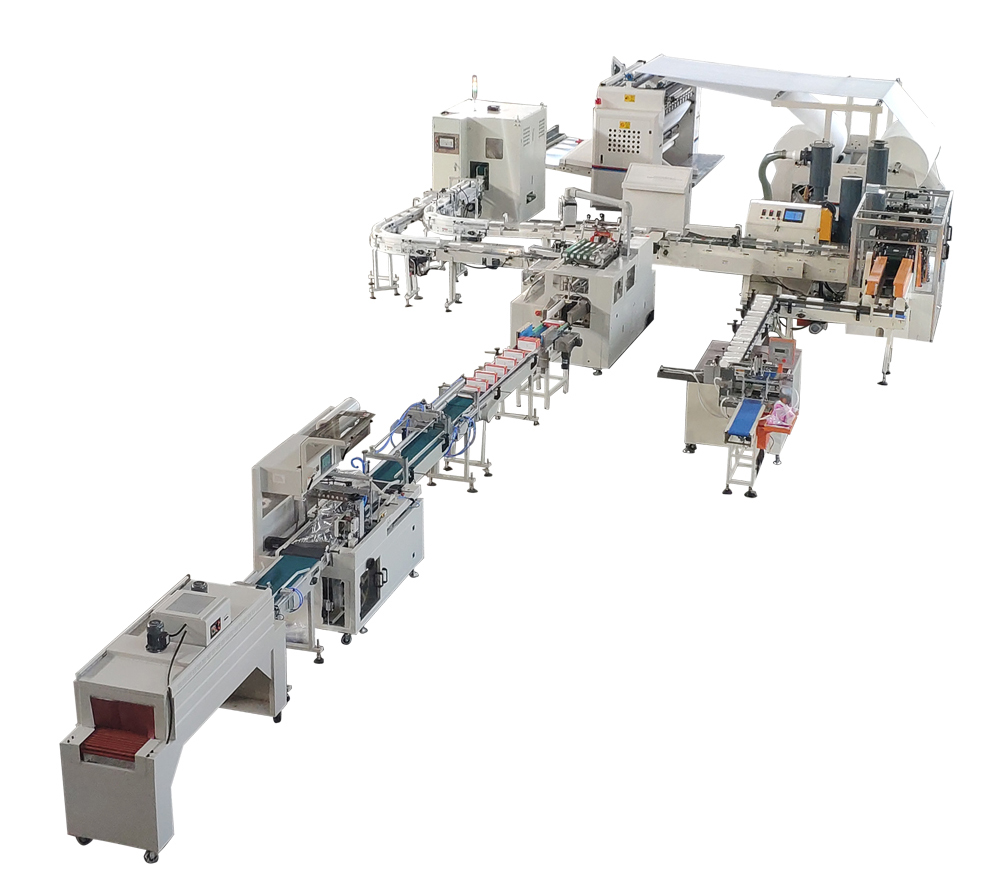

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

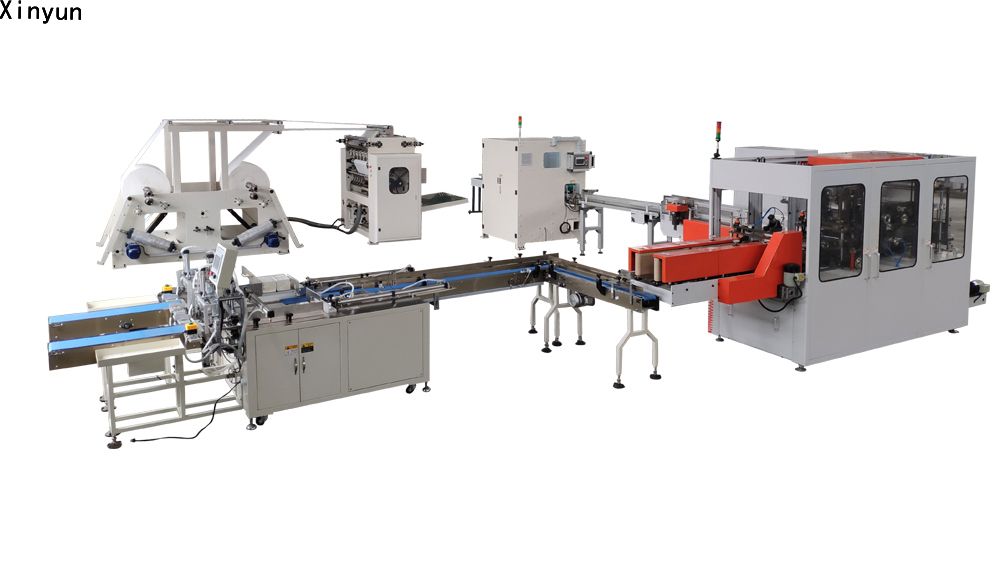

3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
