Low price V fold hand towel paper facial tissue machine

Low price V fold hand towel paper facial tissue machine XY-BT-288

V folding hand towel machine process paper material after embossing, cuting off, interfolding become V fold, The products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.

Function and characteristics

1. Production speed :（60~100）m/min

2. Embossing unit: Steel to steel embossing unit.

3. Pneumatic broken paper automatic separation, convenient wear paper.

4. Using synchronous belt transmission, transmission ratio is accurate, low noise.

5. Base paper adapt range: 33-45g/m2 (single ply)

6. To be order two layers glue lamination .(Optional)

Automatic V fold hand towel paper making machine.jpg

Main Technical Parameters:

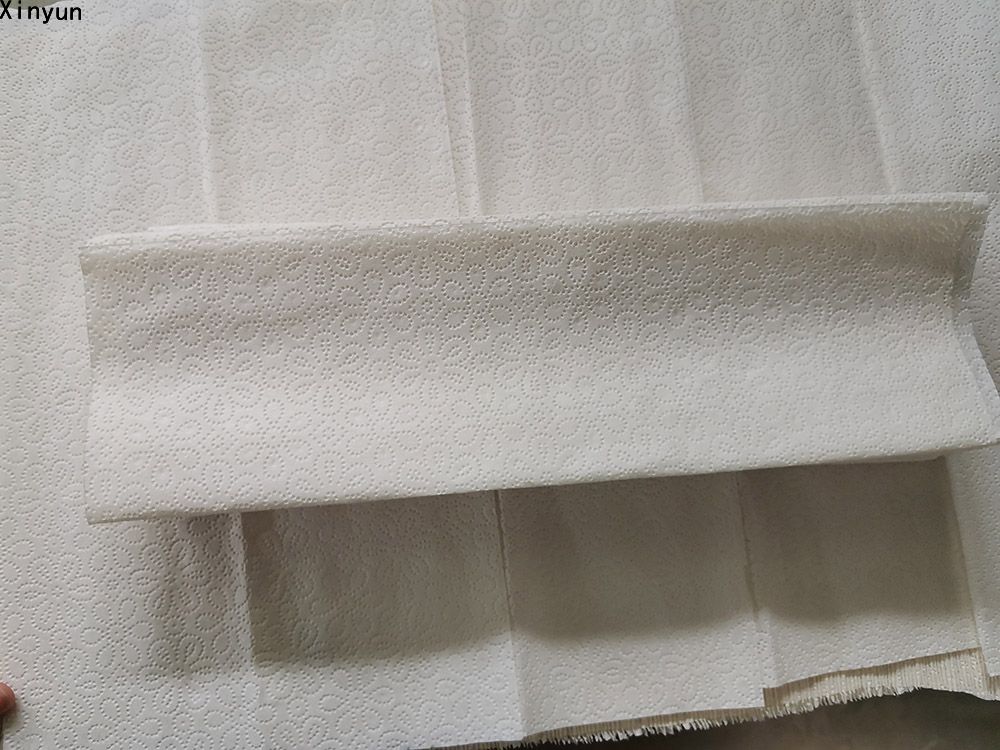

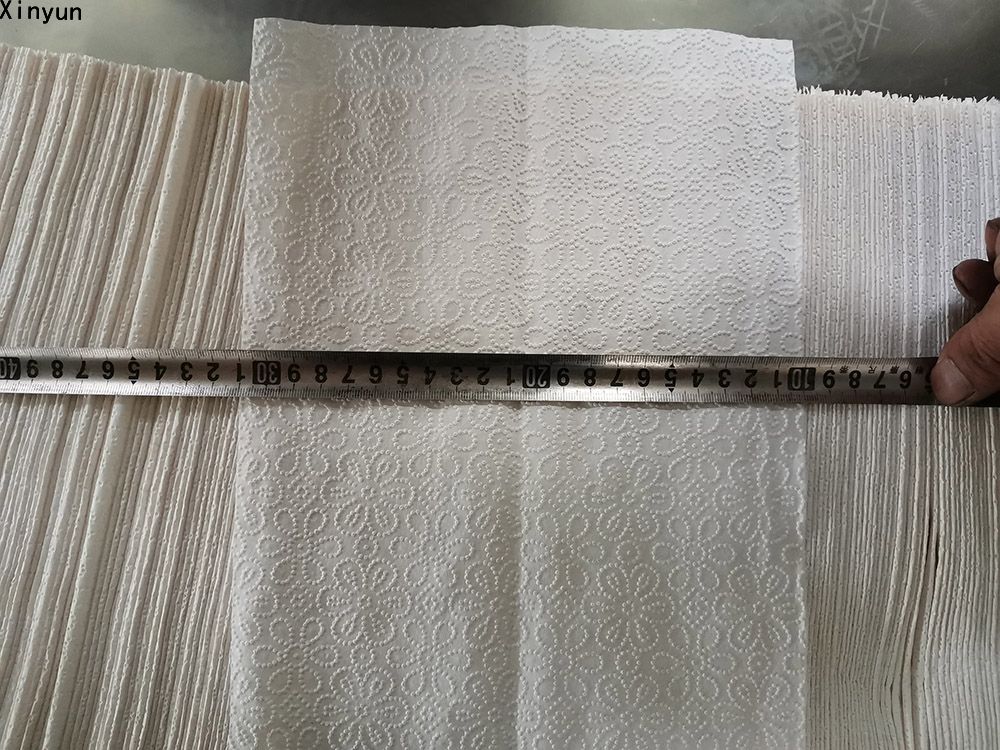

Unfold size of finished products	210（L）X230±2mm Other sizes are available
Folded size of finished products	105（L）X230±2mm Other sizes are available
Raw material inner core diameter	76.2mm (Other sizes are available)
Production speed	0-100m/min (Depending on the machine model )
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding type	Vacuum suction “ V” fold
Transmission unit	Timing belt and flat belt
Counter	Ink marked
Embossing unit	Steel to steel
Slitting unit	Pneumatic dot slitting
Pneumatic system	3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer)
Power	380V 50Hz

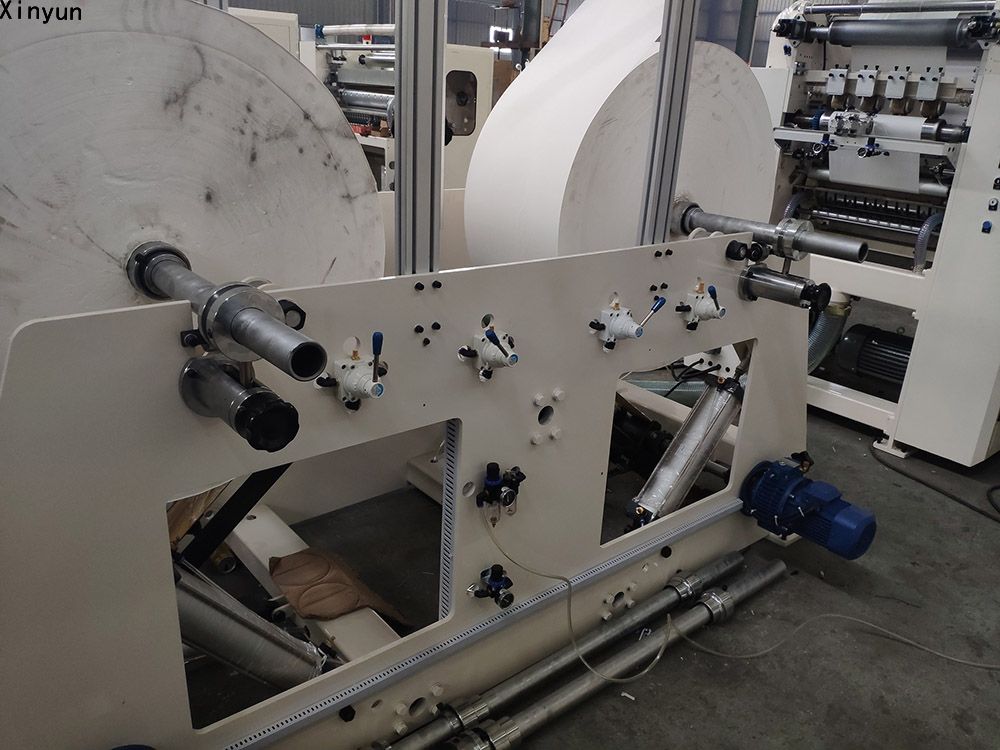

Jumbo roll standard

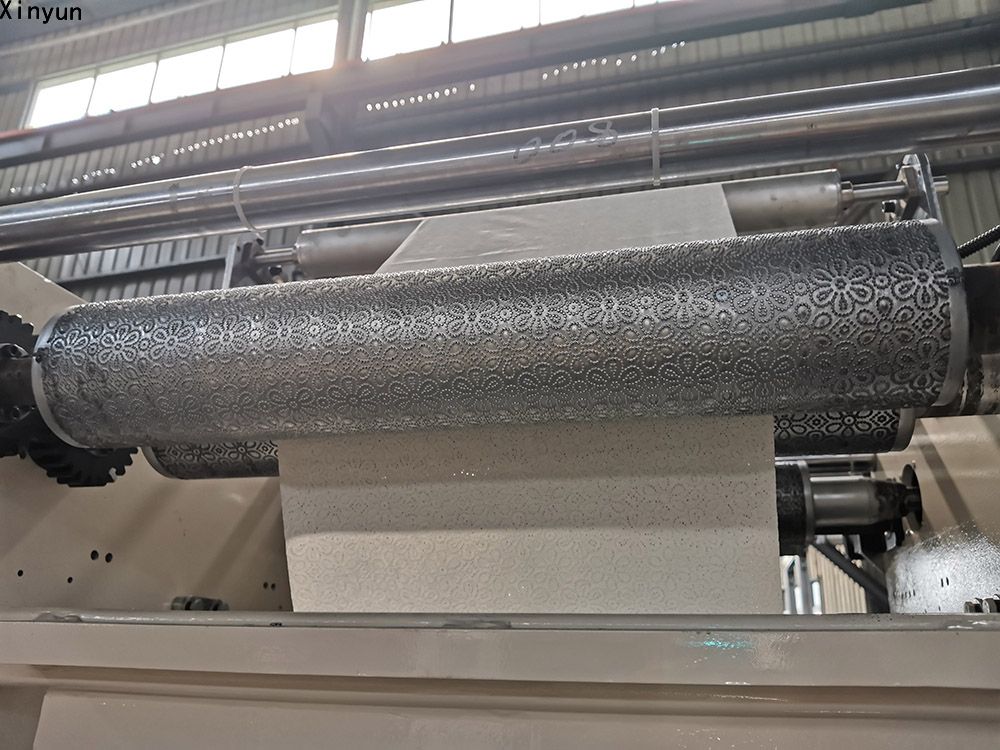

Embossing device

Folding device

Slitting device

Countting device

Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Packing & Delivery

Workshop

Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
