Technical Parameter

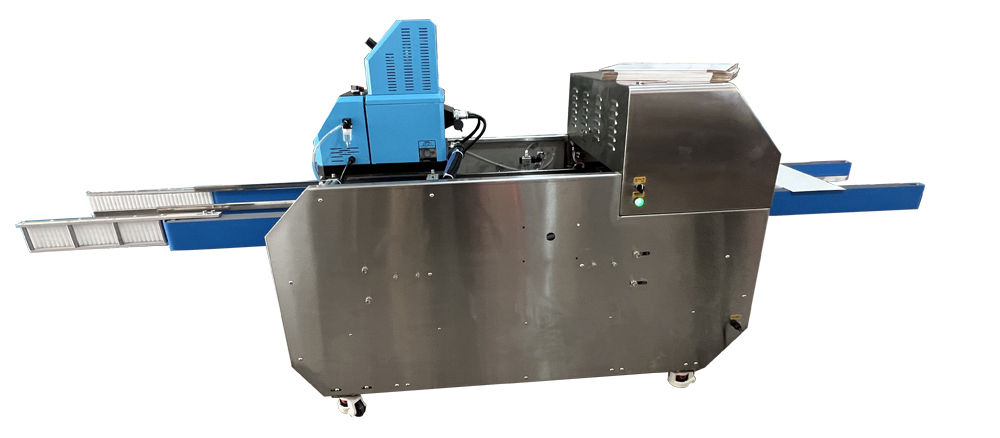

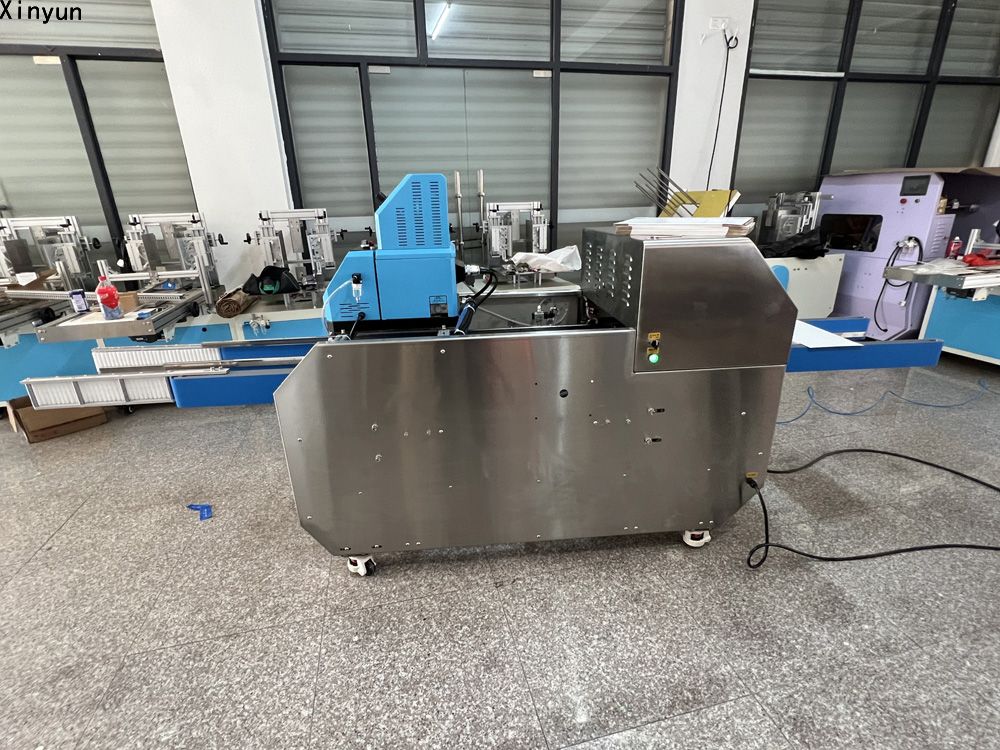

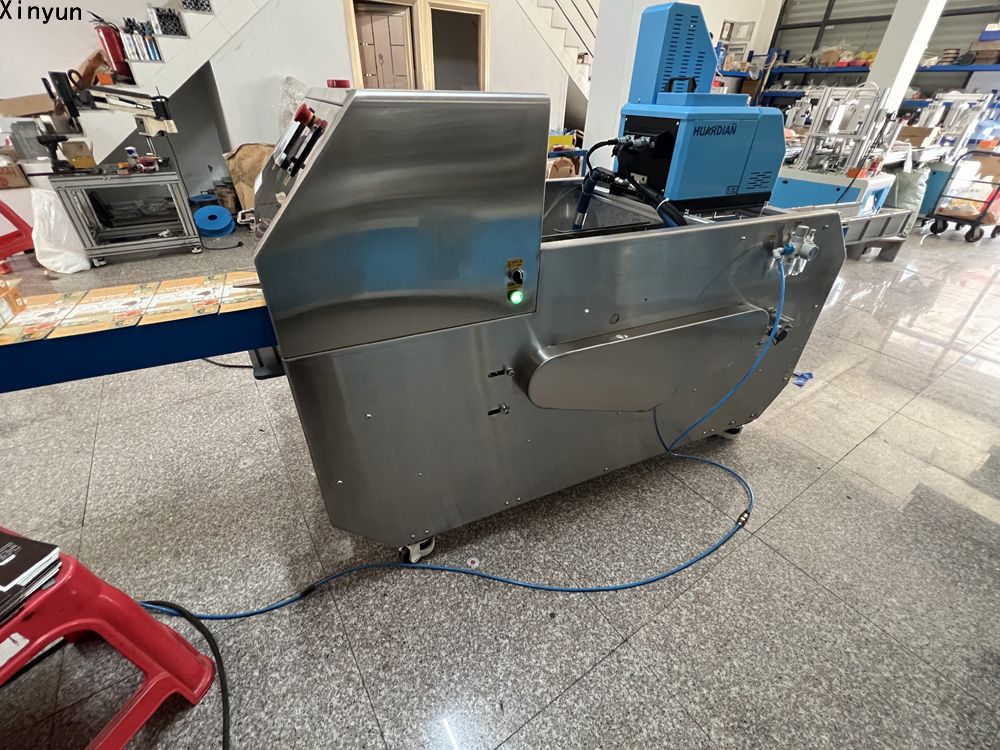

High speed facial tissue carton box sealing machine XY-TN-119
The improved high speed box sealing machine has the following advantages:
1. The overall selection of materials in line with environmental protection requirements, the use of food grade standards for the overall appearance of the processing, the use of stainless steel as a large area of equipment components.

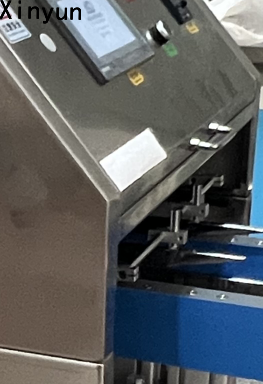

2. Convenient and fast transformation. Use touch screen to adjust size (only 30 seconds) to reduce the difficulty of adjusting the machine.
3. Simple and fashionable appearance, the whole machine adopts full-enclosed protective cover, Four 3-inch casters with damping, which can be moved at any time.
4. All electrical components of the whole machine adopt well-known brands in China.
5. Optimizing Power Consumption to Accord with the New Concept of Energy Conservation
6. Simple operation, high efficiency and low cost
Main Technical Parameters:
| Speed | 60-80 boxes/min |
| Packing size | 120-300mm(L)×60-200mm(W)×30-100mm(H) |
| Air pressure | 0.6Mpa-0.4Mpa |
| The highest temperature | 230 ℃ |
| Power | 4.5KW 220V 50Hz |
| Overall size | 3850mm(L)×980mm(W)×1470mm(H) |
Our service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Workshop
Our company
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
