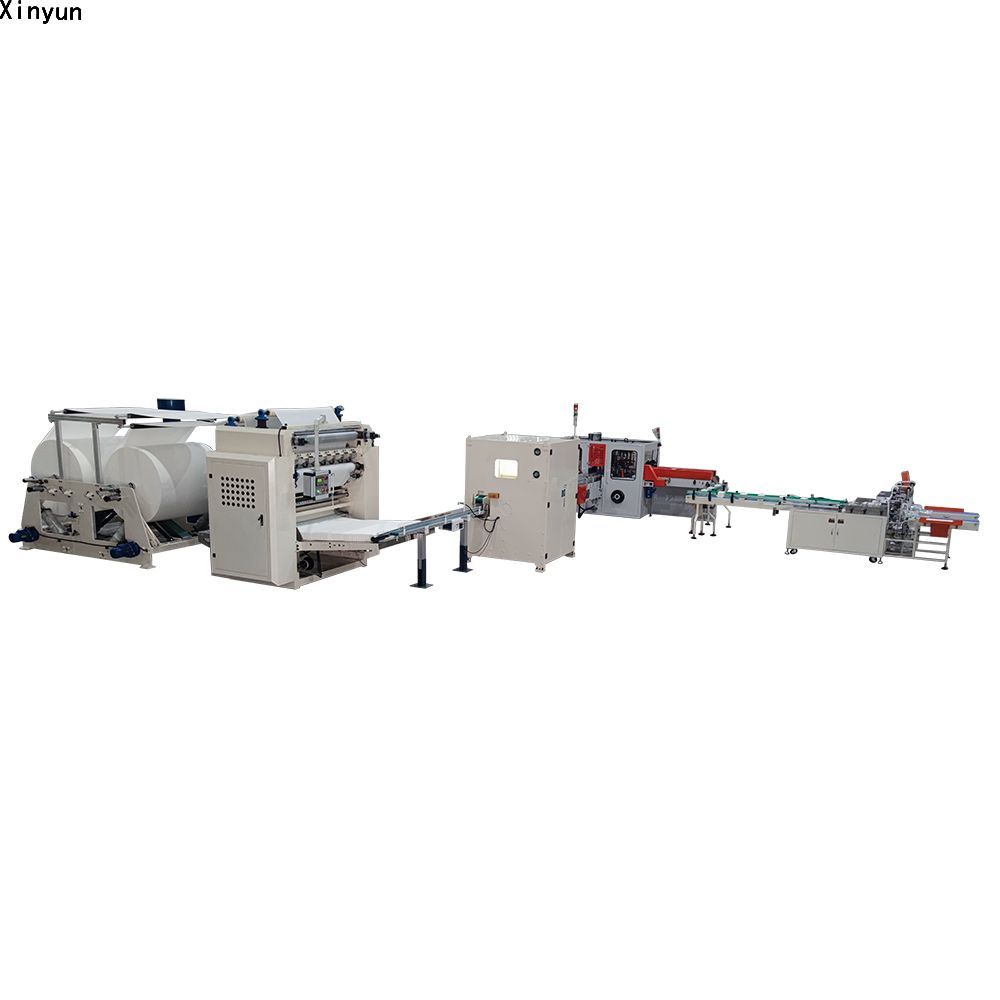

Automatic transferrring facial tissue paper production line XY-GU-A-A
Automatic transferring facial tissue production line is consist of automatic transferring facial tissue folding machine, single channel log saw cutting machine, single bag packing machine and automatic bundle packing machine. Machine working smoothly and stable from the raw material to finished products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products.
XY-GU-20A Automatic Box Drawing Facial Tissue Machine
Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished
products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best
choice of the production of tissue products.
Video Link: https://youtu.be/wiXdDZ2pKKs
XY-GU-20A Automatic facial tissue making machine working flow :The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and reciprocal folded into a sheet of rectangular or square facial tissue. This machine adopts independent servo motor drive ,and automatic paper tension control. It features of high speed ,nice folding and easy operation .
1. Configuration pneumatic embossing, pneumatic separation. (embossing customer selected)
2. Wallboard rack and fast machine running stability is excellent.
3. Pneumatic jumbo roll loading, pneumatic paper driving , Stepless speed ratio of adjustment ,and web tension control.
4. Equipped with roots type vacuum pump for stable running of the machine
5. Make various products width as requirement .
6. Equipped with edge embossing unit to keep the two plies together.
7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
8. The web can be threaded on the machine by the two jog buttons, It’s more safety and easier to thread the web.
Main technical parameter:
Machine model | XY-GU-20A |
Folded size of finished products | 100*(120-210)±2mm |
Unfold size of finished products | 200*210±2mm |
The width of jumbo roll paper | 1400mm |
Diameter of jumbo roll paper | 1500mm |
Diameter of jumbo roll paper inner core | 76.2mm |
Daily Output (22 hours) | 7500Kg |
Embossing unit | Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation |
Slitting unit | Pneumatic slitting |
Power | 4KW Main motor |
1.5KW(2 sets) Jumbo roll paper stand | |
Vacuum suction unit | 22KW Fan |
Pneumatic system | 3 HP air compressor ,mini pressure 5kg/cm2PA |
Driving system | Timing belt |
XY-GU-281 Single Channel large roundabout cutting machine
Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Main technical parameters
Designation | Parameter values |
The length of unfinished products | minimum 500mm(or, mini 5lines) |
The Height of finished product | 15~120mm |
Operating speed | 20~120cut/min |
Round blade outer diameter | Φ610mm |
Paper cutting circular knife top speed | 980R/min |
Finished products specification | 70~300mm |
Paper width | 70~110mm |
Cutting Length | 70~300mm |
Left-over Length | 20~65mm |
Power | 11KW |
Power supply | 380V 50Hz |
Air pressure | 0.5~0.8MPa |
Machine Size | 4600*1700*2500mm |
weight | 2300~2600kg |
brake | Parameter setting (auto/manual) |
Stepping sharpening knife | Parameter setting (auto) |
Pneumatic sharpening knife | Parameter setting (auto/manual) |
Blow air | without |
The total pressure switch | Value (not) |
Human-computer interface | DELTA (or selected by customer) |
frequency changer | DELTA |
Servo Drive | DELTA |
XY-BT-298 Full Automatic Three-dimensional Facial Tissue Packing Machine
Main technical parameters
Technical Specifications | Description | Remark |
Scope of application | Facial tissue, hand towel, napkin tissue | |
Equipment feeding mode | ASF Full automatic | Five sections of intelligent flexible feeding mode |
Max. design mechanical speed | Max. 100 bags/min | Related to specification of packing |
Max. stable operation speed | 70 bags/min | Related to specification of packing |
Tissue length range (finished product) | 120 mm- 210 mm | Over this size can be customized |
Tissue height range(finished product) | 40 mm- 100 mm | |
Tissue width range(finished product) | 90 mm- 105 mm | |
Spare parts for change size | 3 sets | Standard configuration quantity, the accurate specifications drawn up by the user |
Machine size(L*W*H) | 4600*3620*1770mm | Standard size |
Machine weight | About 3000KG | |
Packaging materials | CPP film | |
Film Thickness | 0.04mm-0.055mm | |
Max film diameter | 400 mm | Over this size can be customized |
Diameter of film core | 76mm | In accordance with international standards |
Max film width | 340mm | Over this size can be customized |
Air compressor | Minimum air pressure 5MPA
| Equipped by user |
Power supply | 380V/50HZ |
Following China's electric power standard
|
Total drive power | 4.8 KW | The sum of main motor, servo motor, Sum of speed regulating motor power |
Total heating power | 4.6 KW | Side seal, side sealing part of heating power combined |
Voltage variation | +/-10% | In accordance with international standards |
I/O Input/ I/O | 24VDC | Electrical control system control circuit input |
I/O Output/ I/O | 24VDC | Electrical control system control circuit output |
Equipment motion control mode | Three axle servo and axle location control | The electronic CAM motion curve |
Equipment main transmission mode | 20crmnti mechanical-cam+The electronic CAM drive
| |
Machine standard colour | Gray, International color RAL 7032 | The international color card color number RAL7032 |
Packaging style | Three-dimensional wrapping | vertical sealing first and then two side sealing |
XY-BT-299 Automatic facial tissue bundle packing machine
Characteristics:
◆ Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 rolls in one bag).
◆ Can be connected with log saw or single roll wrapping machine.
◆ Servo system,PLC controlled.
◆ Auto feeding, auto adjustment.Adopting high quality sensors.
◆ Operated by color touch screen display.
◆ Emergency stop/ pause function, safety alarm system, air and electric power protection system.
◆ Adopting constant temperature sealing and cutting system.
Capacity | 18bundling bag/min |
Power supply | 17 kw 380V 50HZ |
Air supply | 0.5-0.7MPA(Supplied by user) |
Feeding mode | Full automatic 2 lanes feeding system |
Suitable for packing | Bundling facial tissue |
Bag size/Rolls per bag | L600*W(150-420)*H(80-105) mm 6、8、10 bag/bundling bag |
Bundling bag mode | Prefabricated bag with air-bleed hole |
Bundling bag material | PE, thickness:：≥0.05mm |
Bundling bag store | 40mm Two bag storage |
Bundling bag storing quantity | ≤500 pcs |
Machine weight | 3500kg |
Machine size | L6800*W3700*H1600 mm |
