V folding hand towel machine process paper material after embossing, cuting off, interfolding become V fold, The products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.

Share this:

Technical Parameter

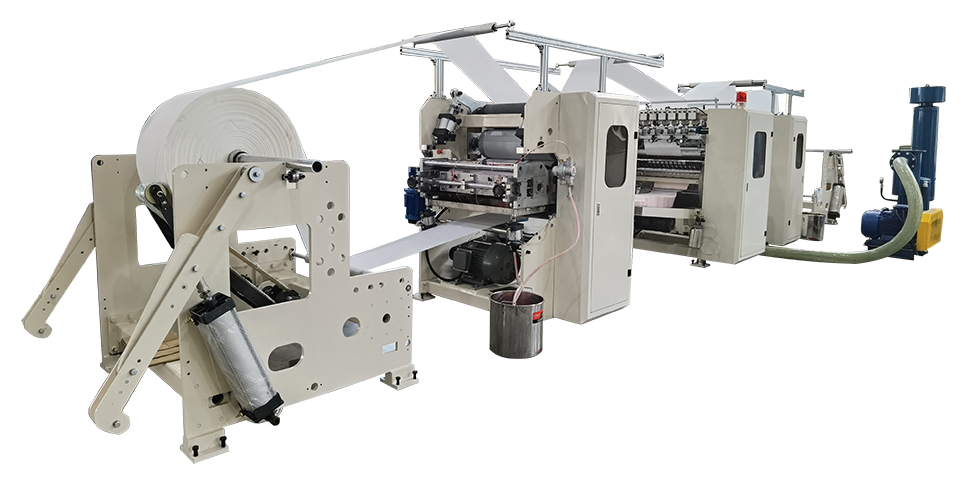

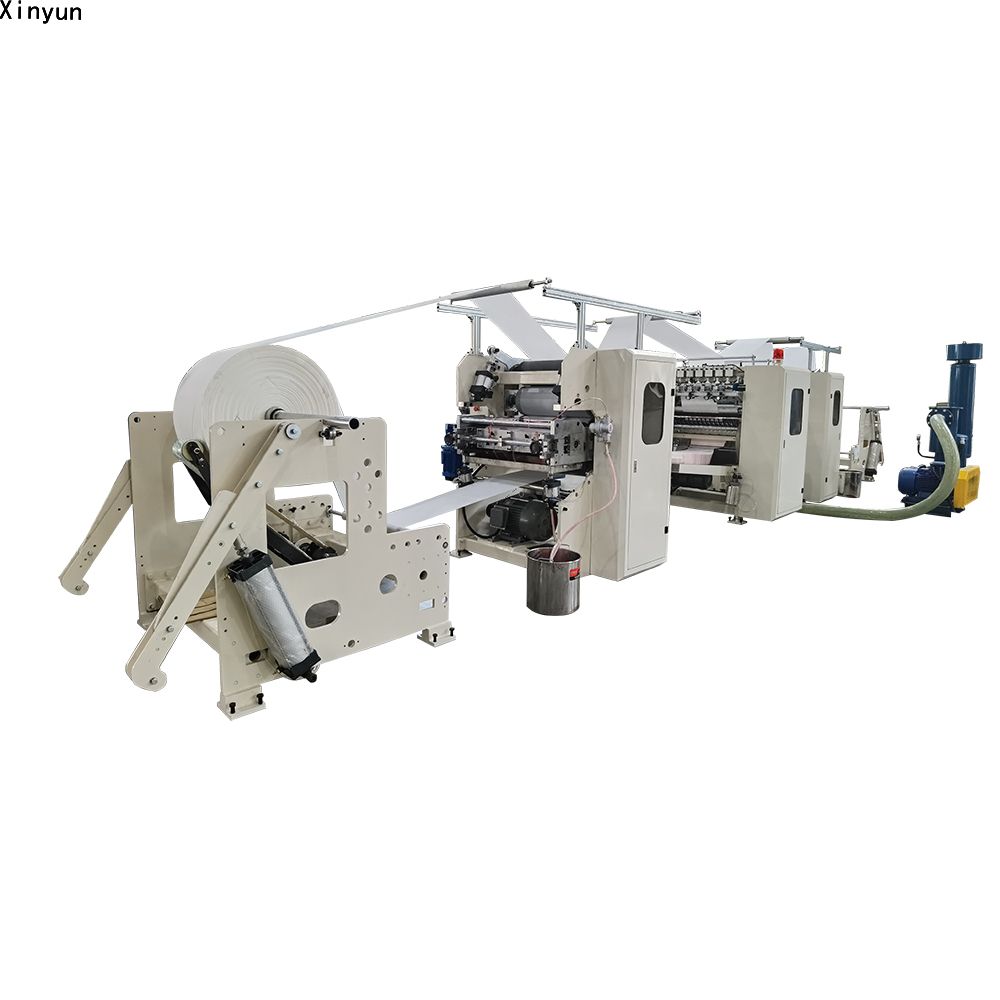

Automatic V fold hand towel paper glue lamination machine   XY-BT-288

V folding hand towel machine process paper material after embossing, cuting off, interfolding become V fold, The products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.

Function and characteristics

1. Production speed :(60~100)m/min

2. Embossing unit: Steel to steel embossing unit.

3. Pneumatic broken paper automatic separation, convenient wear paper.

4. Using synchronous belt transmission, transmission ratio is accurate, low noise.

5. Base paper adapt range: 33-45g/m2 (single ply)

6. To be order two layers glue lamination .(Optional)

Automatic V fold hand towel paper making machine.jpg

detail.jpgMain Technical Parameters:

Unfold size of finished products

210LX230±2mm   Other sizes are available

Folded size of finished products

105LX230±2mm    Other sizes are available

Raw material inner core diameter

76.2mm (Other sizes are available)

Production speed

0-100m/min (Depending on the machine model )

Power

Frequency conversion speed regulator

Programmable controller

PLC computer controller

Folding type

Vacuum suction “ V” fold

Transmission unit

Timing belt and flat belt

Counter

Ink marked

Embossing unit

Steel to steel

Slitting unit

Pneumatic dot slitting

Pneumatic system

3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer)

Power

380V 50Hz

Jumbo roll standardjumbo rolls standard.jpg

Embossing device


Folding device

folding device.jpg

Slitting device20190927105517.jpg

Countting device

counting device.jpg

Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Packing & DeliveryPacking.jpg

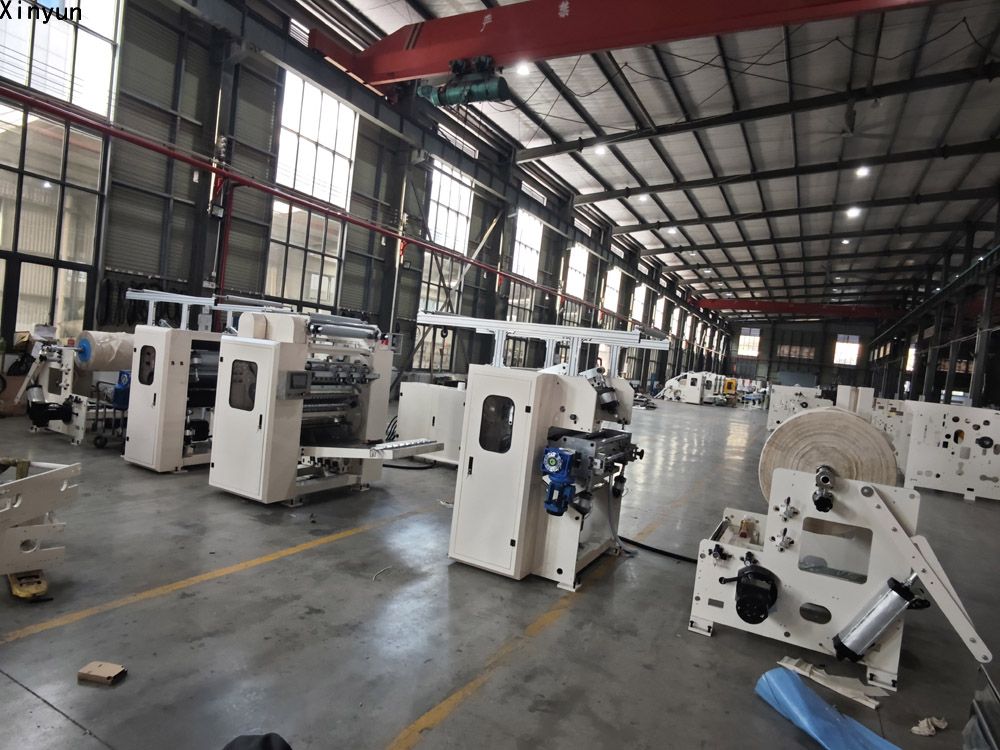

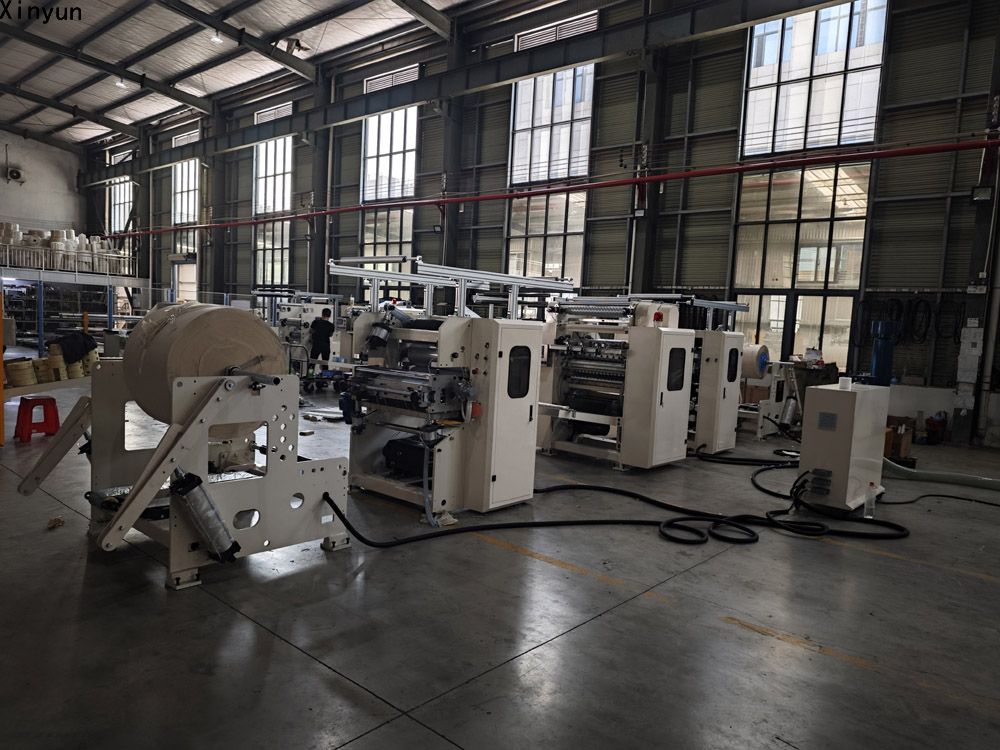

Workshop


Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)


2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
