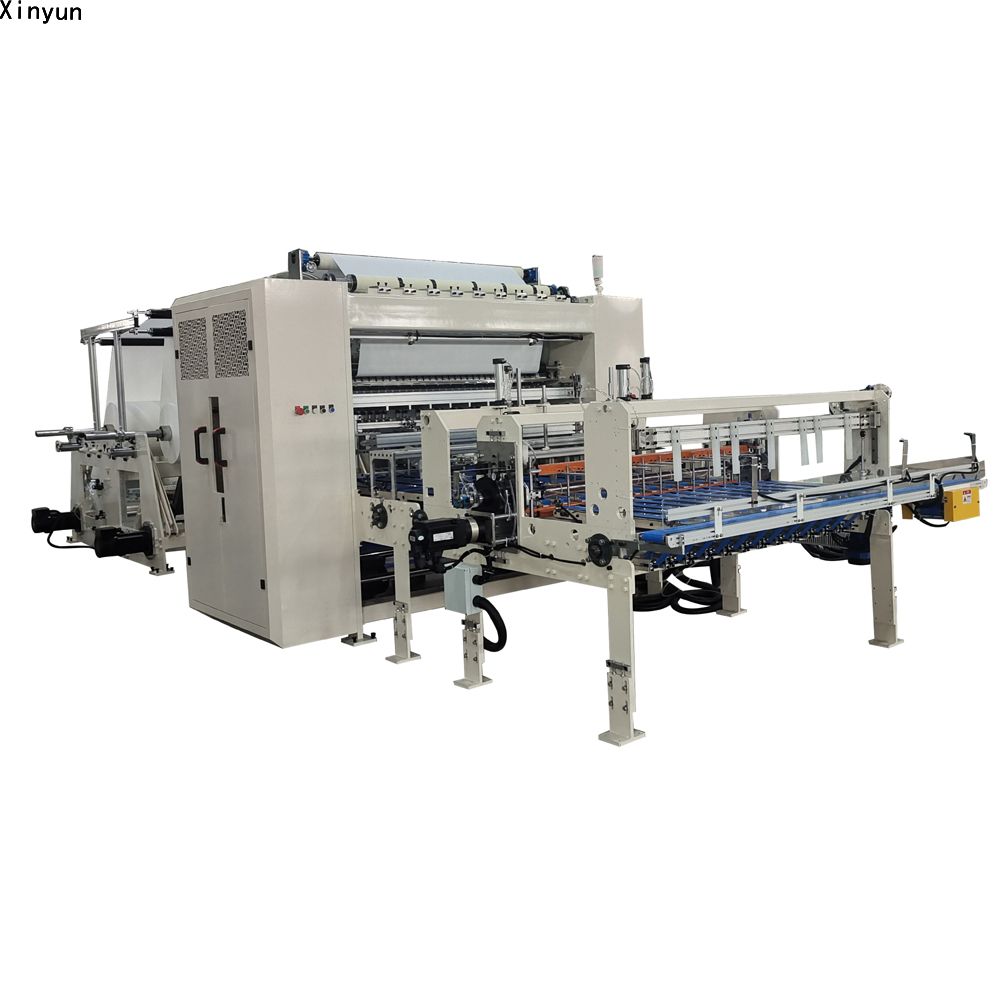

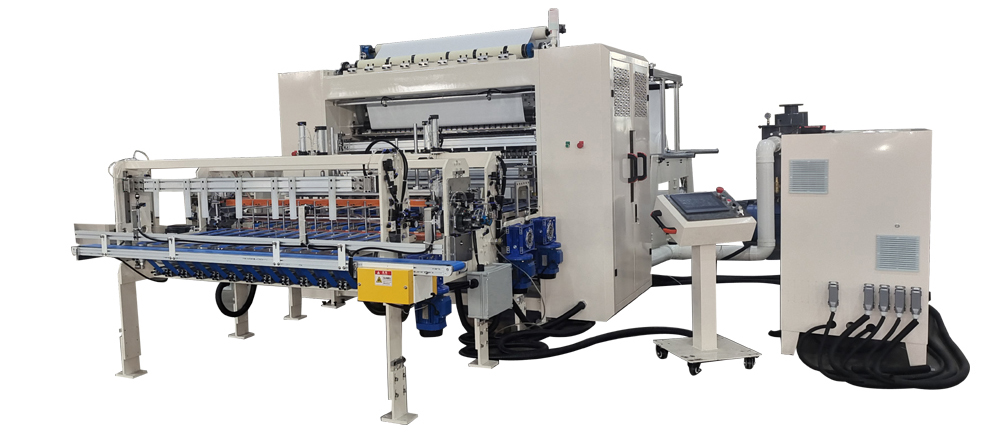

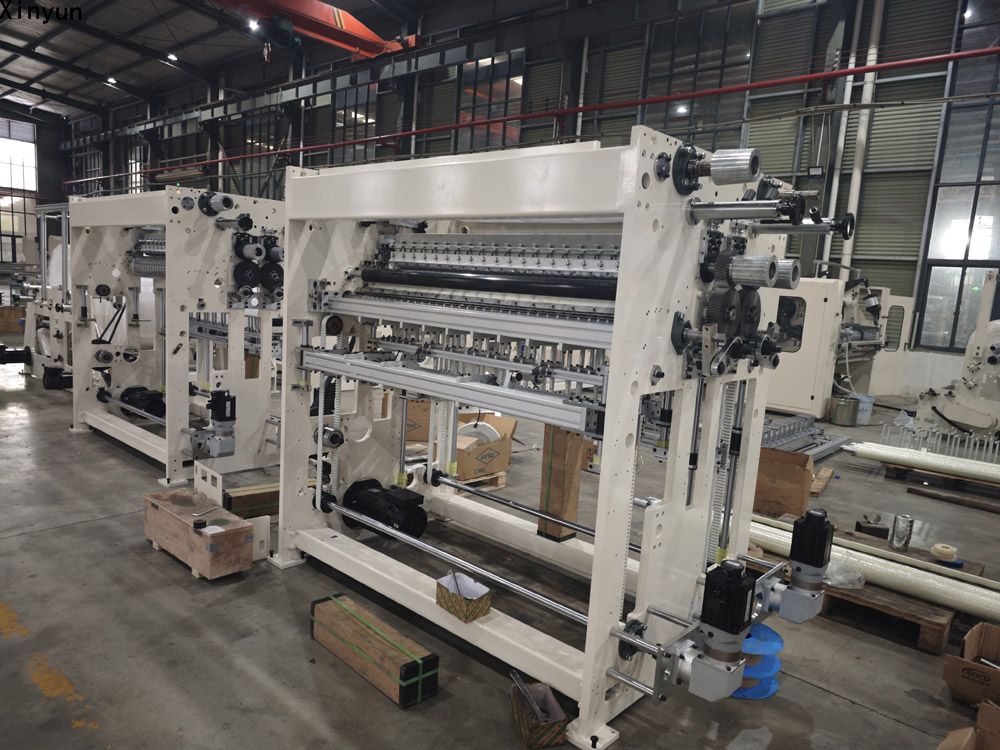

Automatic transferrring facial tissue paper making machine XY-GU-20
XY-GU-20 Automatic facial tissue making machine working flow :The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and reciprocal folded into a sheet of rectangular or square facial tissue. This machine adopts independent servo motor drive ,and automatic paper tension control. It features of high speed ,nice folding and easy operation .
1. Configuration pneumatic embossing, pneumatic separation. (embossing customer selected)
2.Wallboard rack and fast machine running stability is excellent.

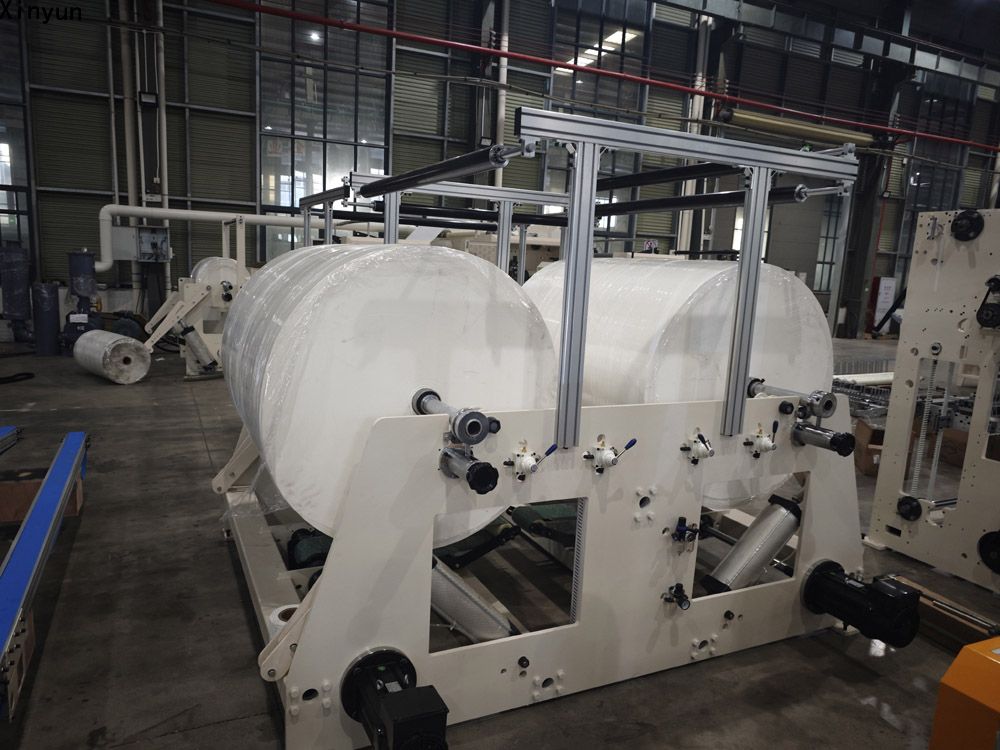

3. Pneumatic jumbo roll loading, pneumatic paper driving , Stepless speed ratio of adjustment ,and web tension control.
4. Equipped with roots type vacuum pump for stable running of the machine
5. Make various products width as requirement .
6. Equipped with edge embossing unit to keep the two plies together.
7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
8. The web can be threaded on the machine by the two jog buttons, It’s more safety and easier to thread the web.
Main technical parameter:
Machine model | XY-GU-20A |
Folded size of finished products | 100*(120-210)±2mm |
Unfold size of finished products | 200*210±2mm |
The width of jumbo roll paper | 1400mm |
Diameter of jumbo roll paper | 1500mm |
Diameter of jumbo roll paper inner core | 76.2mm |
Daily Output (22 hours) | 7500Kg |

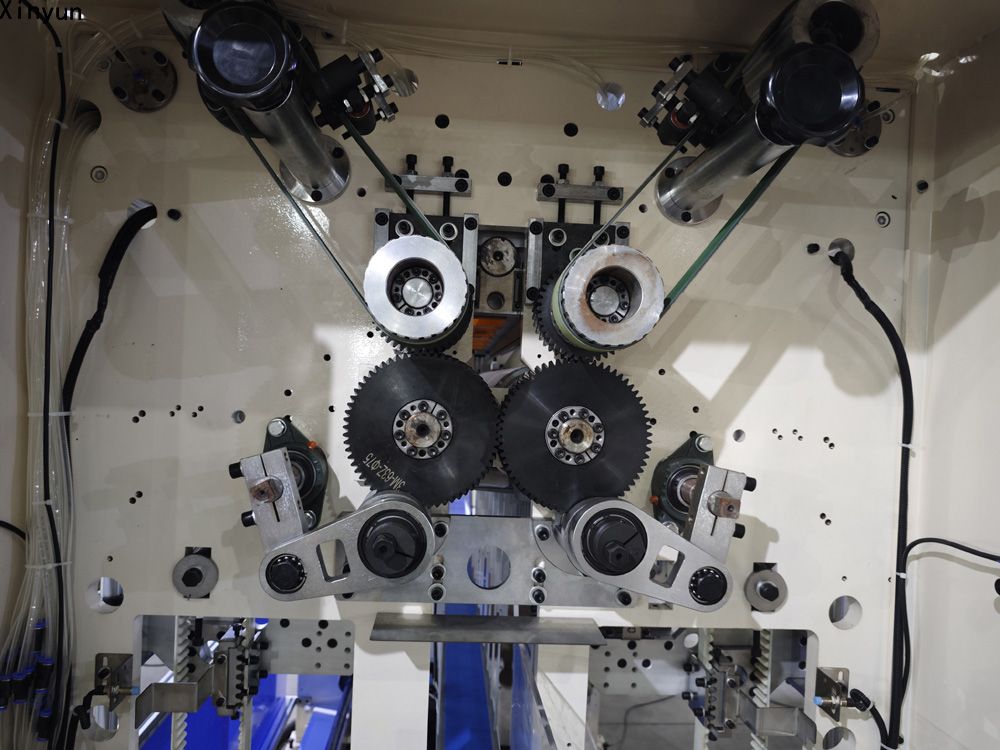

Embossing unit | Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation |
Slitting unit | Pneumatic slitting |
Power | 4KW Main motor |
1.5KW(2 sets) Jumbo roll paper stand | |
Vacuum suction unit | 22KW Fan |
Pneumatic system | 3 HP air compressor ,mini pressure 5kg/cm2PA |
Driving system | Timing belt |
Designation | Parameter values |
The length of unfinished products | minimum 500mm(or, mini 5lines) |
The Height of finished product | 15~120mm |
Operating speed | 20~120cut/min |
Round blade outer diameter | Φ610mm |
Paper cutting circular knife top speed | 980R/min |
Finished products specification | 70~300mm |
Paper width | 70~110mm |
Cutting Length | 70~300mm |
Left-over Length | 20~65mm |
Power | 11KW |
Power supply | 380V 50Hz |
Air pressure | 0.5~0.8MPa |
Machine Size | 4600*1700*2500mm |
weight | 2300~2600kg |
brake | Parameter setting (auto/manual) |
Stepping sharpening knife | Parameter setting (auto) |
Pneumatic sharpening knife | Parameter setting (auto/manual) |
Blow air | without |
The total pressure switch | Value (not) |
Human-computer interface | DELTA (or selected by customer) |
frequency changer | DELTA |
Servo Drive | DELTA |
