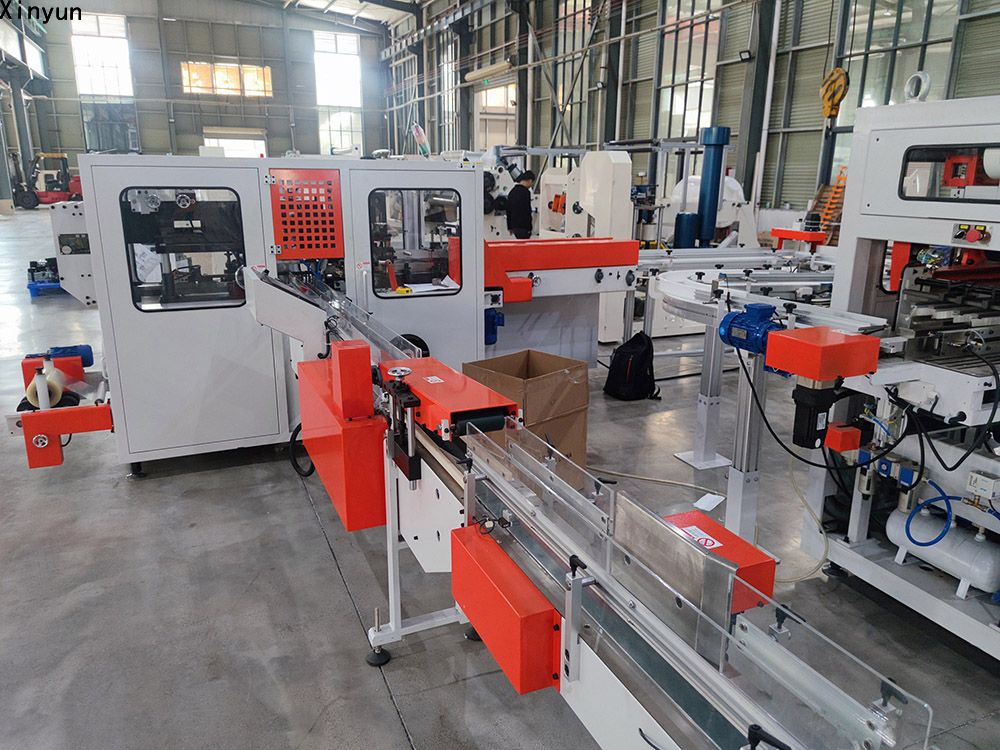

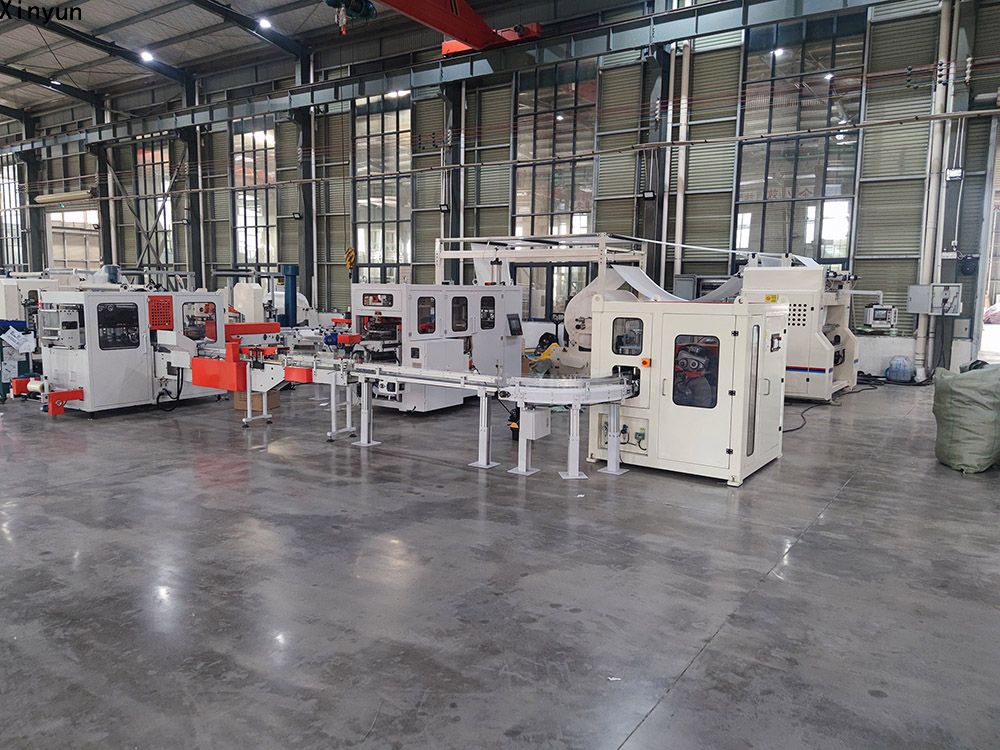

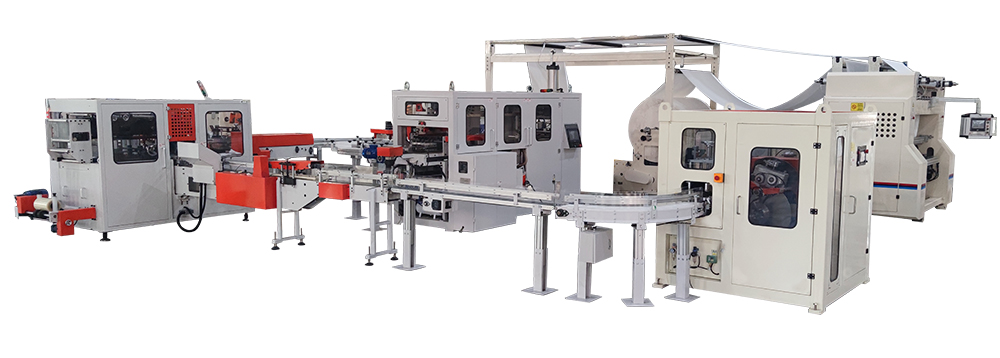

Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine and automatic bundle packing machine. Machine working smoothly and stable from the raw material to finished  products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best  choice of the production of tissue products.

Share this:

Technical Parameter

Automatic Transferring Facial Tissue Paper Making Machine Production Line

XY-GU-A-A

Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine and automatic bundle packing machine. Machine working smoothly and stable from the raw material to finished products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products.

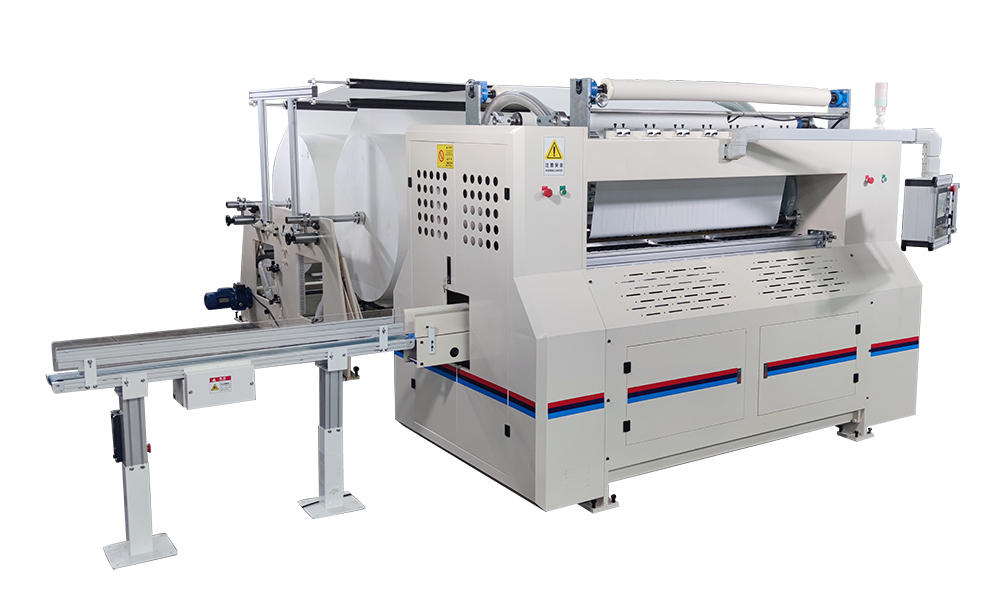

XY-GU-20  Automatic Box Drawing Facial Tissue Machine

The paper-breaking knife roller adopts the structure of the spiral knife roller, which effectively solves the stability of the paper-breaking and the service life of the blade.

The structure of the paper-breaking knife roller adopts the structure of the spiral knife roller from the original straight knife to the full-cutting type, and the spiral knife roller is the point-cutting type, which solves the instability of the paper break and the short life of the blade caused by the original straight knife structure.


1.Air source system: the air source is prepared by the buyer, and the air source access point is connected to a point which is 1-2 meters away from the gas point and equipped with a shut-off valve, which is according to the seller's requirements. The required pressure of the air source: 5-6kg/cm².

2.Power system: the power supply is prepared by the buyer, and the power supply is connected to the electrical control cabinet of the contract machine according to the seller's requirements.

3. Vacuum system: The piping required for vacuum connection is prepared by the buyer.

Main technical parameter:

Machine model

XY-GU-20A

Folded size of finished products

100*(120-210)±2mm

Unfold size of finished products

200*210±2mm

The width of jumbo roll paper

1400mm

Diameter of jumbo roll paper

1200mm

Diameter of jumbo roll paper inner core

76.2mm

Daily Output (8 hours)

2000-6000Kg

Embossing unit

Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation

Slitting unit

Pneumatic slitting

Power

5.5KW Main motor

1.5KW(2 sets) Jumbo roll paper stand

Vacuum suction unit

18.5KW Fan

Pneumatic system

3 HP air compressor ,mini pressure 5kg/cm2PA

Driving system

Timing belt

XY-GU-281 Single Channel large roundabout cutting machine

Automatic facial tissue low saw cutting machine.jpg

Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.

Main technical parameters

Designation

Parameter values

The length of unfinished products

minimum 500mm(or, mini 5lines)

The Height of finished product

15~120mm

Operating speed

20~120cut/min

Round blade outer diameter

Φ610mm

Paper cutting circular knife top speed

980R/min

Finished products specification

70~300mm

Paper width

70~110mm

Cutting Length

70~300mm

Left-over Length

20~65mm

Power

11KW

Power supply

380V 50Hz

Air pressure

0.5~0.8MPa

Machine Size

4600*1700*2500mm

weight

2300~2600kg

brake

Parameter setting (auto/manual)

Stepping sharpening knife

Parameter setting (auto)

Pneumatic sharpening knife

Parameter setting (auto/manual)

Blow air

without

The total pressure switch

Value (not)

Human-computer interface

DELTA (or selected by customer)

frequency changer

DELTA

Servo Drive

DELTA

XY-BT-298 Full Automatic Three-dimensional Facial Tissue Packing Machine        Automatic facial tissue napkin paper packing machine.jpg

Main technical parameters

Technical Specifications

Description

Remark

Scope of application

Facial tissue, hand towel, napkin tissue


Equipment feeding mode

ASF Full automatic

Five sections of intelligent flexible feeding mode

Max. design mechanical speed

Max. 100 bags/min

Related to specification of packing

Max. stable operation speed

70 bags/min

Related to specification of packing

Tissue length range (finished product)

120 mm- 210 mm

Over this size can be customized

Tissue height range(finished product)

40 mm- 100 mm

Tissue width range(finished product)

90 mm- 105 mm

Spare parts for change size

3 sets

Standard configuration quantity, the accurate specifications drawn up by the user

Machine size(L*W*H)

4600*3620*1770mm

Standard size

Machine weight

About 3000KG


Packaging materials

CPP film


Film Thickness

0.04mm-0.055mm


Max film diameter

400 mm

Over this size can be customized

Diameter of film core

76mm

In accordance with international standards

Max film width

340mm

Over this size can be customized

Air compressor

Minimum air pressure 5MPA

Equipped by user

Power supply

380V/50HZ

Following China's electric power standard

Total drive power

4.8 KW

The sum of main motor, servo motor, Sum of speed regulating motor power

Total heating power

4.6 KW

Side seal, side sealing part of heating power combined

Voltage variation

+/-10%

In accordance with international standards

I/O Input/ I/O

24VDC

Electrical control system control circuit input

I/O Output/ I/O

24VDC

Electrical control system control circuit output

Equipment motion control mode

Three  axle servo and axle location control

The electronic CAM motion curve

Equipment main transmission mode

20crmnti mechanical-cam+The electronic CAM drive


Machine standard colour

Gray, International color RAL 7032

The international color card color number RAL7032

Packaging style

Three-dimensional wrapping

vertical sealing first and then two side sealing

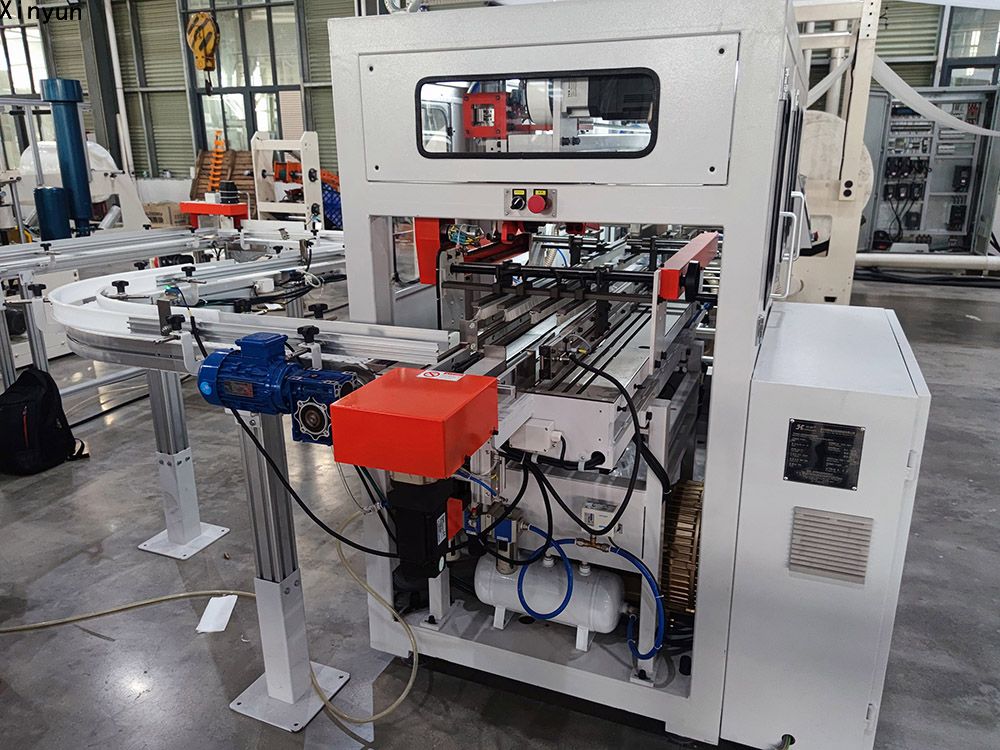

XY-BT-299 Automatic facial tissue bundle packing machine


Characteristics:

◆ Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 rolls in one bag).

◆ Can be connected with log saw or single roll wrapping machine.

◆ Servo system,PLC controlled.

◆ Auto feeding, auto adjustment.Adopting high quality sensors.

◆ Operated by color touch screen display.

◆ Emergency stop/ pause function, safety alarm system, air and electric power protection system.

◆ Adopting constant temperature sealing and cutting system.

Capacity

18bundling bag/min

Power supply

17 kw 380V 50HZ

Air supply

0.5-0.7MPA(Supplied by user)

Feeding mode

Full automatic 2 lanes feeding system

Suitable for packing

Bundling facial tissue

Bag size/Rolls per bag

L600*W(150-420)*H(80-105) mm 6810 bag/bundling bag

Bundling bag mode

Prefabricated bag with air-bleed hole

Bundling bag material

PE, thickness:≥0.05mm

Bundling bag store

40mm  Two bag storage

Bundling bag storing quantity

≤500 pcs

Machine weight

3500kg

Machine size

L6800*W3700*H1600 mm
