Automatic toilet paper kitchen towel paper machine production line manufacturer

Automatic toilet paper kitchen towel paper machine production line XY-TQ-A-A

Technical performance characteristic：

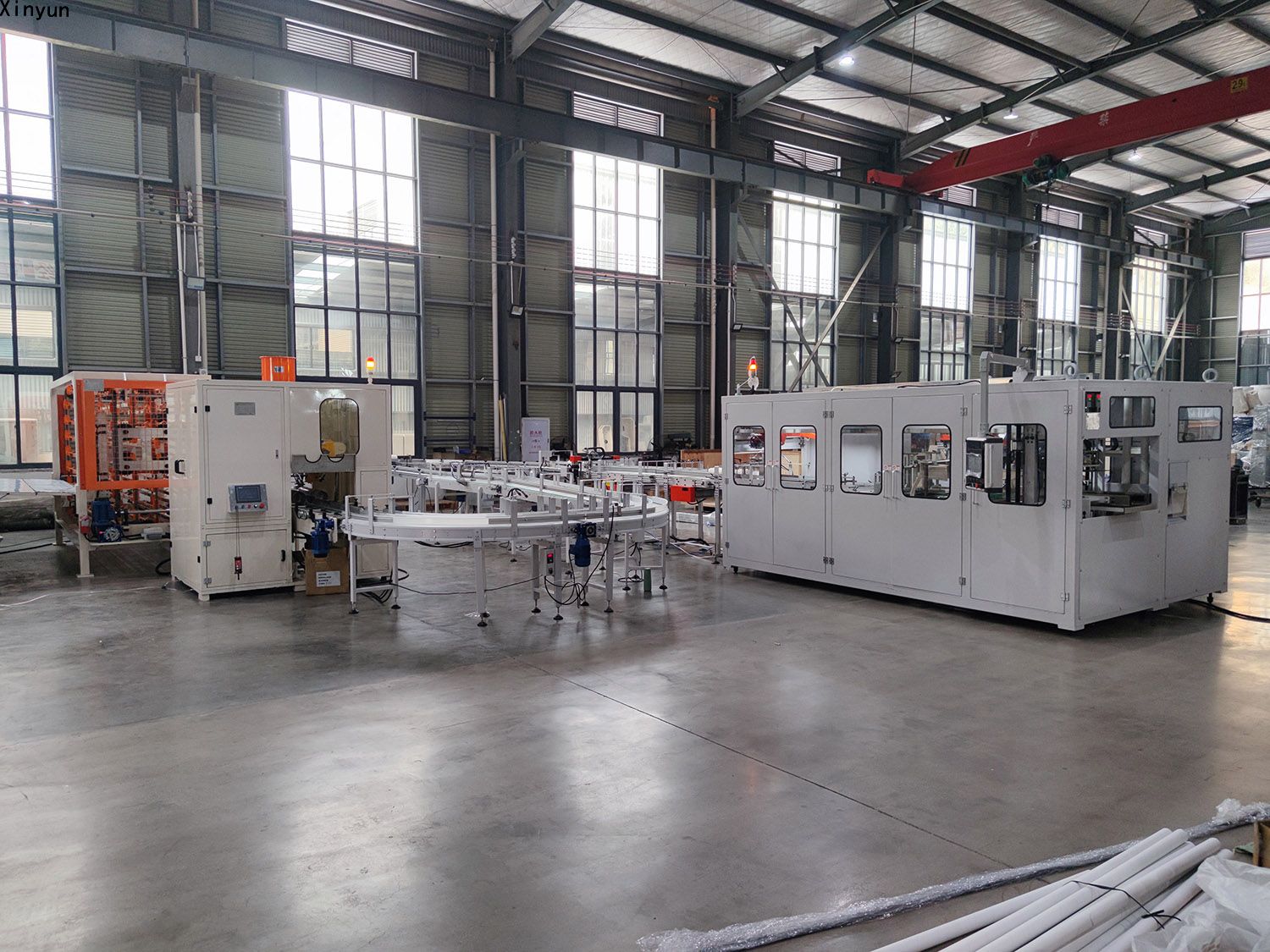

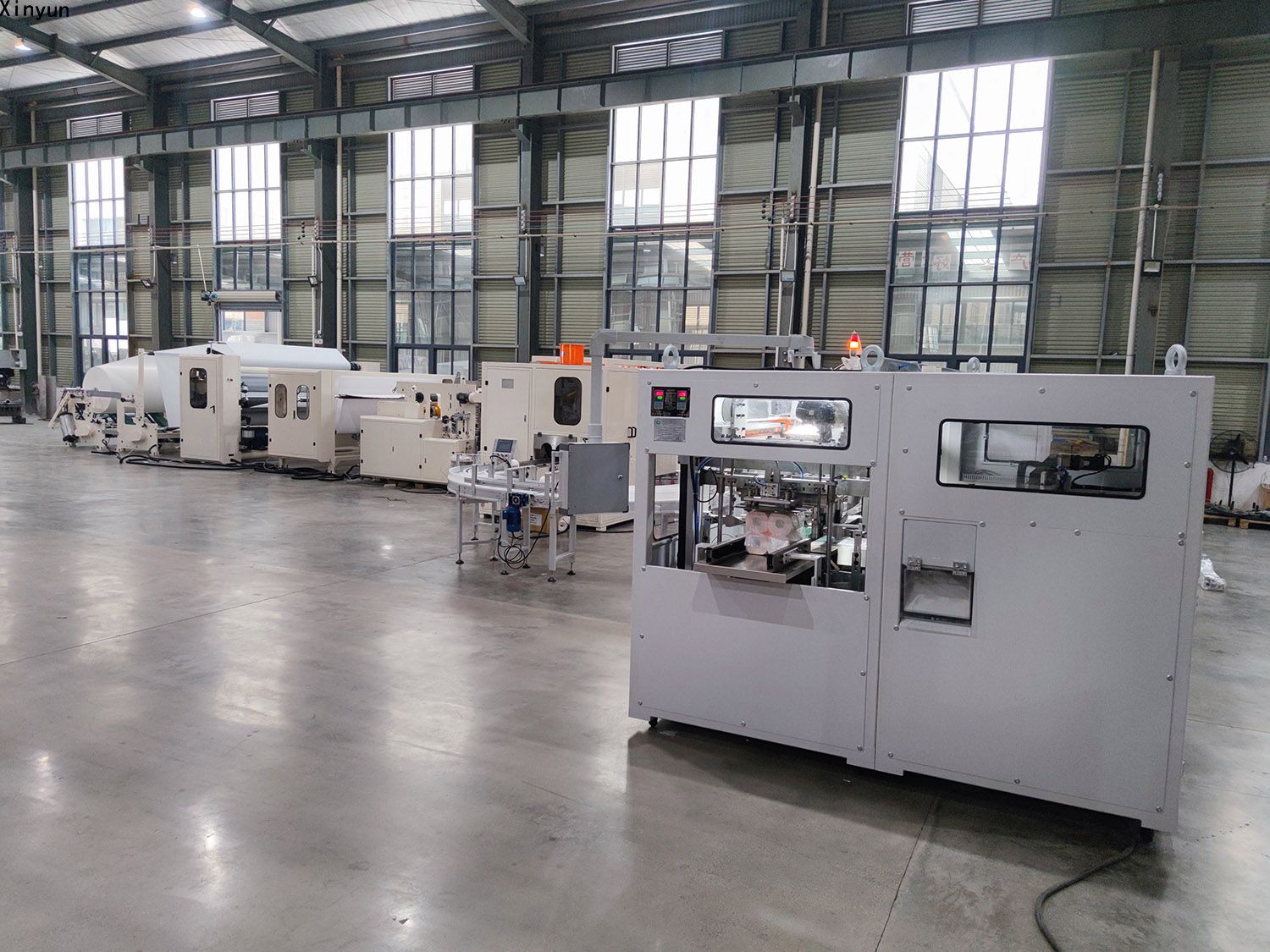

This production line consists of Wall Type Automatic Rewinding Machine, Automatic Log Accumulator,Double Channel Log Saw and Automatic Packing Machine. From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products. Automatic toilet paper kitchen towel paper machine production line.jpg

Automatic toilet paper making machine XY-TQ-B

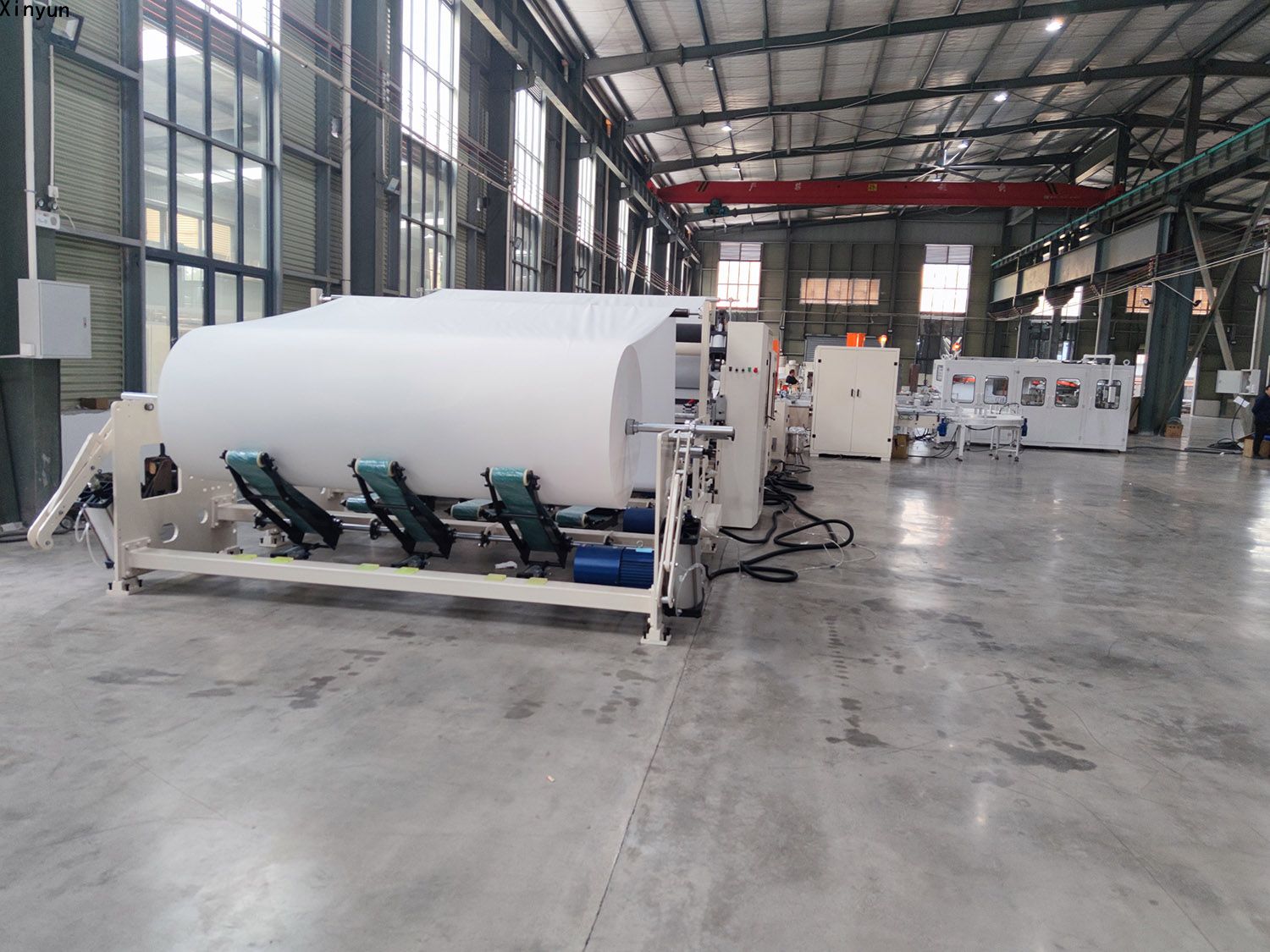

Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Automatic kitchen towel paper making machine.jpg

The width of jumbo roll	1200-2800 mm
The diameter of jumbo roll	1200 mm(Other size can be specified)
Jumbo roll inner core diameter	3inches(76.2mm)
Finish product diameter	Φ70-φ280mm
Finish product Inner core diameter	φ38-φ76mm
Perforation distance	4 anvil Blades 90-150mm;2 anvil Blades 180-300mm
Speed	180-230 m/min
Embossing device	Steel to rubber
Pneumatic system	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user）
Rewinding Unit	With core or coreless

Jumbo roll standard

IMG_20190903_152734

Doctor blade gluing lamination device

Paper accumulator device

Embossing device

IMG_20190917_154321

Perforating device

IMG_20191017_145954

Tail-gluing— Edge trimming

IMG_20190904_090849

Automatic Toilet Roll Paper Log Saw Cutting Machine XY-AI-280

Technical performance characteristic：

The XY-AI-280 double-channel log saw machine is used for cutting toilet paper rolls and kitchen towel paper rolls. It features high automation and efficient production. The machine adopts an advanced servo drive system, frequency-conversion speed regulation, PLC control and touch-screen operation.

Speed	160-200 rolls/min
Toilet log length	≦2850mm(it can be made according to customer request)
Finished toilet roll diameter	90-120mm
Finished toilet roll length	≦300mm
Power	11kw 380V 50Hz
Cutting blade	φ610*4.7mm
Overall size	650025002000mm
Weight	4500KG

Semi automatic toilet roll paper bundle packing machine XY-AI-398A

Semi automatic toilet paper bundle packing machine.jpg

This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements. It’s easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.

Speed	8-10 bags/min
Packing size	4,6,8,10,12 rolls toilet paper and 2 rolls kitchen towel paper
Air supply	0.6 MPA(supplied by client)
Power	2.2kw 220V 50Hz
Dimension	4550×1050×1750 mm
Weight	250KG

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?

1. Good quality of machine with reasonable price.

2. Good service: Any question from customer will be reply within 24 hours

For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.

We deliver operate manual with machine and free provide online serve,it will help customer to work the machine easy.

After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacturer.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
