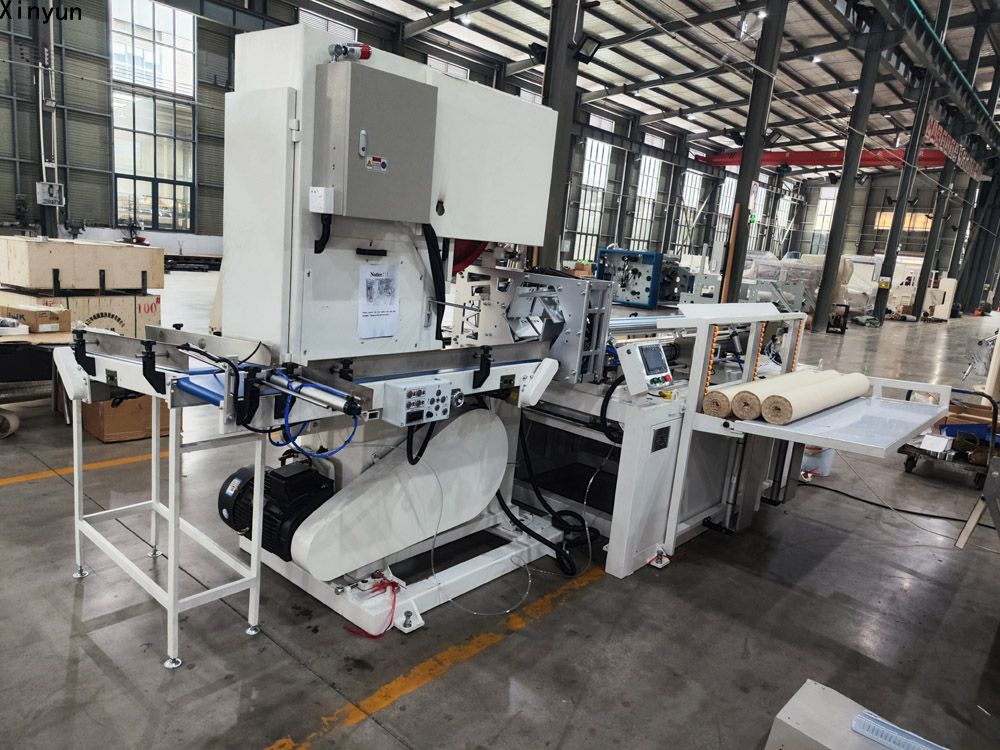

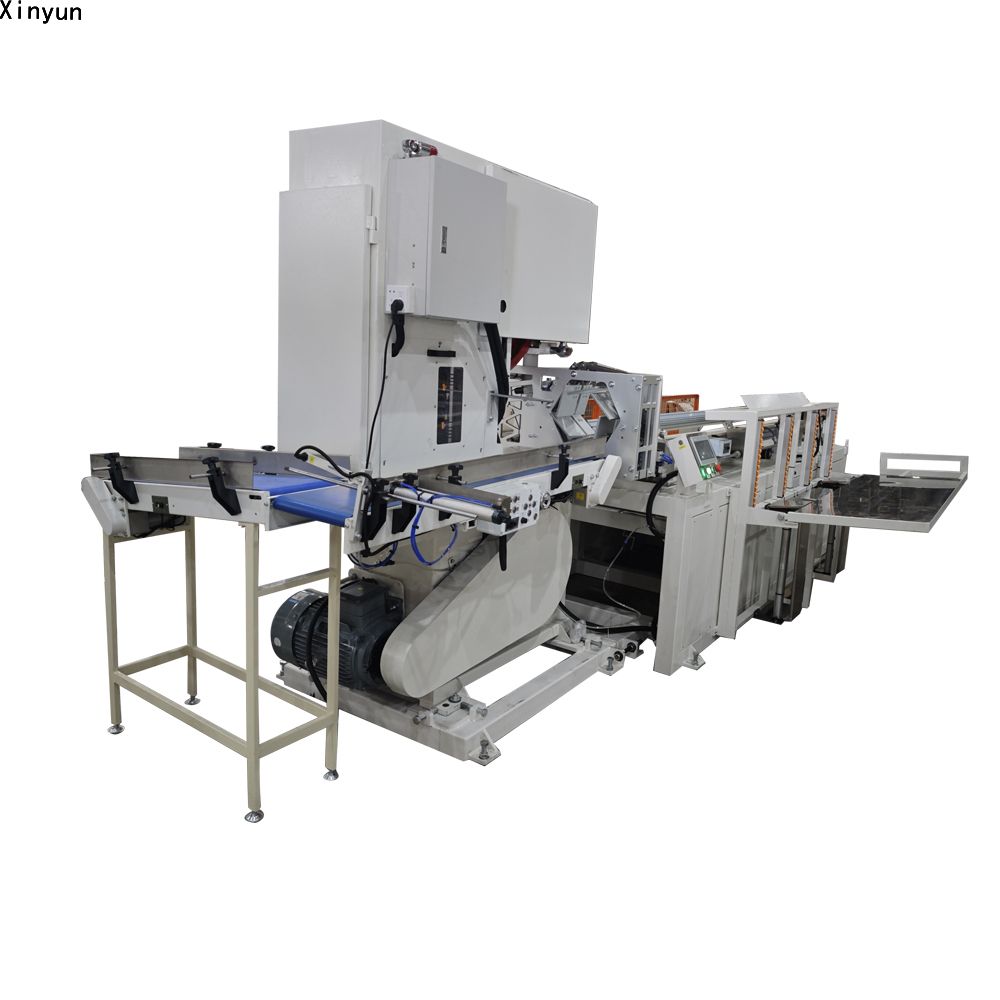

Low price JRT roll paper band saw cutting machinery XY-AI-500
Technical performance characteristic:
The equipment is the latest research and development which is the extension of the company with the current market situation. Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
Feature and function:
1.The main motor using the inverter independent drive.
2.For one set of machine, the cutting diameter of paper roll is adjustable as 150~250mm.
3.The equipment adopts automatic sharpening system, grinding wheel can be automatic feeding adjustment according to the blade loss.
4.The grinding system is equipped with an independent dust removal device to ensure the working environment.
5.The band saw adopts hydraulic tension system to ensure the tension of band saw.
6.It will be automatic stop and alarm when the knife is broken.
7.High precision servo system is used to ensure the quality of finished products.
8.According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.
9.The device stops working and prompts the interface when the input data is wrong.
10.Using band saw for cutting and reduces the cost of use of users.
11.The thickness of finished paper core should less 3mm(Suggestion)
Main Technical Parameters:
Speed | 20-40 cuts/min |
Toilet log length | ≦2850mm(it can be made according to customer request) |
Finished toilet roll diameter | 150-300mm |
Finished toilet roll length | ≦400mm |
Cutting tolerance | ±1.5mm |
Power | 1kw 380V 50Hz |
Cutting blade | 5180*100*1.05 |
Overall size | 5300*2350*2200 mm |
Weight | 2700KG |

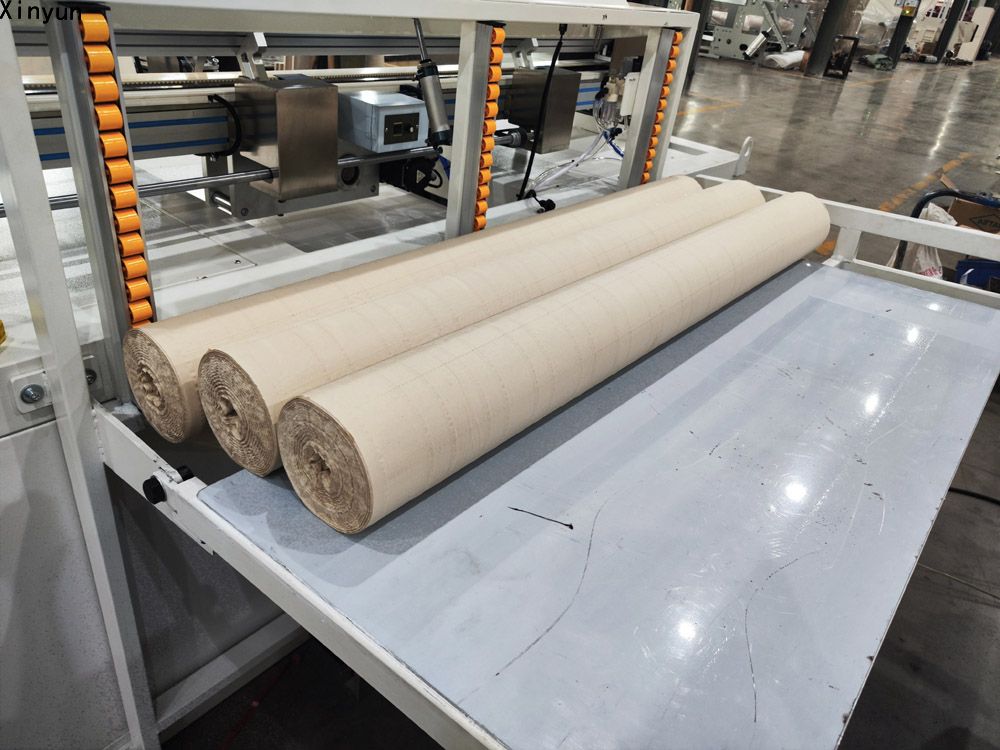

Storage board

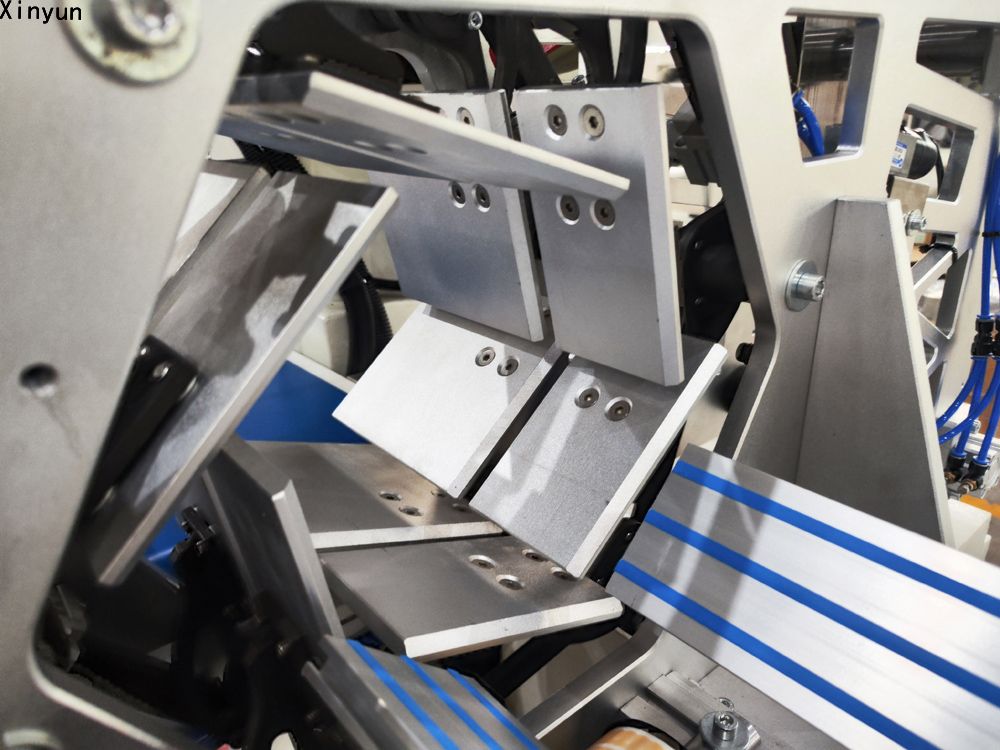

push device

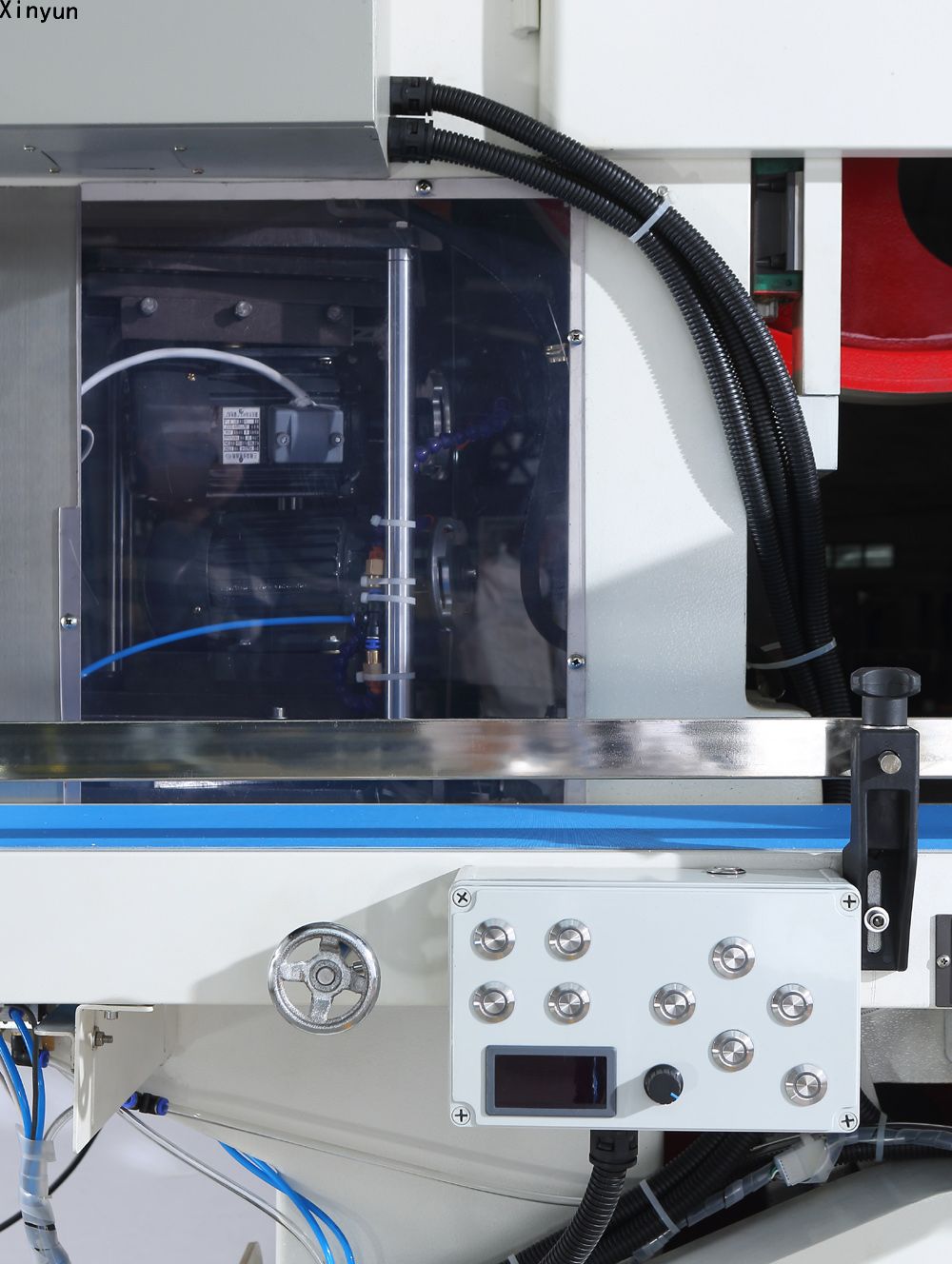

Cutting device
Our service

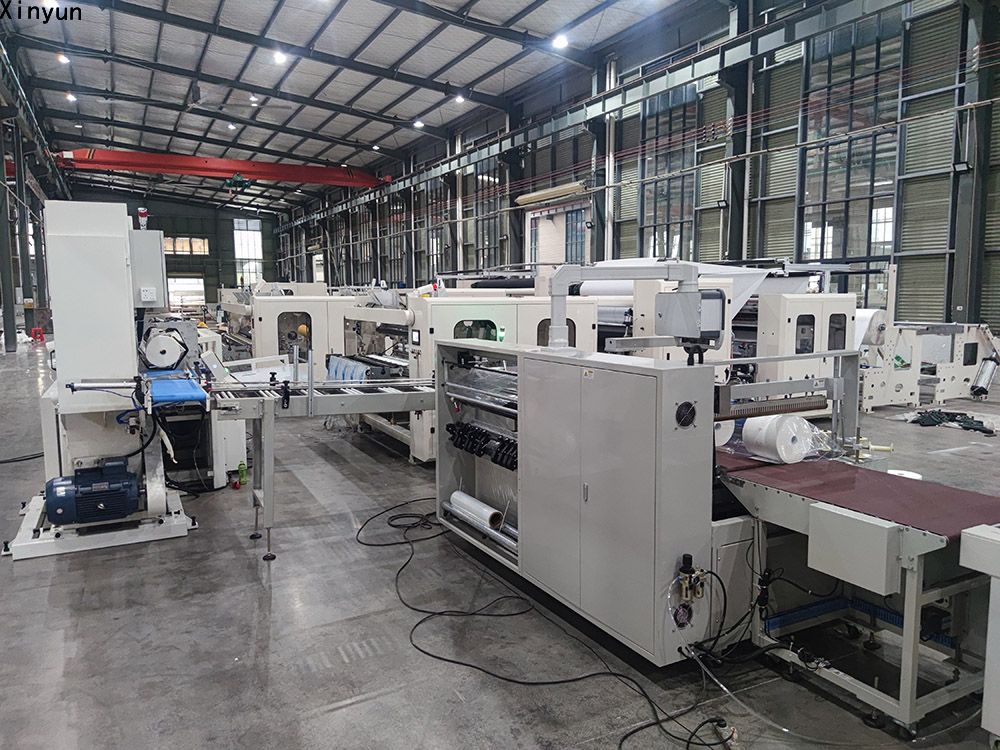

Workshop
Our company
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
