The equipment is the latest research and development which is the extension of the company with the current market situation. Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

Share this:

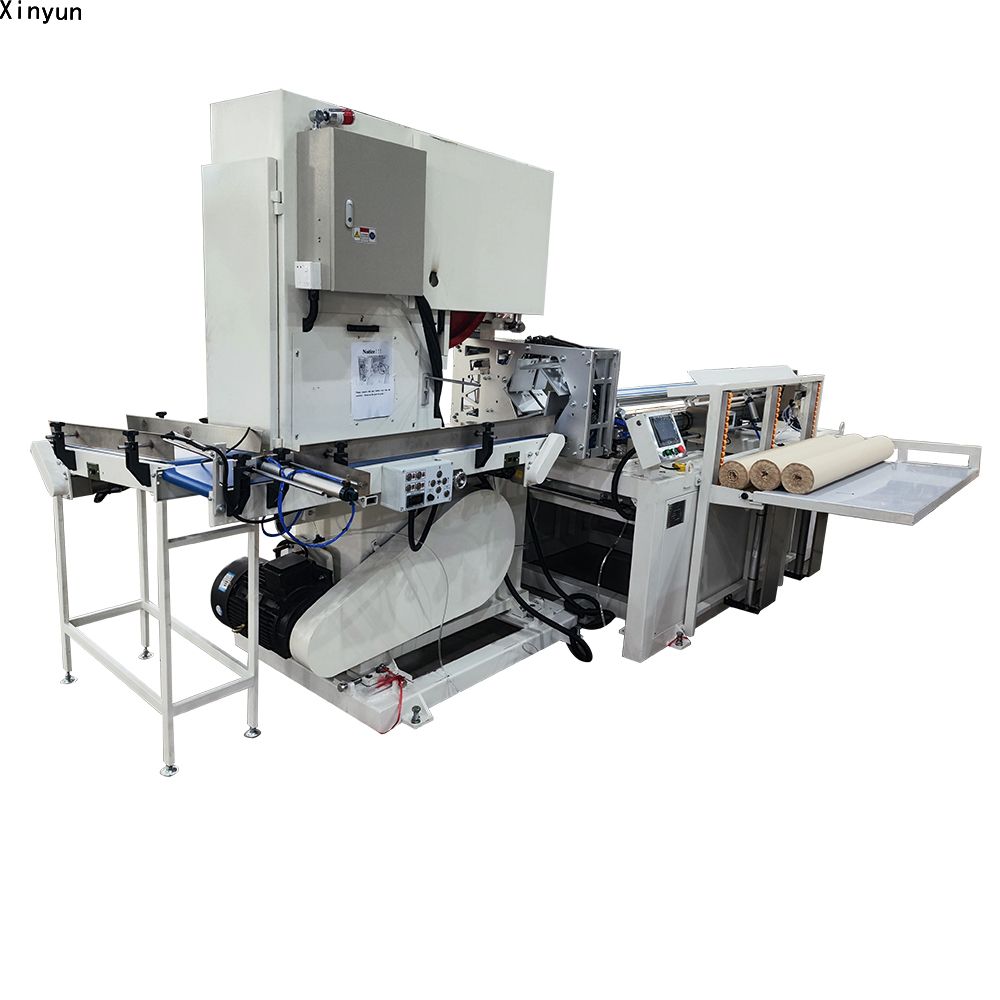

Automatic small bobbin paper band saw cutting machinery  XY-AI-500

Technical performance characteristic:

The equipment is the latest research and development which is the extension of the company with the current market situation. Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

Feature and function:

1.The main motor using the inverter independent drive.

2.For one set of machine, the cutting diameter of paper roll is adjustable as 150~250mm.

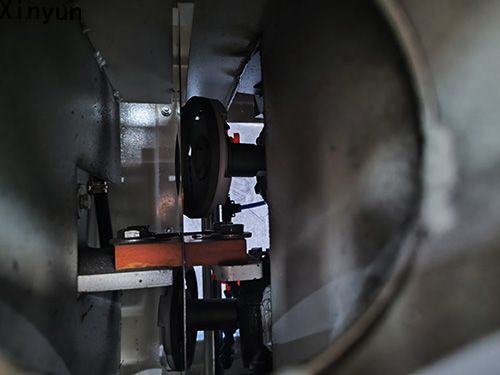

3.The equipment adopts automatic sharpening system, grinding wheel can be automatic feeding adjustment according to the blade loss.

4.The grinding system is equipped with an independent dust removal device to ensure the working environment.

5.The band saw adopts hydraulic tension system to ensure the tension of band saw.

6.It will be automatic stop and alarm when the knife is broken.

7.High precision servo system is used to ensure the quality of finished products.

8.According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.

9.The device stops working and prompts the interface when the input data is wrong.

10.Using band saw for cutting and reduces the cost of use of users.

11.The thickness of finished paper core should less 3mm(Suggestion)

Automatic maxi roll paper band saw cutting machine.jpgMain Technical Parameters:

Speed20-40 cuts/min

Toilet log length

≦2850mm(it can be made according to customer request)

Finished toilet roll diameter

150-300mm

Finished toilet roll length

≦400mm

Cutting tolerance

±1.5mm

Power

1kw 380V 50Hz

Cutting blade

5180*100*1.05

Overall size

5300*2350*2200 mm

Weight

2700KG

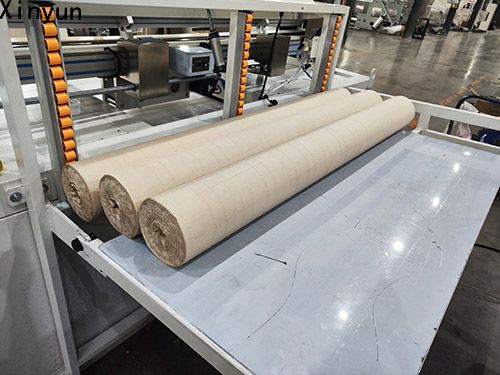

Storage board

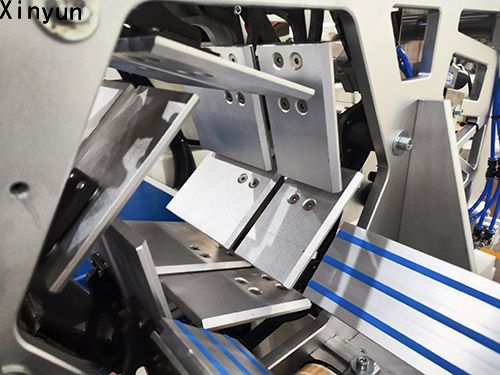

push device

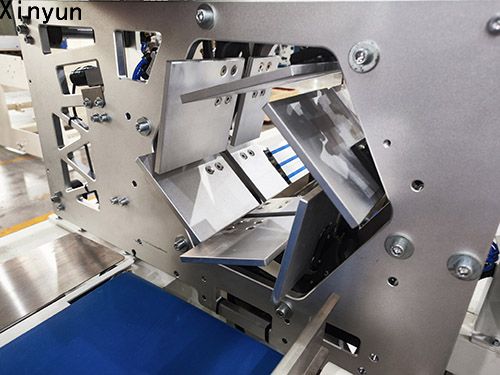

IMG_20190518_135146.jpgCutting device


Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

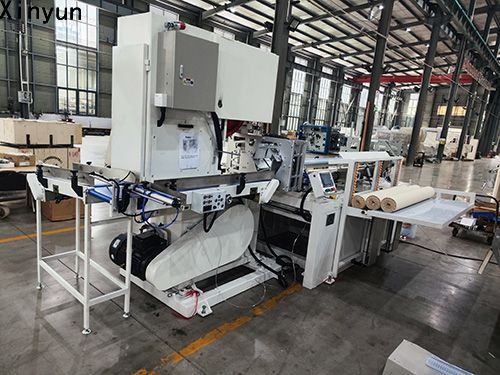

Workshop
