Technical Parameter
Semi automatic facial tissue paper making machine production line XY-GU-A-F
Automatic facial tissue production line is consist of automatic facial tissue folding machine and semi automatic facial tissue carton box packing machine.

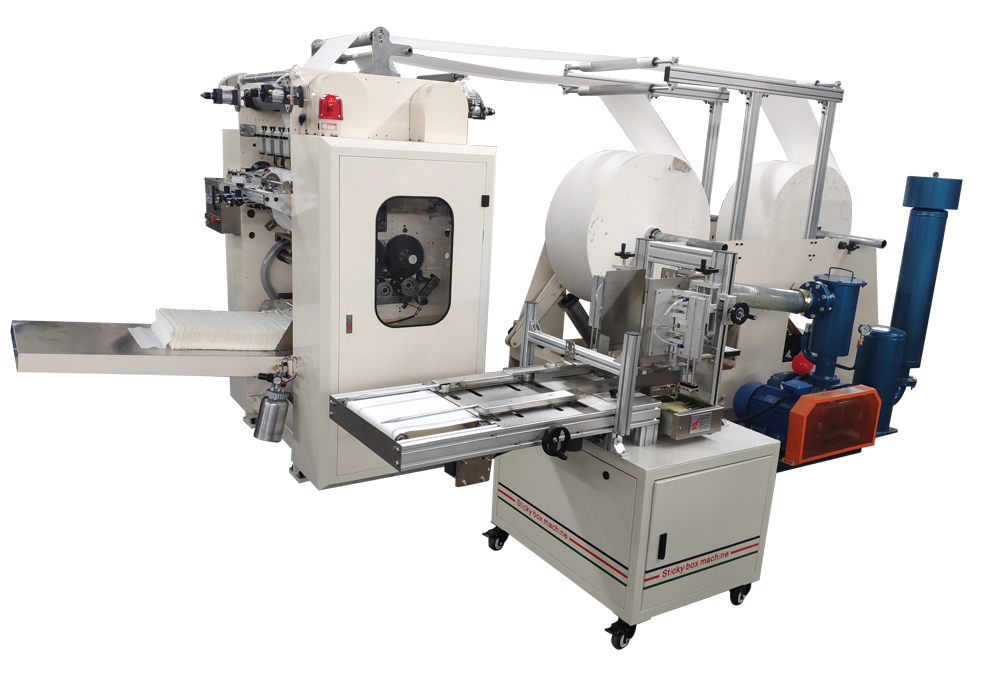

XY-GU-20A Automatic Box Drawing Facial Tissue Machine
Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished
products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best
choice of the production of tissue products.
XY-GU-20A Automatic facial tissue making machine working flow :The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and reciprocal folded into a sheet of rectangular or square facial tissue. This machine adopts independent servo motor drive ,and automatic paper tension control. It features of high speed ,nice folding and easy operation .
1. Configuration pneumatic embossing, pneumatic separation. (embossing customer selected)
2. Wallboard rack and fast machine running stability is excellent.
3. Pneumatic jumbo roll loading, pneumatic paper driving , Stepless speed ratio of adjustment ,and web tension control.
4. Equipped with roots type vacuum pump for stable running of the machine
5. Make various products width as requirement .
6. Equipped with edge embossing unit to keep the two plies together.
7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
8. The web can be threaded on the machine by the two jog buttons, It’s more safety and easier to thread the web.
Main technical parameter:
Machine model | XY-GU-20A |
Folded size of finished products | 100*(120-210)±2mm |
Unfold size of finished products | 200*210±2mm |
The width of jumbo roll paper | 1400mm |
Diameter of jumbo roll paper | 1200mm |
Diameter of jumbo roll paper inner core | 76.2mm |
Daily Output (8 hours) | 2000-6000Kg |
Embossing unit | Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation |
Slitting unit | Pneumatic slitting |
Power | 5.5KW Main motor |
1.5KW(2 sets) Jumbo roll paper stand | |
Vacuum suction unit | 18.5KW Fan |
Pneumatic system | 3 HP air compressor ,mini pressure 5kg/cm2PA |
Driving system | Timing belt |
XY-TN-117 Semi automatic facial tissue carton box packing machine
Application：
The machine is suitable for food, medicine, paper towels, toys, electronics and other packaging industries, with environmental protection, security, and efficient. The company is a professional manufacturer of food, medicine, paper towels, toys, electronics and other packaging industry. advantage. Is the preferred packaging industry today.
Presented to your company's products is our fifth generation of products, the product in the first four generations of products for customers in the actual use of the feedback to be modified, improved after the gluer has the following advantages:
1、Whole machine selection in line with environmental requirements, adjust food-grade standards for the whole appearance of treatment, most of devices adjust stainless steel.
2、The machine transmission part adjust two transmission parts (folder and plane transport), folder is responsible for the carton into the dispensing Department, the plane can be better with the artificial delivery box efficiency, reduce worker’s fatigue;
3、Transition is convenient, fast. The newest model adjust motor automatic adjustment, reducing the difficulty of transfer machine;
4、Fully enclosed structure, the appearance of simple fashion;
5、Optimize power consumption, conform new concept of energy saving;
6、Simple operation, high efficiency, low input costs.
Packing size | 80-300×40-200×25-120mm |
| Packing speed | 20-30 boxes/min |
The highest temperature | 230 ℃ |
Power | 3.2KW 220V 50Hz single phase |
Air pressure | 0.6Mpa-0.4Mpa |
The gas consumption | About 400L / h (normal operation) |
Specifications | 1750×850×1300mm |
| Weight | 350 kg |
