Technical performance characteristic：

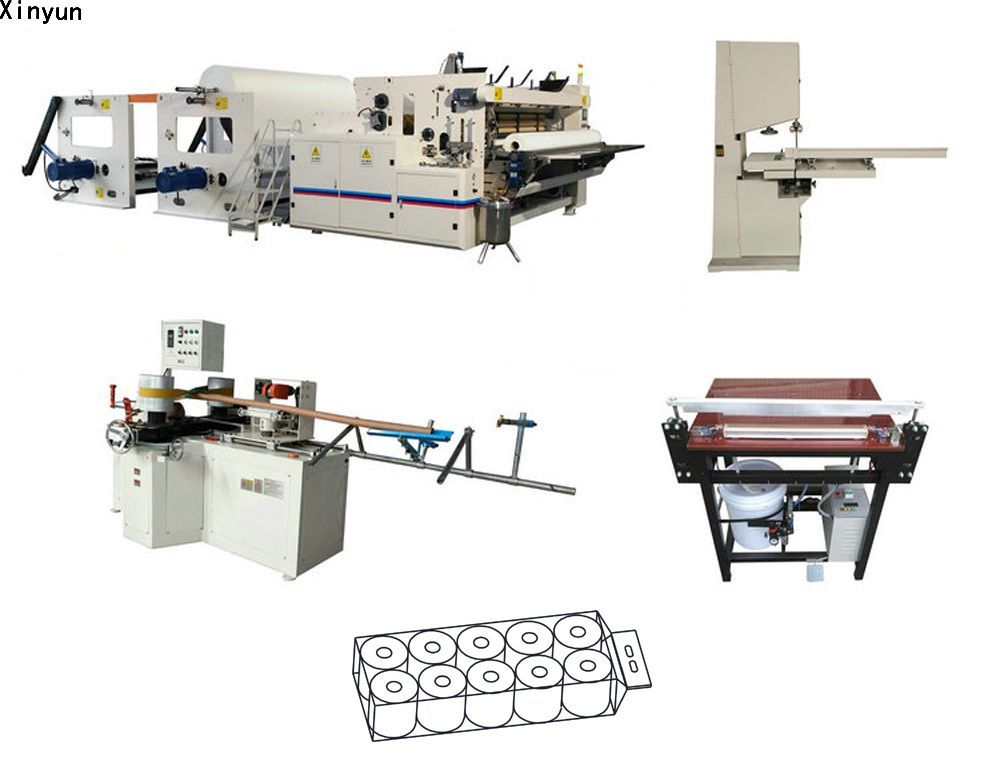

This production line consist of fully Automatic Rewinding Machine, manual band saw cutting machine, semi automatic plastic bags sealing and toilet paper core machine machine. From the jumbo roll into the finished rolls, it is lower cost machine to start toielt paepr.

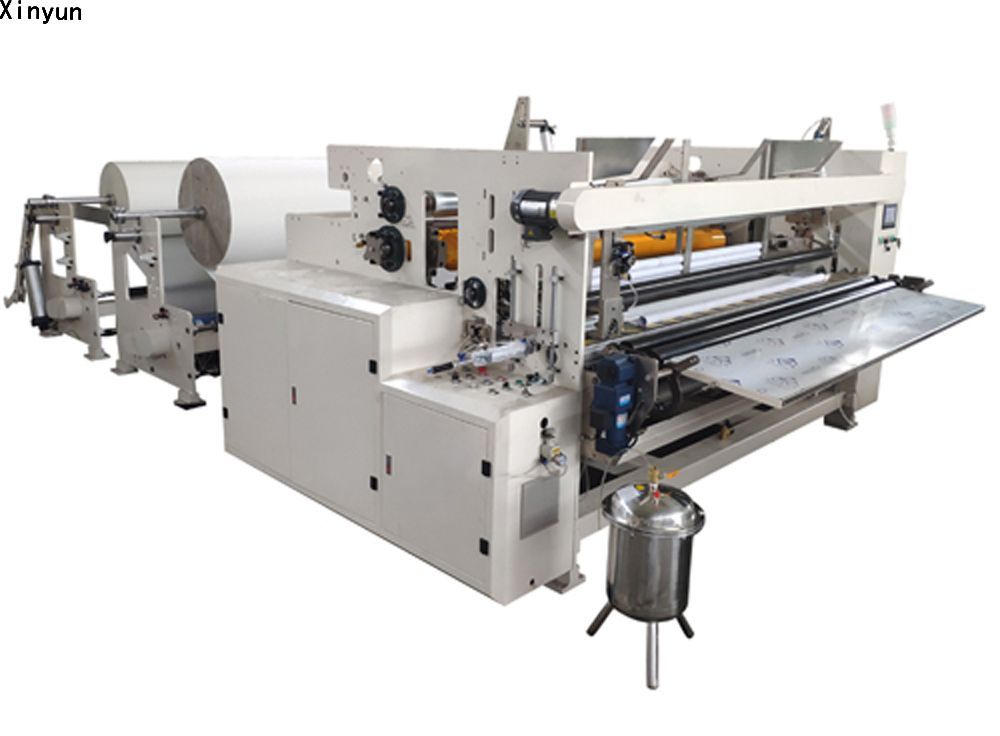

XY-TQ-B Automatic toilet paper rewinding machine
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Function and Features:
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Main Technical Parameters:
|The width of jumbo roll||1200-2800 mm|
|The diameter of jumbo roll||1200 mm(Other size can be specified)|
Jumbo roll inner core diameter
Finish product diameter
Finish product Inner core diameter
|4 anvil Blades 90-150mm;2 anvil Blades 180-300mm|
|Embossing device||Steel to rubber|
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user）
With core or coreless

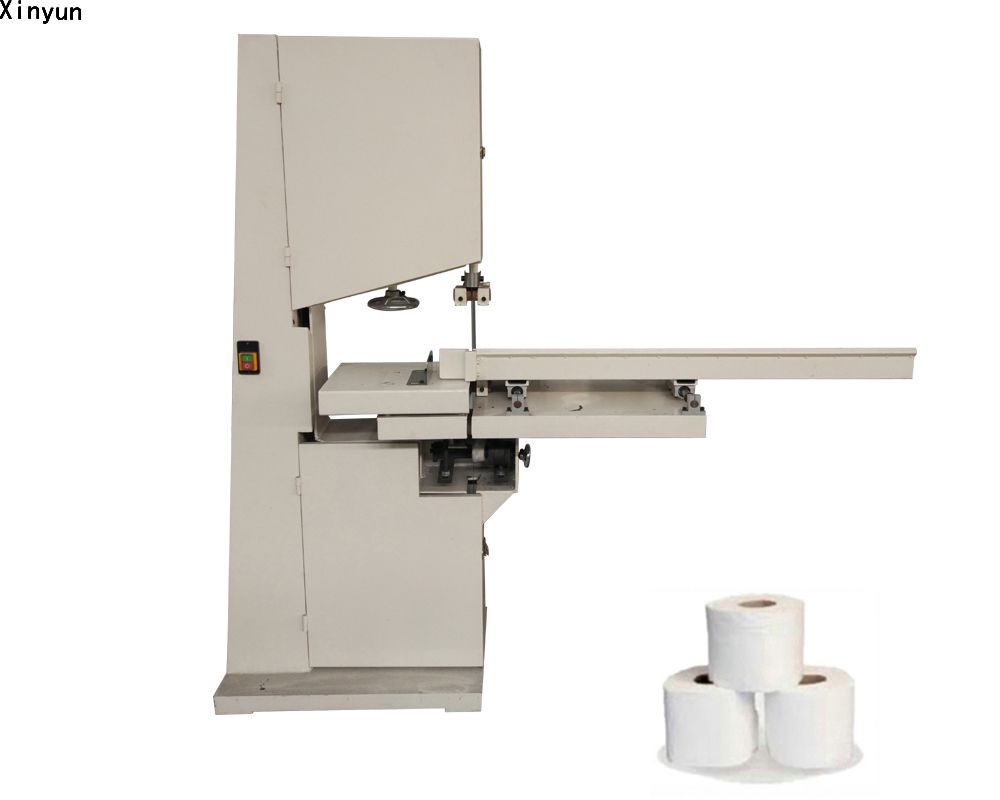

Semi automatic toilet paper band saw cutting machine
Functions and features
This machine is the equipment for cutting paper.The main function is to cut the rewinded big toilet paper into various kinds of standard small rolls.
The machine is compose with stander , saw blade drive, adjustment, tension , saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation .
Main technology parameter:
|Cutting diameter||70-250 mm|
|Cutting length||60-250 mm|
|Power||2.2Kw 380V 50Hz|

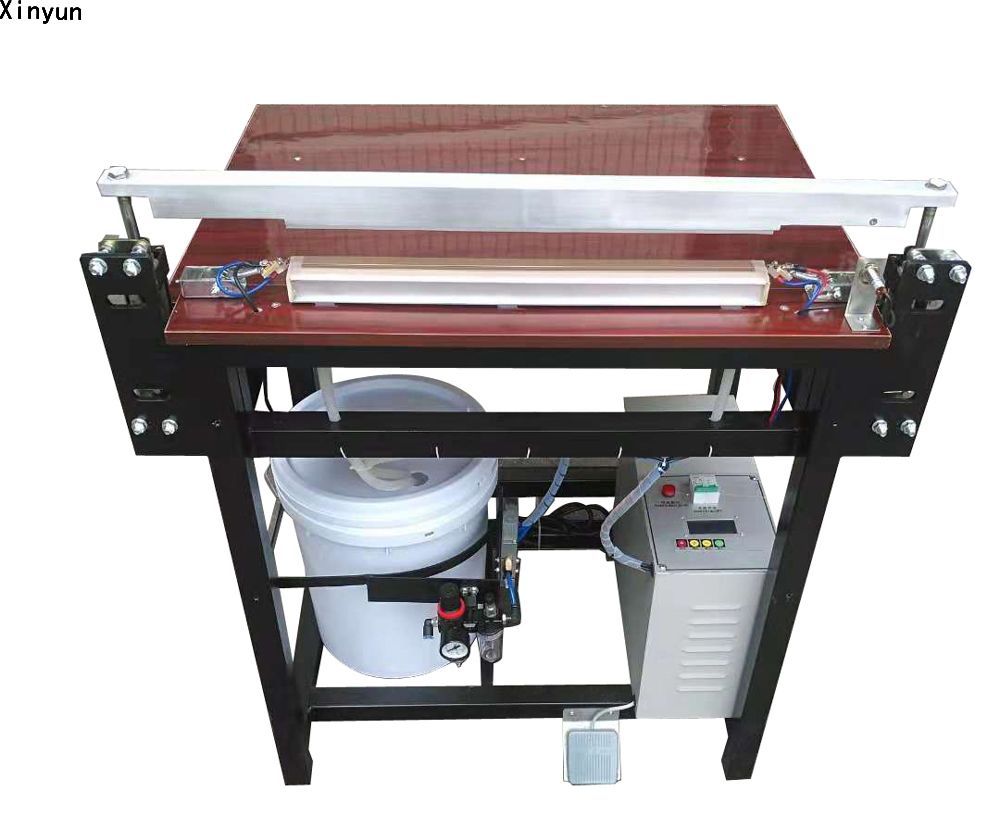

Semi automatic toilet paper packing machine
This Machine are designed with digital dual temperature control, suitable for various kind of seal and cut applications and high performance, external packing for Facial Tissue, Toilet Paper Roll, Kitchen Towel, Napkins Paper etc. simple and easy seal and cut in one time.
1. Machine are the pioneer to use mini PLC and screen adjustable temperature range ensure fast efficient and accurate seal and cut operation.
2. Water cooled and dual temperature digital control design allows perfect seal and cut, equipped with heat press label for product production date.
3. Dual digital temperature control enable damage to heat thread, protection tape and air cylinders, big save for downtime and running cost.
4. Machine operation width 490mm, and different thickness of bags can be seal and cut easily by adjusting the temperature control to achieve rapid steady operation and not disturbed by room temperature difference at all times.
Width of Flat Seal Thread
Max sealing width
Diameter of Round Thread
Nickel Chrome Thread
1.5KW (220V 50HZ)
0.3-0.5mpa （provided by customer)

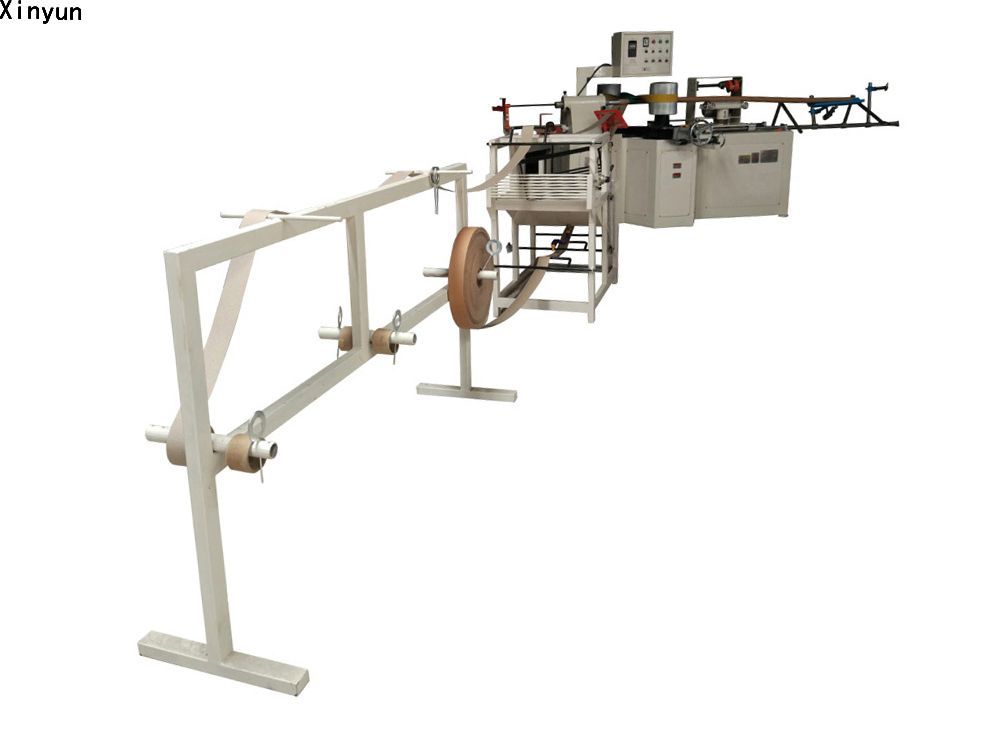

XY-SD-A Automatic toilet paper core machine
Roll core machine is for making the paper core inside the toilet paper roll. It consists of three parts: raw material stand, glue unit, rewinding and cutting unit. It can make
different thickness and different diameter paper core by changing the mould. This
machine easy to operate, running stable, can work with toilet paper rewinding
Functions and features:
1. Inverter control to ensure the accuracy of the length of paper tube2. Automated online on plastic, paper tube and cut off
3. Product diameter and length can be customized according to customer needs
4. Products are widely used in toilet paper. Plastic and textile industry
5. The machine has reasonable design. operation simple and convenient maintenance
Main Technical Parameters:
|Diameter of paper core||25-100 mm|
|Thickness of paper core||2-30 plys|
|The width of kraft paper||50-70 mm|
Paper grams amount
|Power||4.5Kw 380V 50Hz|
