Hot selling glue lamination small toilet paper making machine production line
Technical performance characteristic：

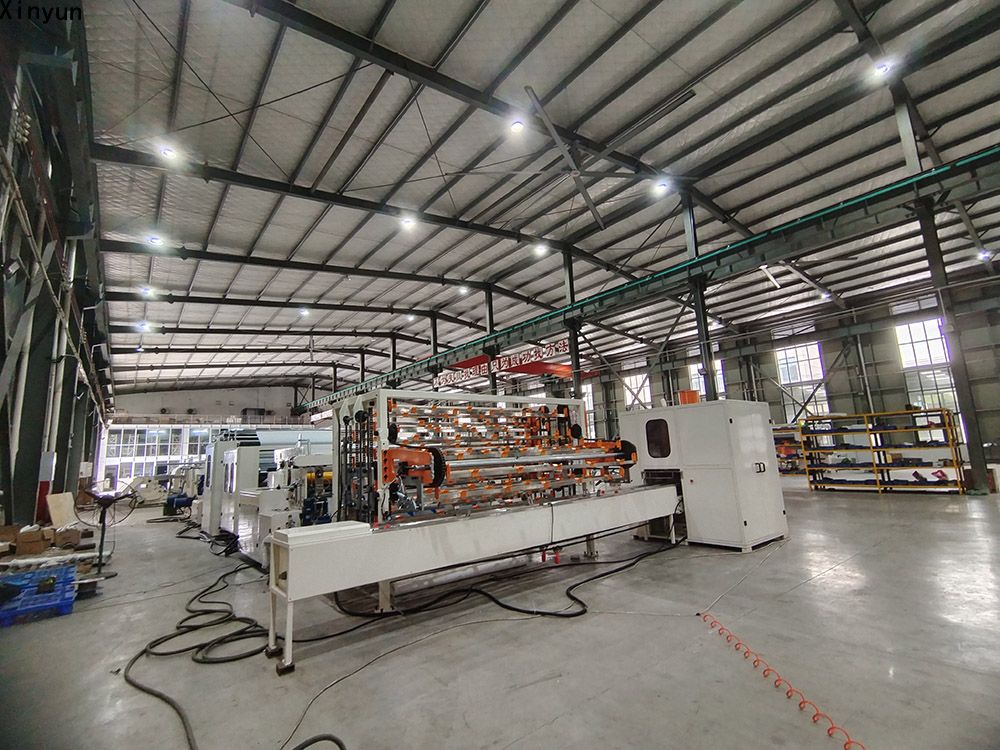

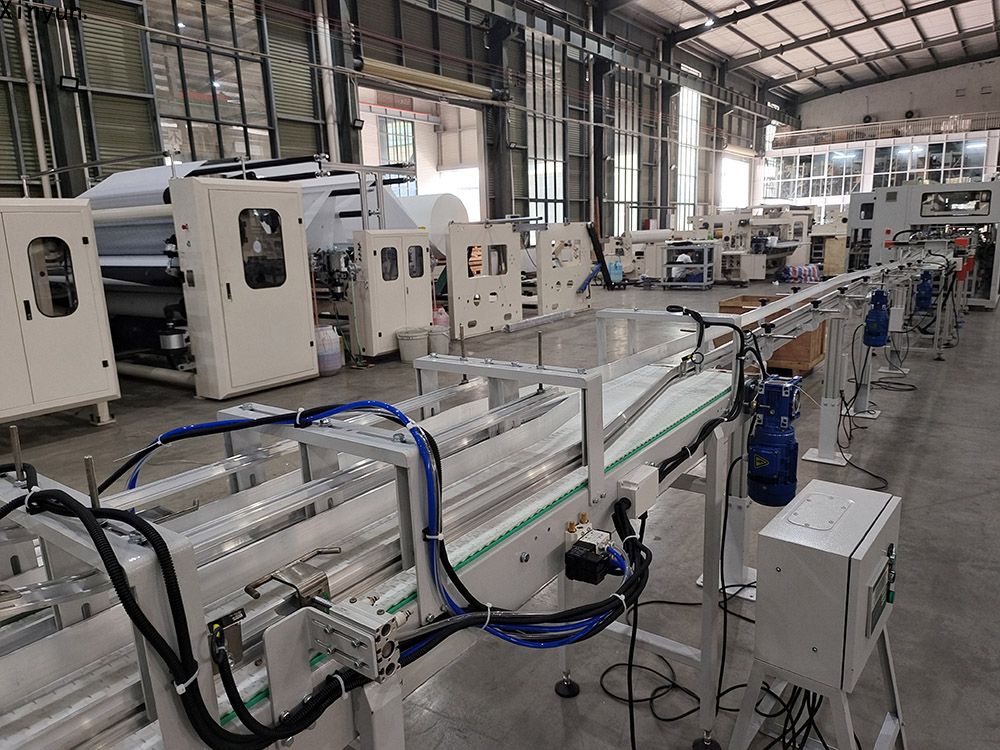

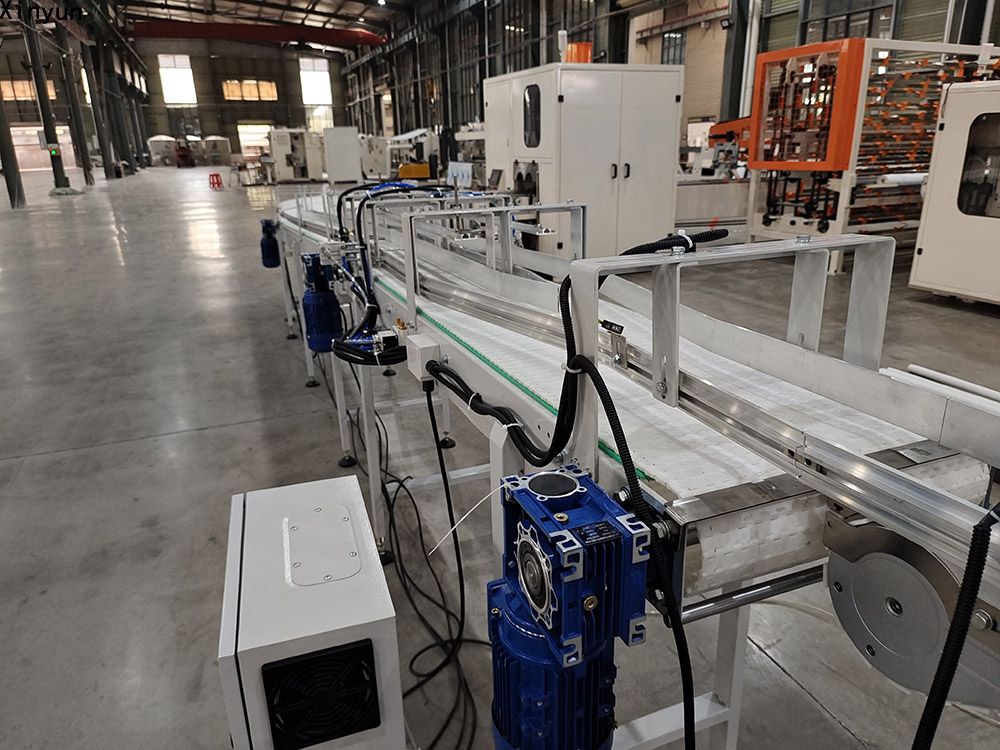

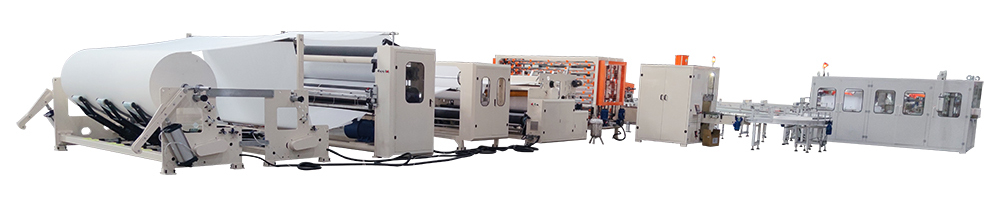

This production line consists of Wall Type Automatic Rewinding Machine, Automatic Log Accumulator,Double Channel Log Saw and Automatic Packing Machine. From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.
Video Link: https://youtu.be/v9_xa-lZa2M
Functions and Features

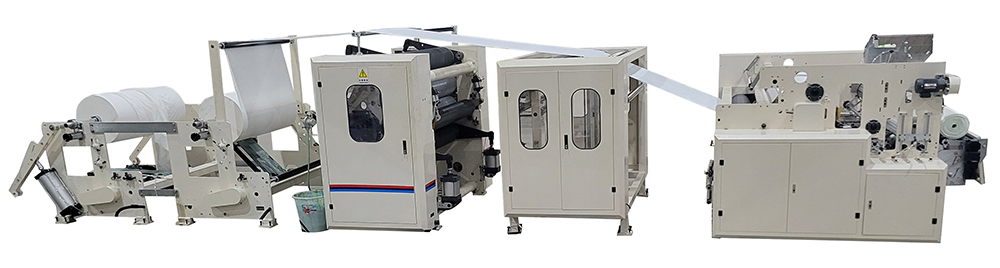

1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.

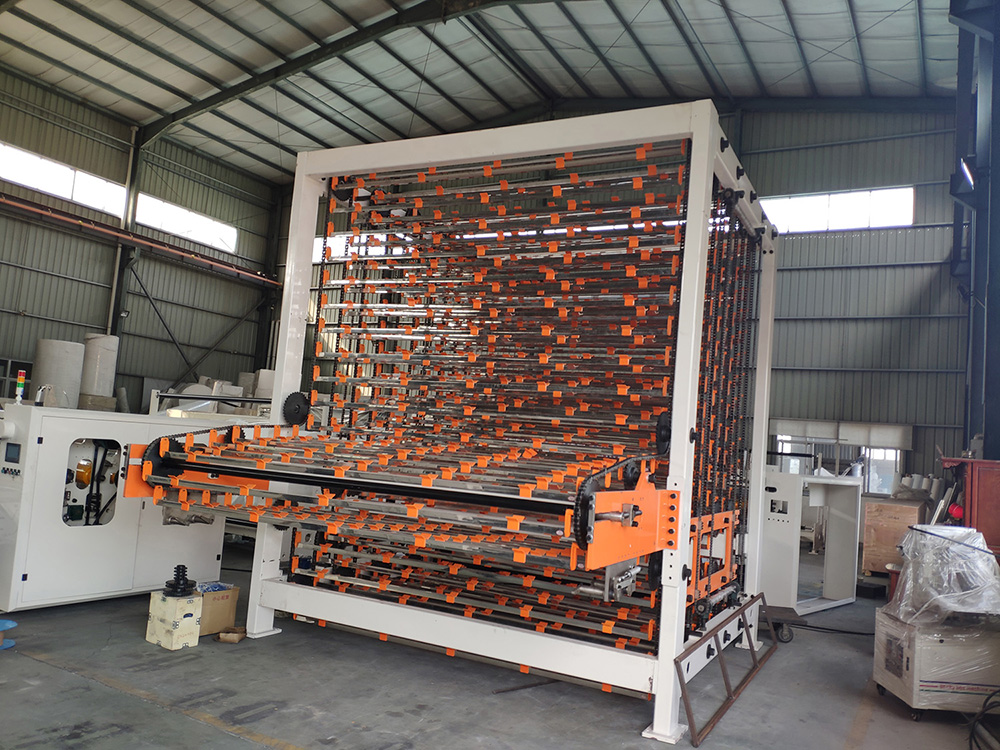

Automatic log accumulator machine

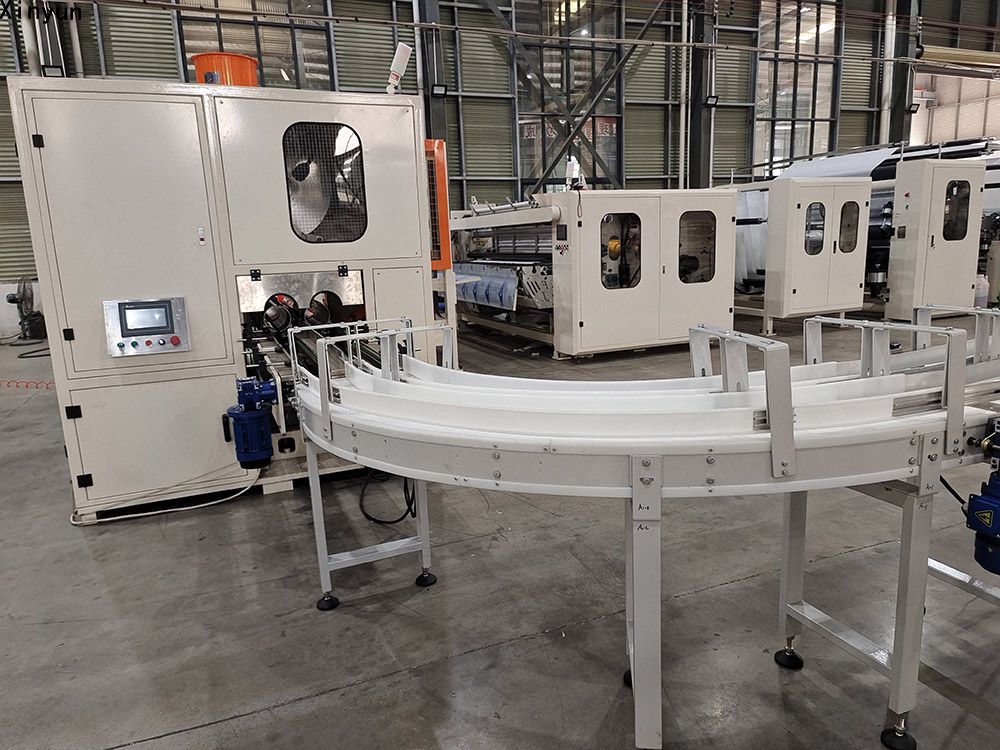

Automatic toilet paper log saw cutting machine
XY-TQ-280 Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it’s with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.

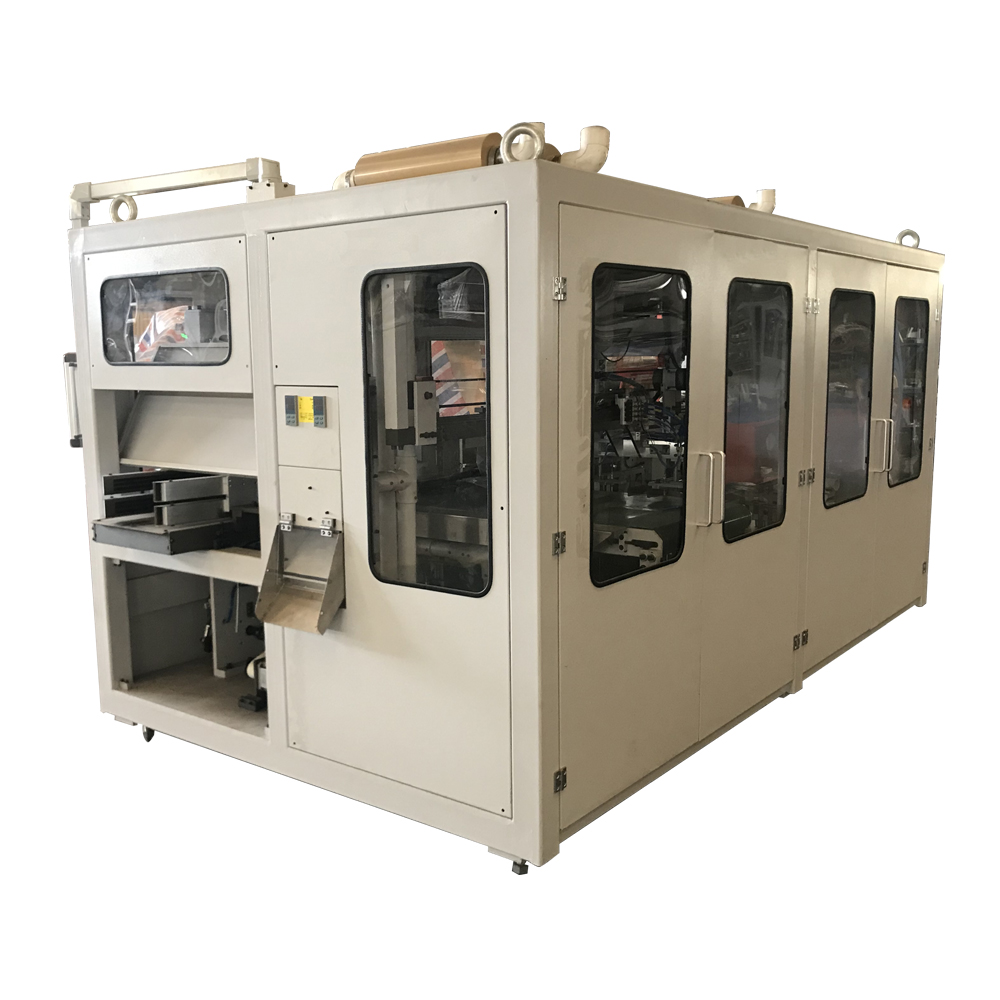

XY-AI-398 Automatic toilet paper packing machine
◆ Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 rolls in one bag).
◆ Can be connected with log saw or single roll wrapping machine.
◆ Servo system,PLC controlled.
◆ Auto feeding, auto adjustment.Adopting high quality sensors.
◆ Operated by color touch screen display.
◆ Emergency stop/ pause function, safety alarm system, air and electric power protection system.
◆ Adopting constant temperature sealing and cutting system.
