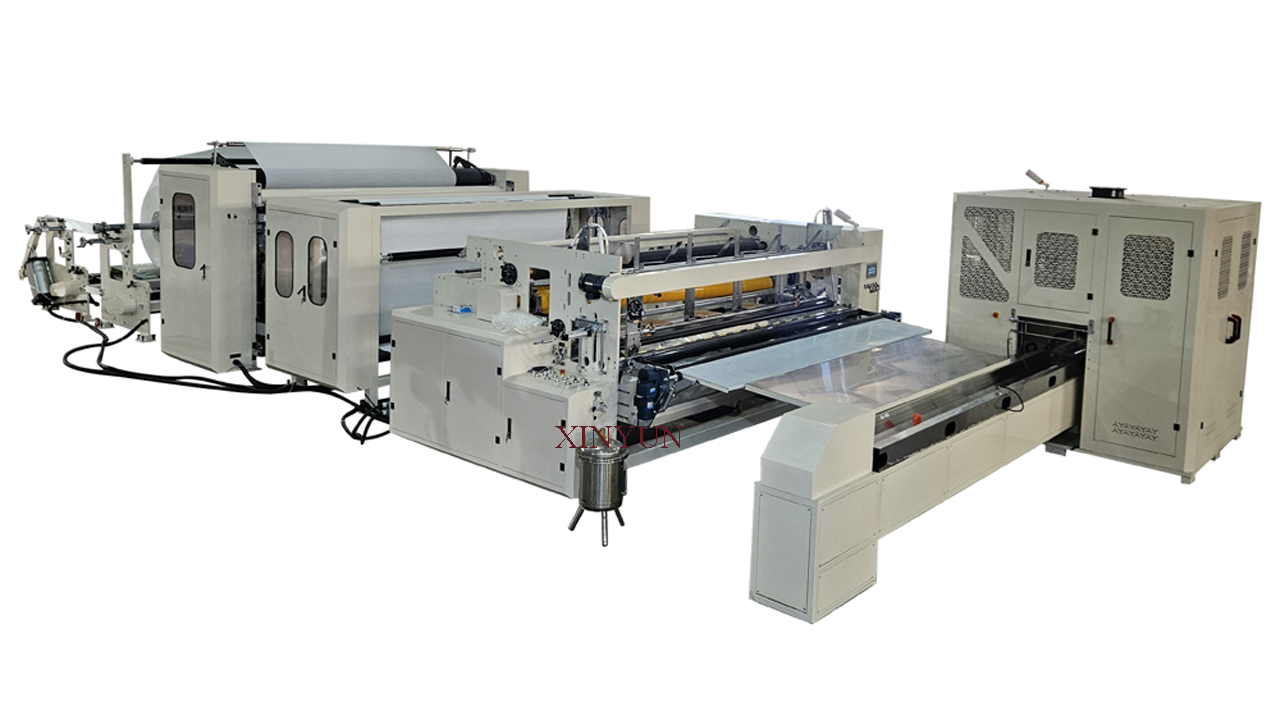

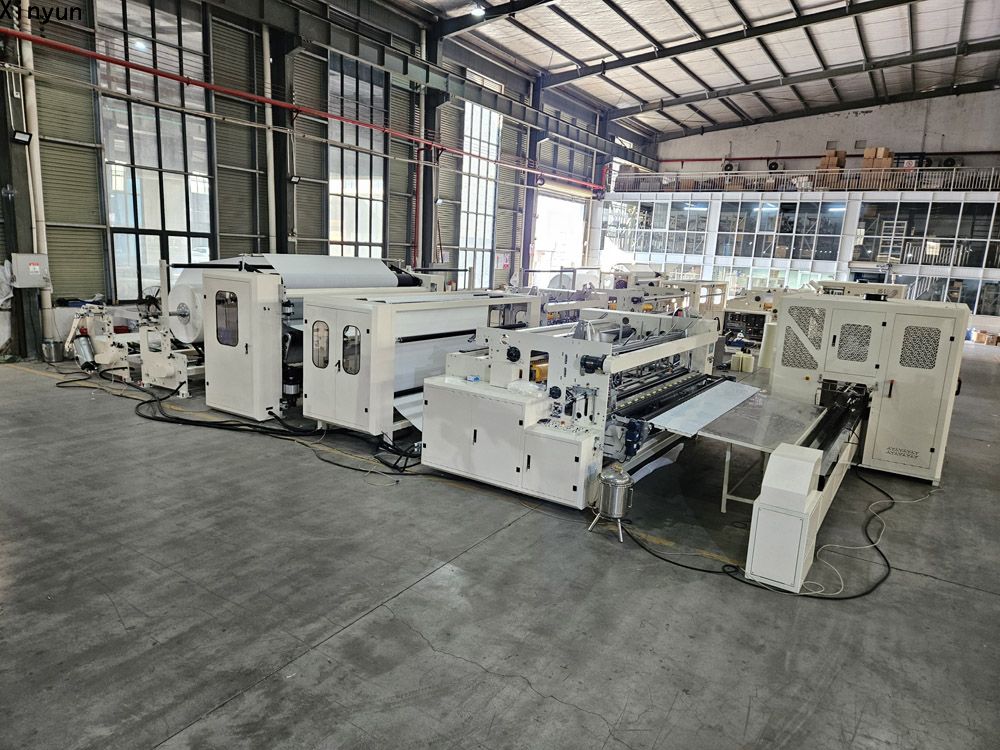

This production line consists of Fully Automatic Rewinding Machine, automatic log saw machine and automatic shrink packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.

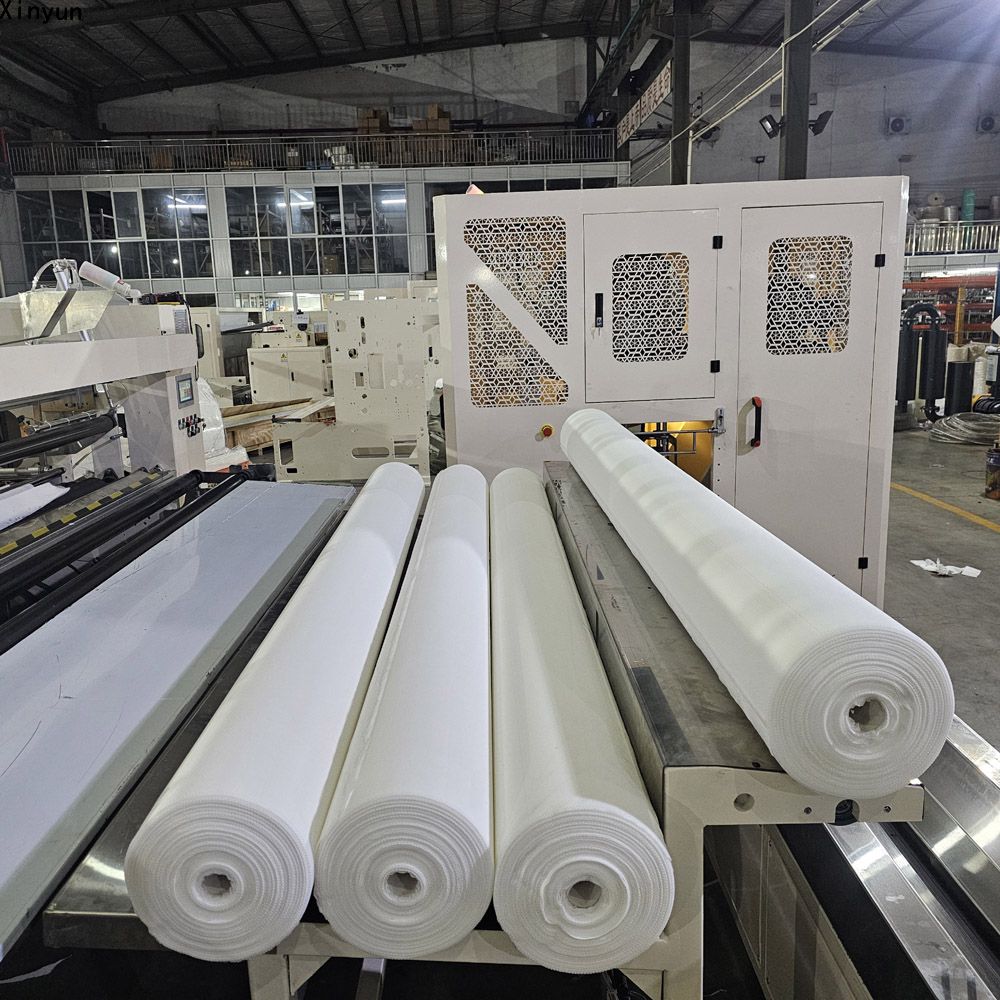

Automatic small bobbin paper log saw cutting machine production line
XY-TQ-A-H
Technical performance characteristic：
This production line consists of Wall Type Automatic Rewinding Machine, log saw cutting machine and automatic shrink packing machine From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll paper products.

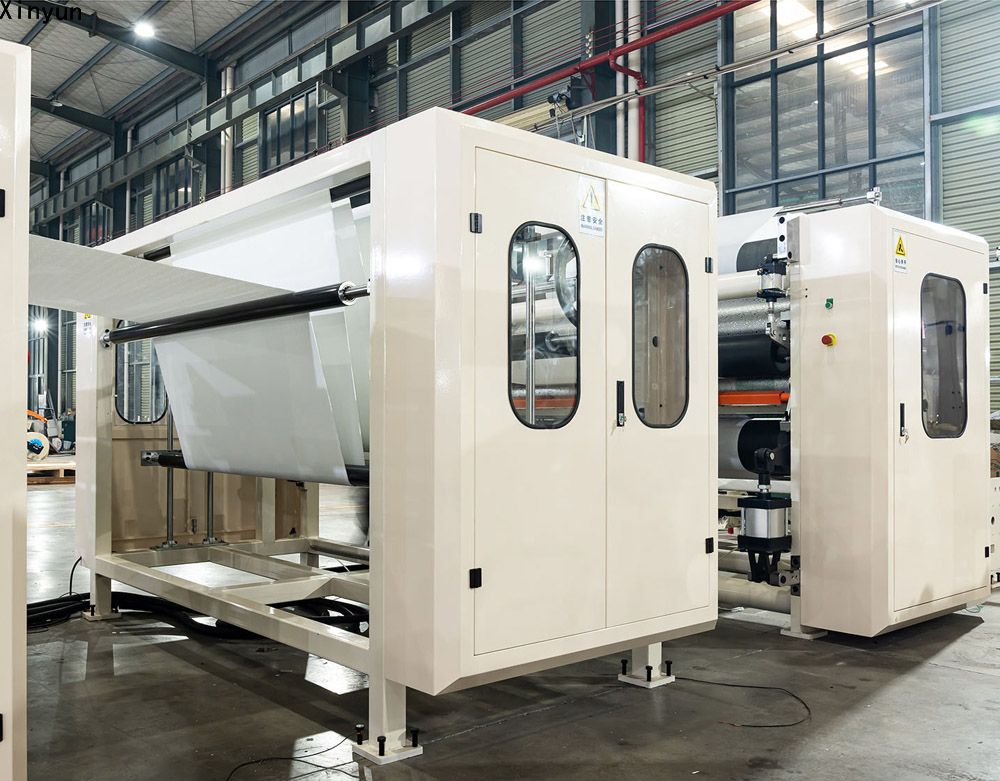

Automatic maxi roll paper rewinding machine
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.

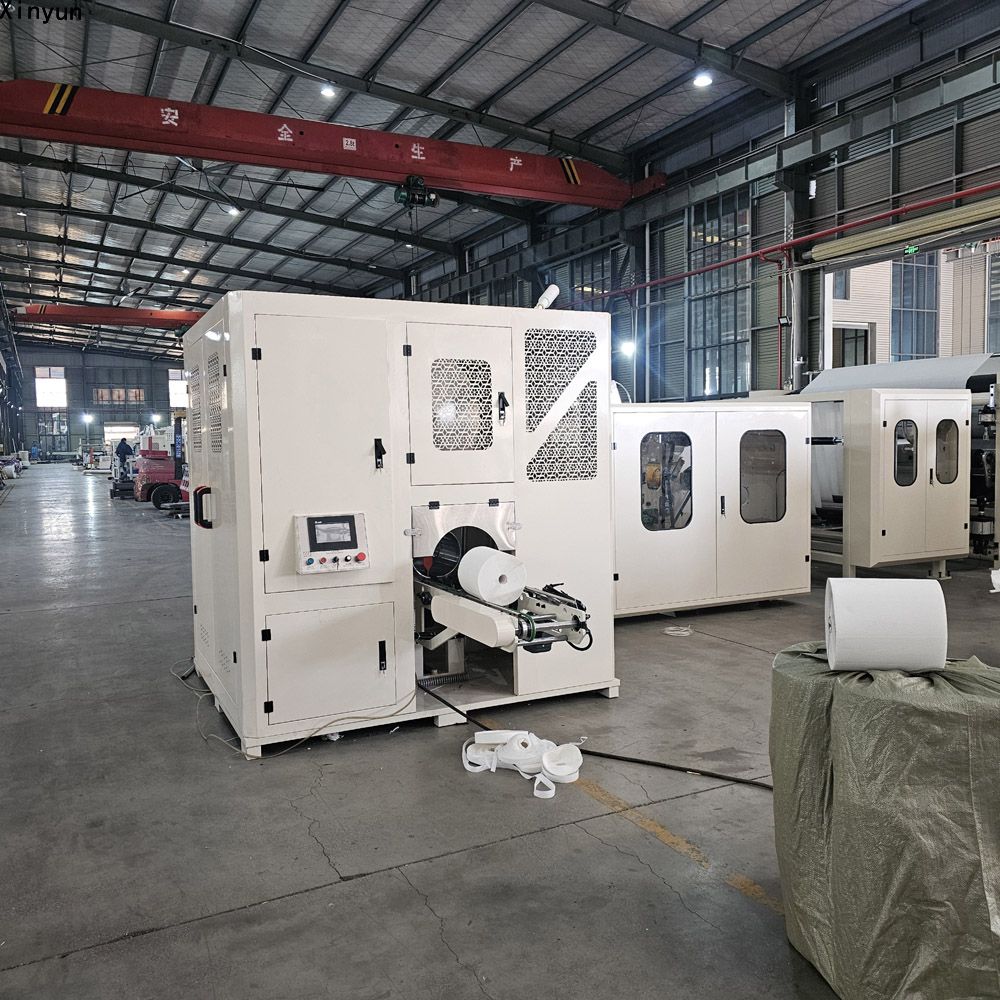

Automatic maxi roll paper band saw cutting machine
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Automatic maxi roll paper shrink packing machine
Automatic cutting sealing and temperature shrink machine is using shrink film package the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.
Our service
Workshop
Our company
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
| The width of jumbo roll | 1200-2800 mm |
| The diameter of jumbo roll | 1200 mm(other size can be specified) |
| Jumbo roll inner core diameter | 3 inchse(76.2 mm) |

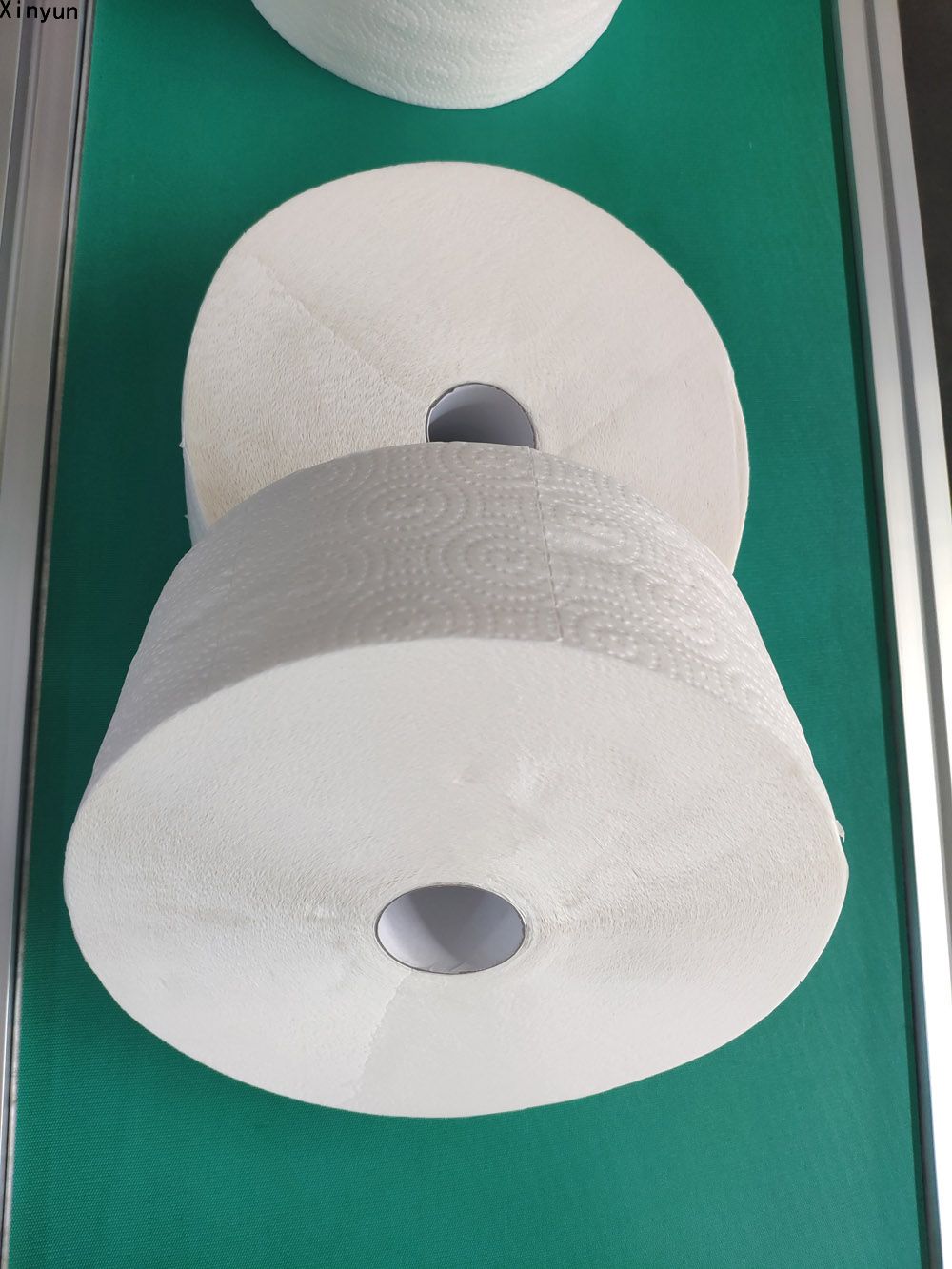

| Finish product diameter | 90-300 mm |
| Finish product inner core diameter | 38-90 mm |
| Perforation distance | 4 anvil Blades 90-150mm;2 anvil Blades 180-300mm |
| Speed | 200 m/min |
| Embossing device | steel to rubber |
| Pneumatic system | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
| Rewinding Unit | With core or coreless |
Technical performance characteristic：
The equipment is the latest research and development which is the extension of the company with the current market situation. Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
| Speed | 20-30 cuts/min |
| Cutting diameter | 150-260 mm(change model when cut different diameter) |
| Cutting length | 90-300 mm(adjustable) |
| Power | 11 Kw 380V 50Hz three phase |
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
