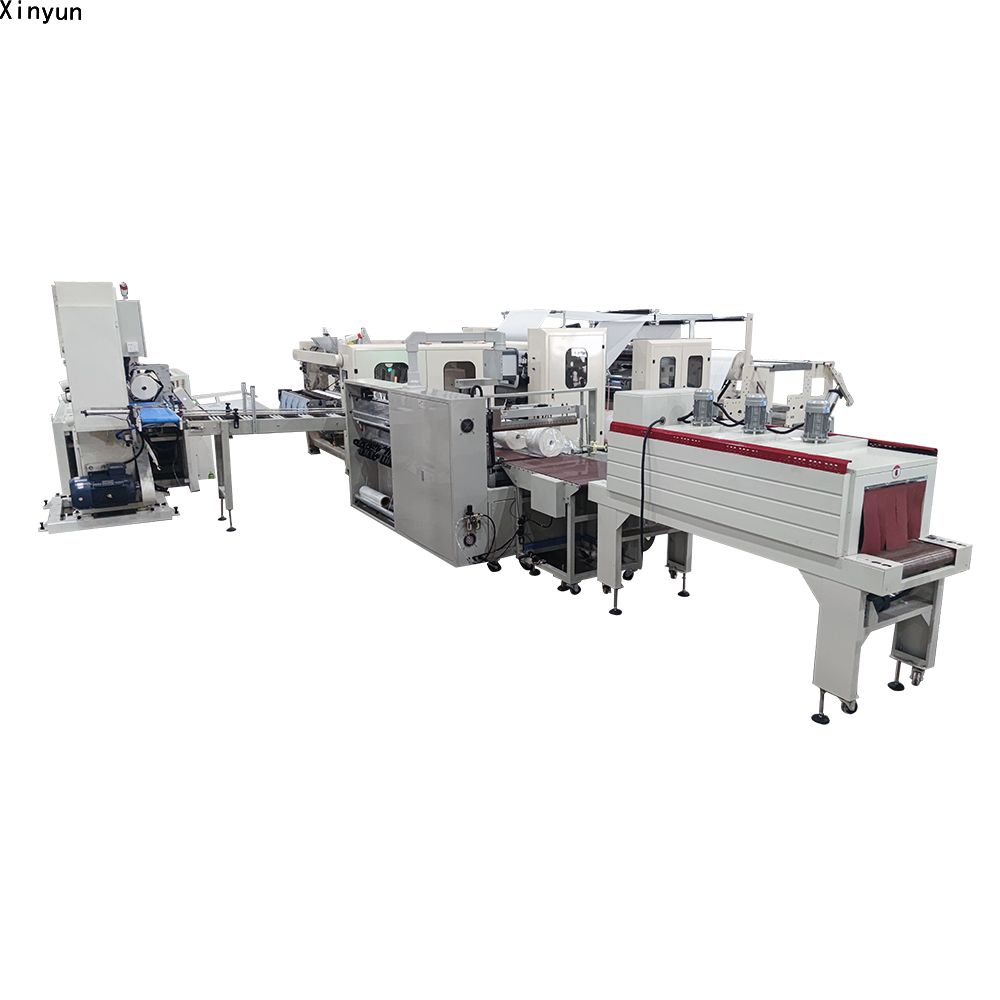

Automatic labeling maxi roll gluing lamintation production line  XY-TQ-A-H

Technical performance characteristic：

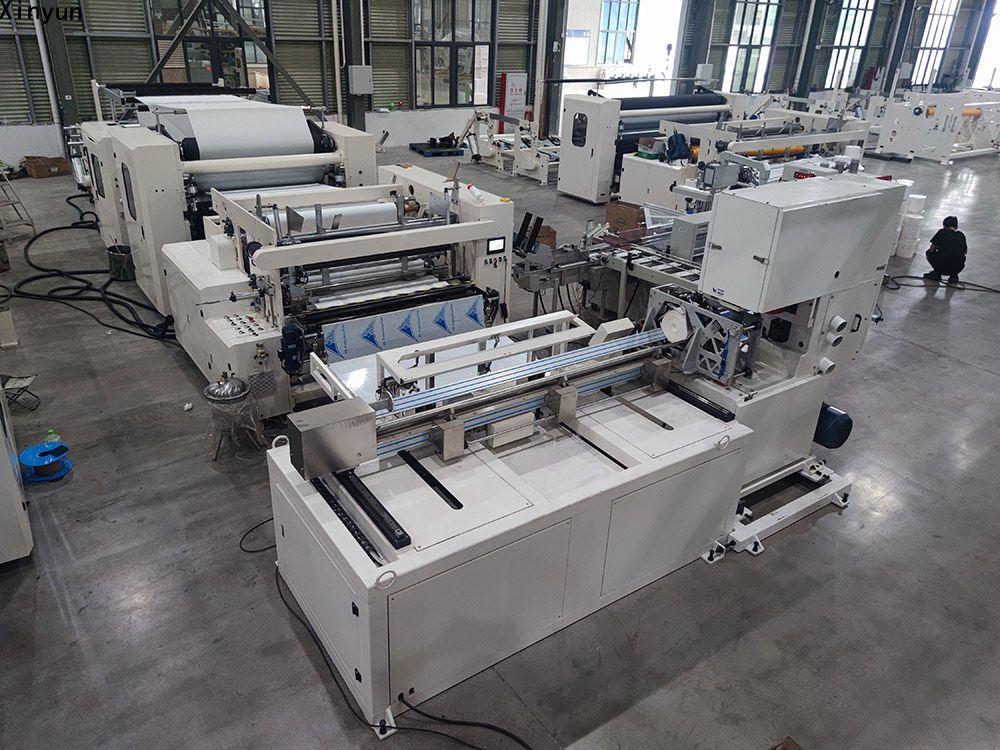

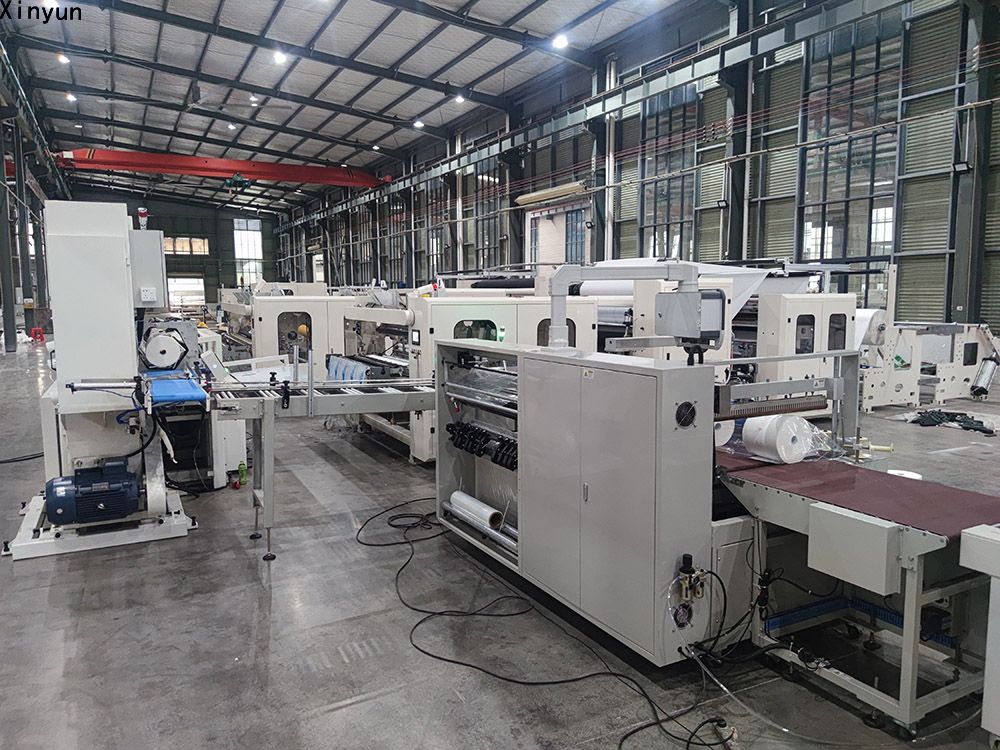

This production line consists of Wall Type Automatic Rewinding Machine, Band saw cutting machine and automatic shrink packing machine From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll paper products.

Automatic maxi roll paper rewinding machine

Functions and Features

1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.

2. Perforation distance is adjustable to meet different distance needs.

3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.

4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.

8. Adopt jogging switches for wearing the paper, easy and safe to operate.

Automatic maxi roll paper band saw cutting machine

Functions and Features

1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.

2. Perforation distance is adjustable to meet different distance needs.

3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.

4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.

8. Adopt jogging switches for wearing the paper, easy and safe to operate.

Automatic maxi roll paper shrink packing machine

Automatic cutting sealing and temperature shrink machine is using shrink film package the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.

Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

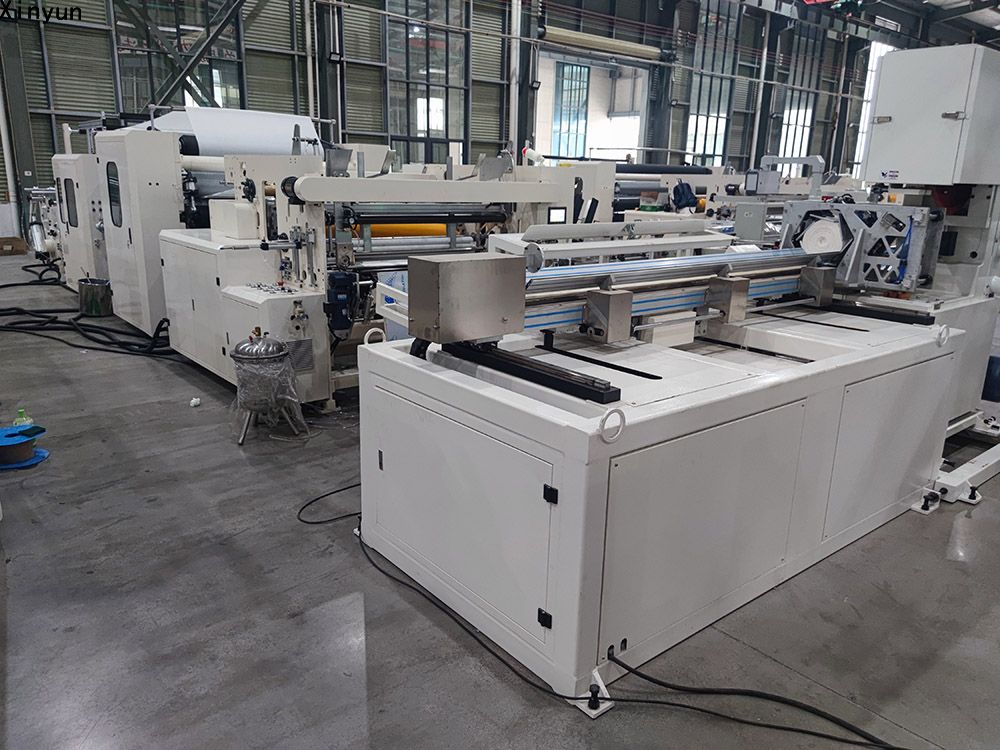

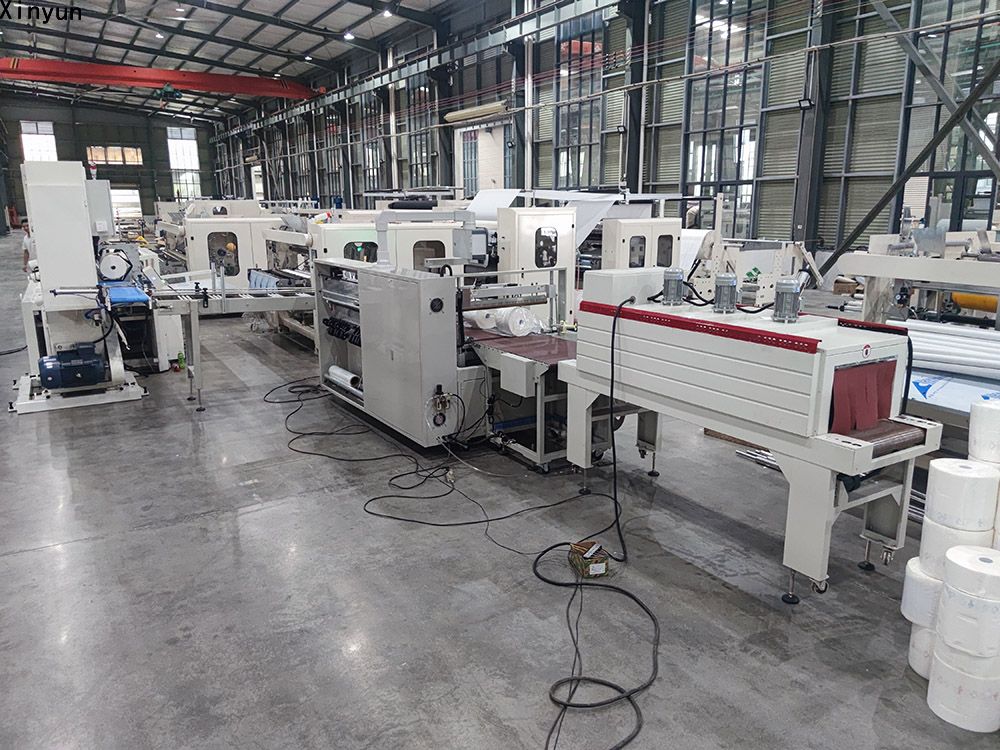

Workshop

Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.

Automatic maxi roll rewinding machine    XY-TQ-B

Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy  to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Jumbo roll standard

Doctor blade gluing lamination device

Paper accumulator device

Embossing device

Perforating device

Tail-gluing— Edge trimming

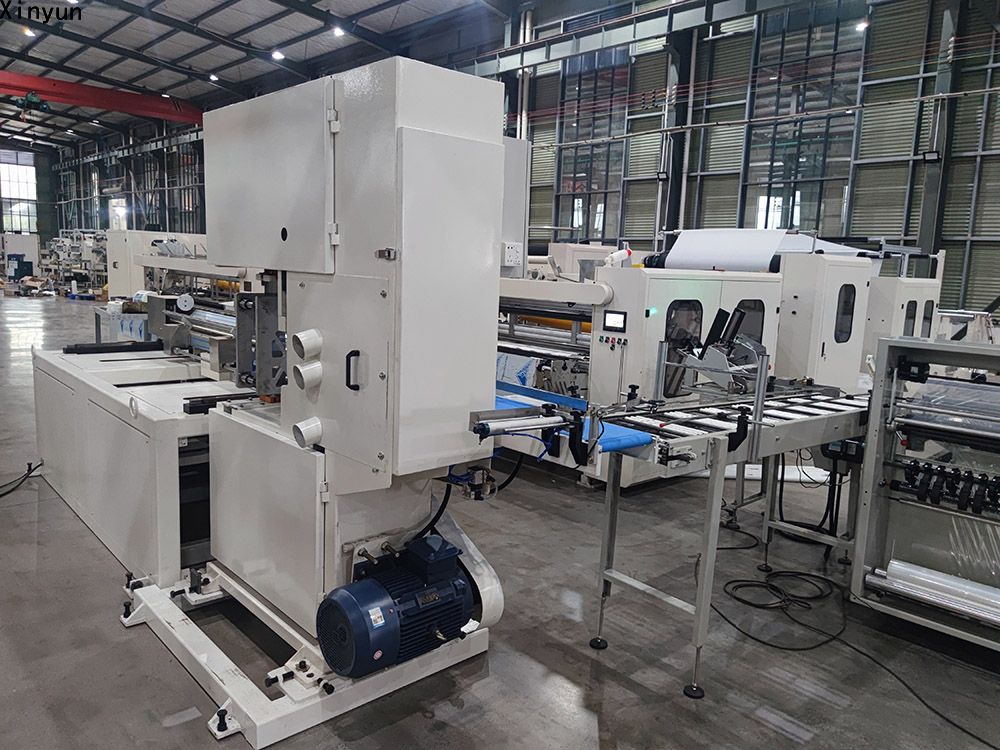

Automatic maxi roll paper band saw cutting machine  XY‑AI‑500

Technical Performance Characteristics

The XY-AI-500 is a high-speed automatic small bobbin paper band saw cutting machine developed according to current market requirements. It adopts PLC program control, a large true-colour human-machine interface, precise servo-controlled feeding and integrated electromechanical control. The system automatically detects each key operating action and provides clear fault prompts, helping the machine maintain a stable working condition.

1. The main motor uses an independent inverter drive.

2. The cutting diameter is adjustable from 150 to 300 mm on one machine.

3. The machine adopts an automatic blade-sharpening system. Grinding-wheel feeding can be adjusted automatically according to blade wear.

4. The grinding system is equipped with an independent dust-removal device to help maintain a clean working environment.

5. The band saw uses a hydraulic tensioning system to maintain stable blade tension.

6. The machine stops automatically and issues an alarm if the blade breaks.

7. A high-precision servo system helps ensure consistent finished-product quality.

8. The quantity of finished products can be calculated automatically according to the raw material and required finished-product length.

9. If incorrect data are entered, the machine stops and displays a prompt on the interface.

10. Band-saw cutting helps reduce the customer’s operating costs.

11. The recommended finished paper core thickness is less than 3 mm.

Cutting-range note: The cutting diameter is stated as 150–300 mm in accordance with the existing technical parameter table.

Storage board

push device

Cutting device

Automatic labeling maxi roll shrink packing machine  XY-TN-269

Application：

The automatic cutting, sealing and heat-shrink machine packs maxi roll or JRT roll paper products in shrink film. After heating, the film contracts tightly around the rolls to form a complete package.

The machine combines product labeling, film sealing and heat shrinking, helping protect finished rolls and improve packaging appearance.

It can be used as an independent packing machine or connected to compatible maxi roll or JRT roll cutting and conveying equipment.

Optional High-Speed Two-Roll Labeling Configuration

The XY-TN-269 can be configured for high-speed packaging of two JRT paper rolls in one shrink-wrapped pack.

In this optional configuration, two rolls are grouped, labeled and wrapped in shrink film before entering the heating section. The film then contracts around the two rolls to create a compact and presentable package.

The two-roll grouping format, label size, label position and film specification shall be confirmed according to the customer’s finished JRT roll sample.

Configuration note: The high-speed two-roll labeling function is an optional packaging configuration of the XY-TN-269. It does not change the main machine model or the technical parameter values listed below.

Main Technical Parameters:

Application note: The listed parameters apply to the XY-TN-269 maxi roll and JRT roll shrink packing machine. The two-roll format must remain within the applicable packing-size range.

Capacity note: Actual operating speed depends on the roll diameter, two-roll grouping dimensions, label specification, shrink-film characteristics and upstream product-feeding conditions.
