Automatic kitchen towel paper toilet paper making machine production line

XY-TQ-A-G

Technical performance characteristic：

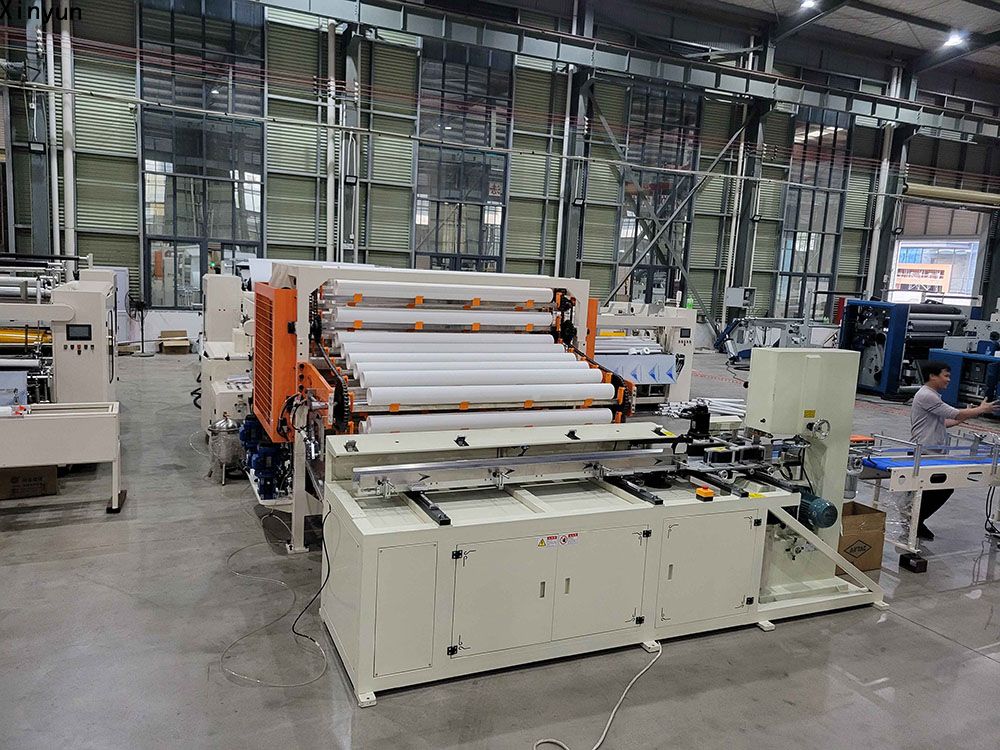

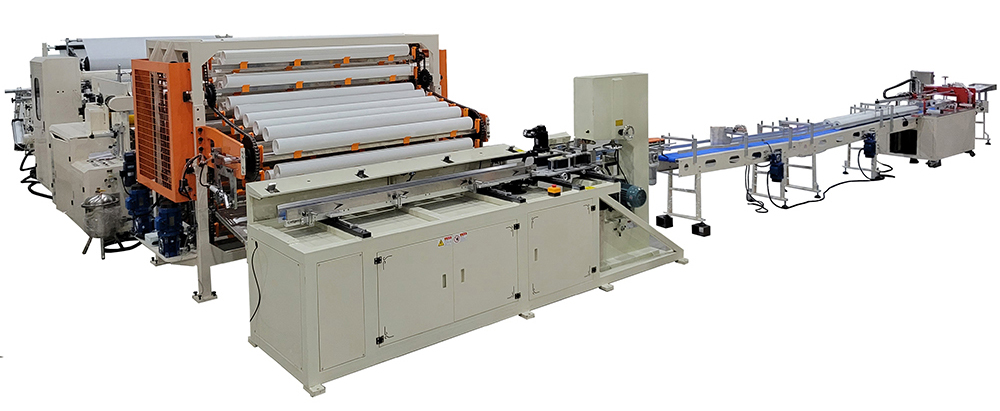

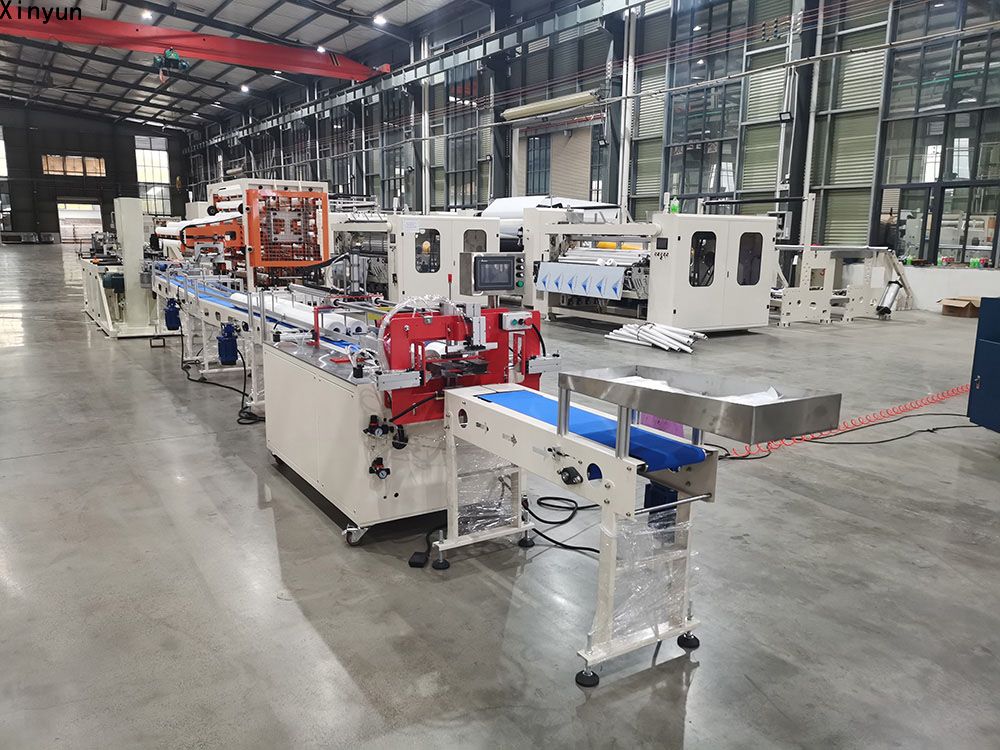

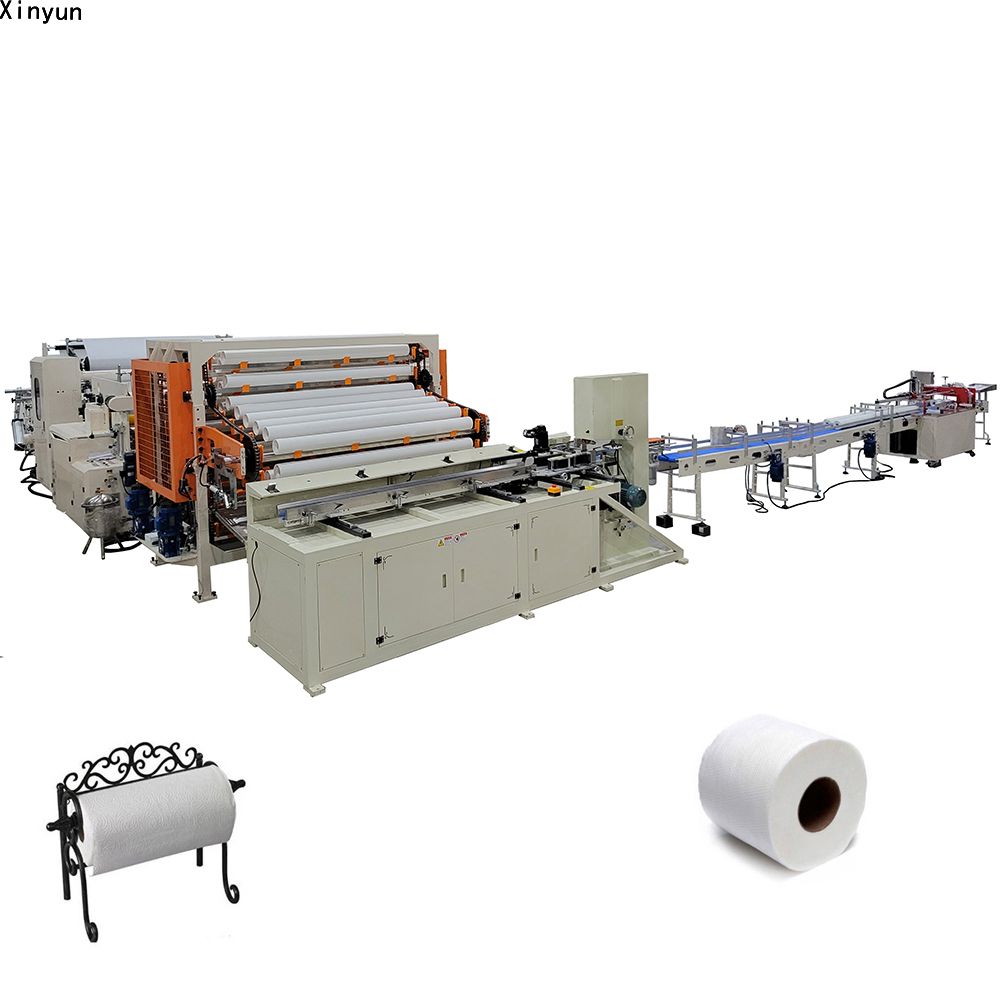

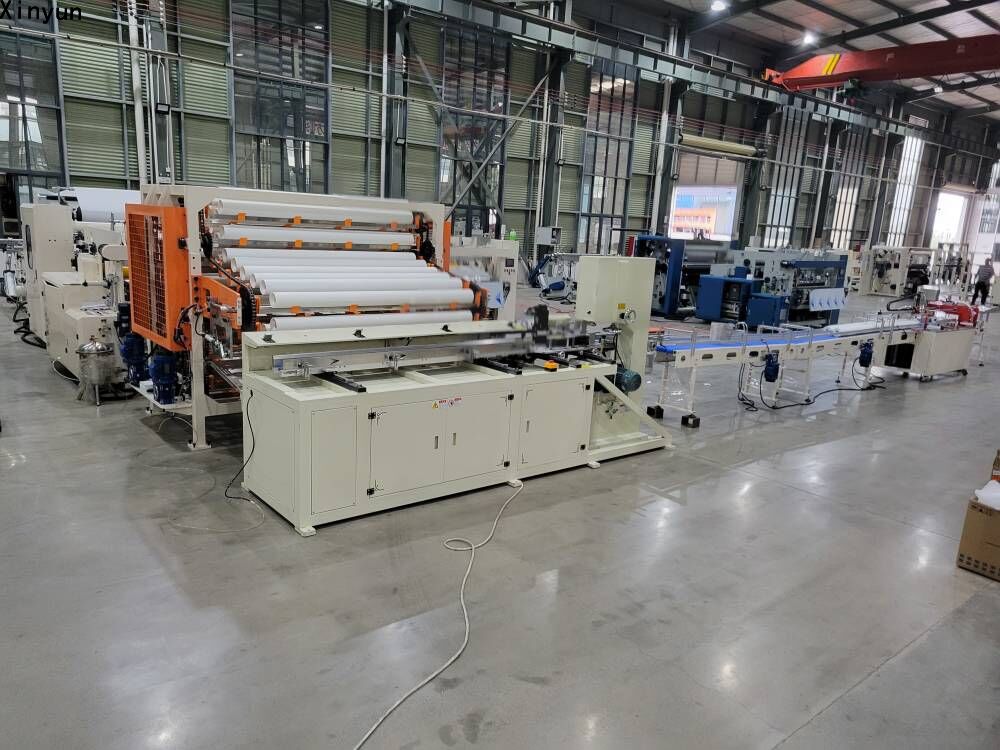

The XY-TQ-A-G production line consists of a fully automatic rewinding machine, paper accumulator, automatic band saw cutting machine, semi-automatic packing machine and conveyor belt. From jumbo roll feeding to finished roll output, the complete line runs smoothly and stably, helping save labor costs and reduce manual workload. It is suitable for producing toilet paper and kitchen towel rolls.

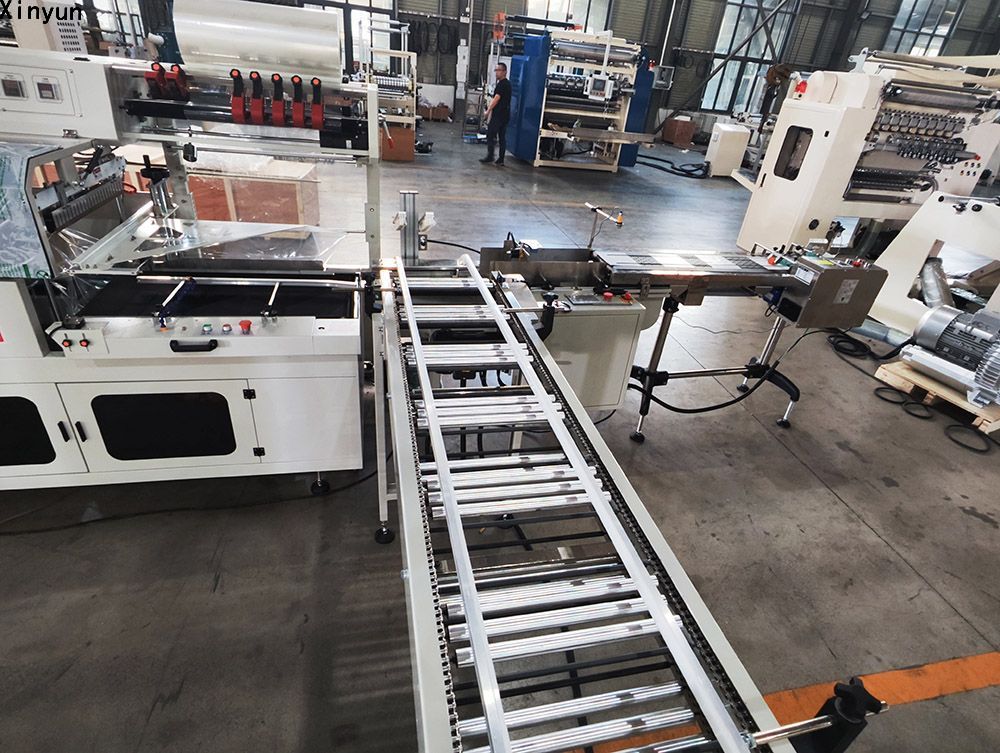

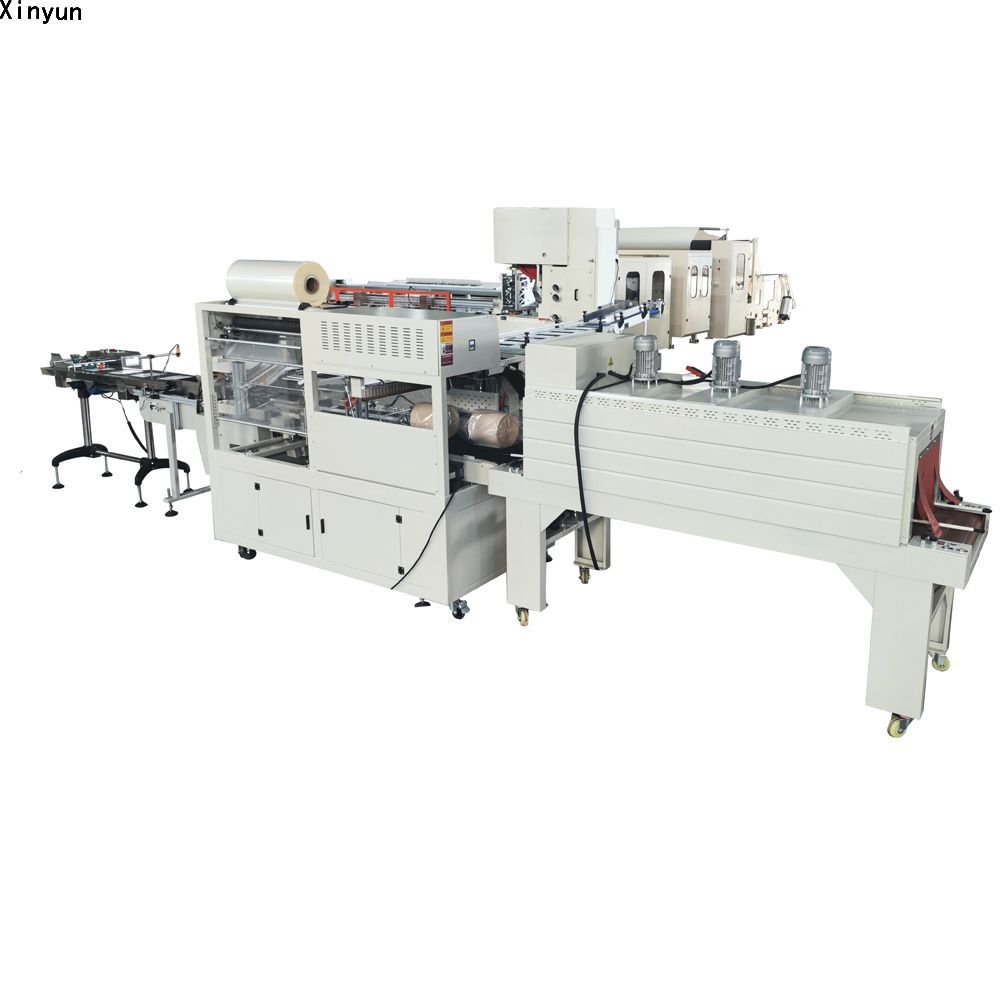

The packaging section can be upgraded with an automatic labeling and shrink packing machine according to customers' production and packaging requirements. The optional upgrade does not change the XY-TQ-A-G model of the main production line.

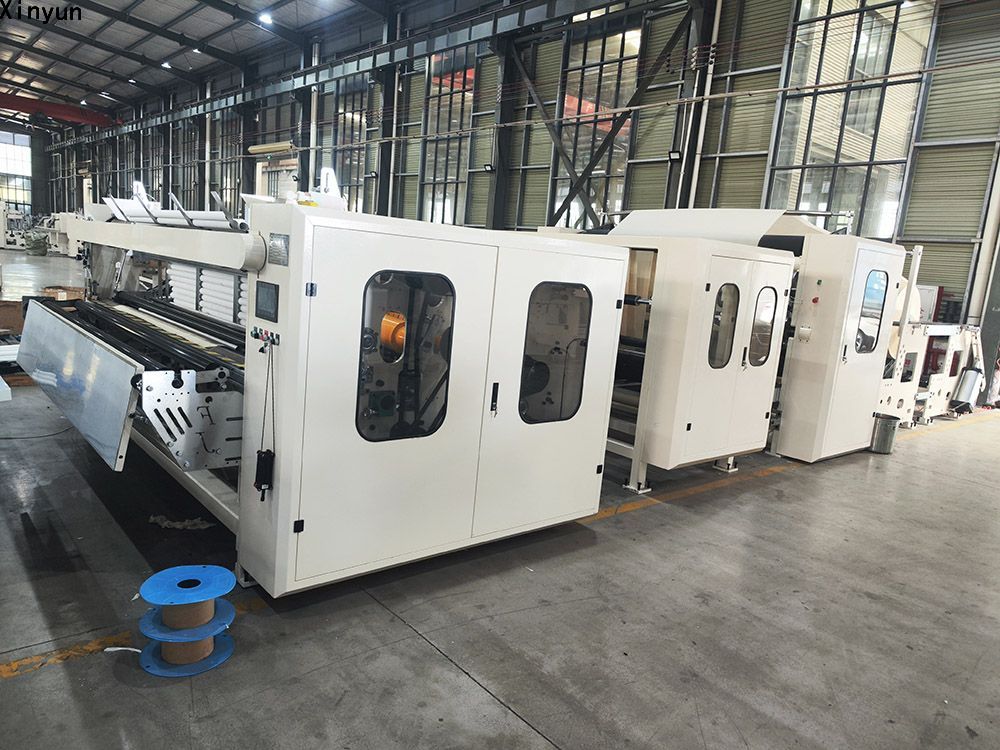

Rewinding machine

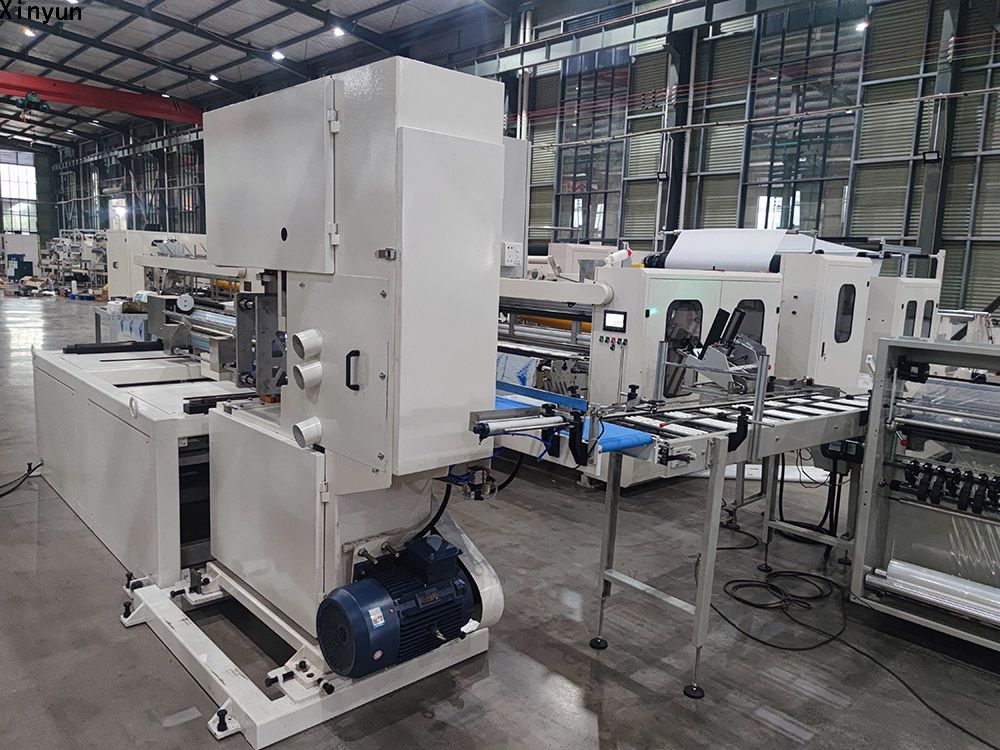

Automatic toilet paper band saw cutting machine

Semi automatic toilet paper packing machine

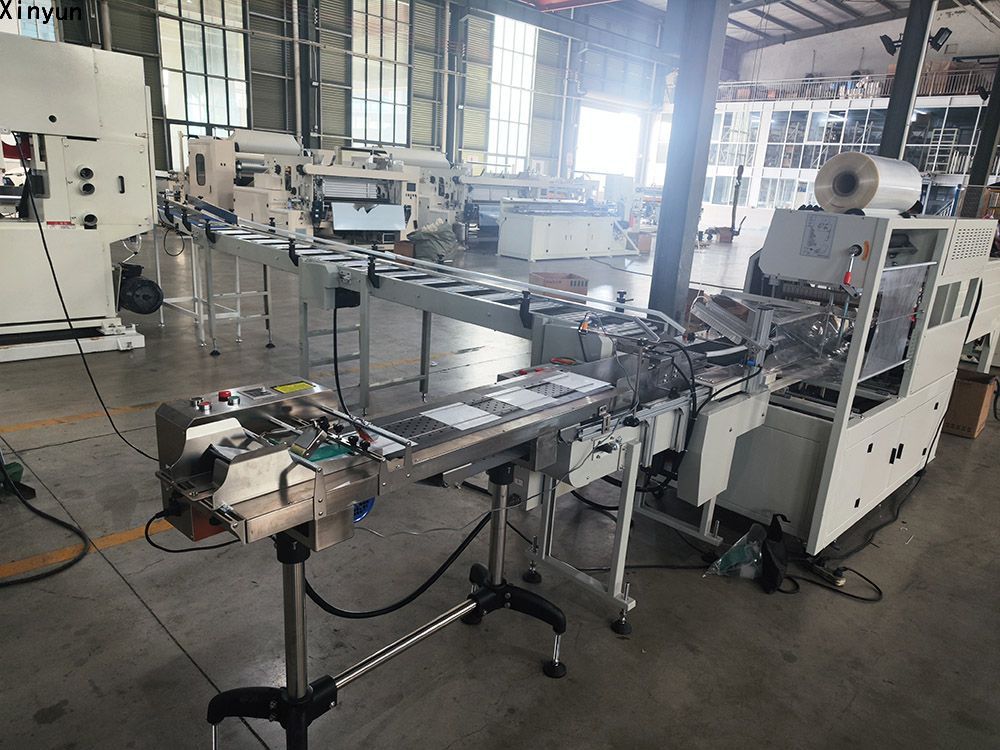

Conveyor belt

Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Workshop

Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.

Automatic glue lamination maxi roll paper making machine    XY-TQ-B

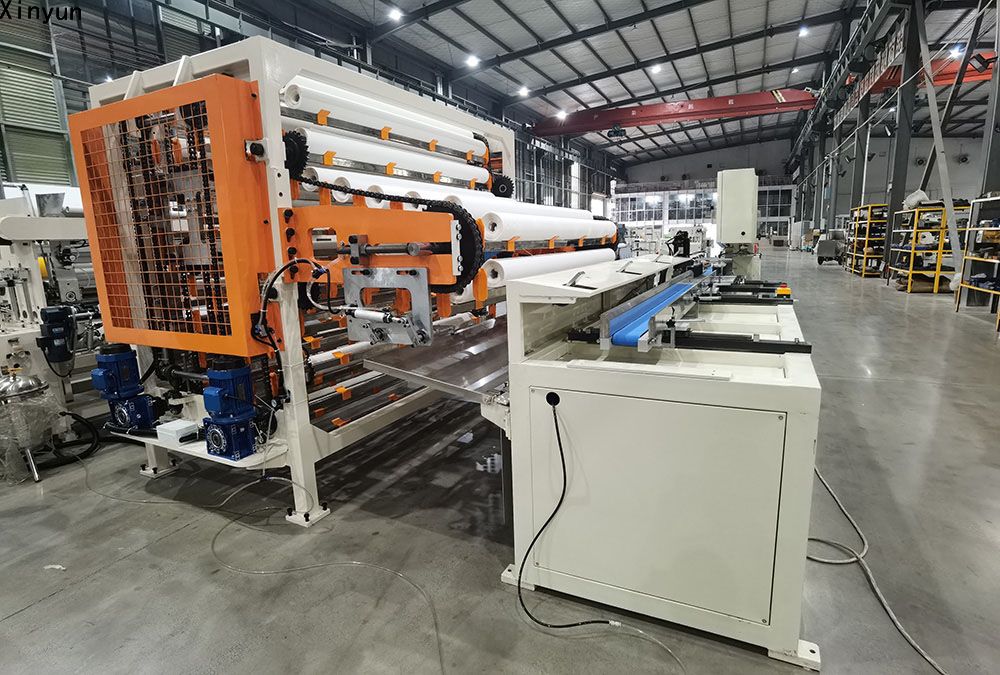

Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy  to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Function and Features:

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Main Technical Parameters:

Automatic toilet paper band saw cutting machine  XY-AI-400

Technical performance characteristic：

The equipment adopts PLC-programmed control and a large true-colour human-machine interface. The precise servo system controls the feeding length, while the integrated electromechanical control system automatically monitors key operating actions.

When an operating fault occurs, the control system displays the corresponding fault information to help the operator identify and resolve the problem promptly.

The XY-AI-400 is suitable for cutting both toilet paper logs and kitchen towel paper logs. It can be used as an independent cutting machine or connected to the corresponding rewinding and packing equipment in a toilet paper or kitchen towel production line.

1、If a paper log cannot be cut correctly, the machine stops automatically and activates an alarm.

2、The feeding motor adopts a high-precision servo system to help maintain consistent finished-roll quality.

3、The machine automatically calculates the number of finished rolls according to the paper log length and the selected finished-roll cutting length.

4、If incorrect operating data is entered, the machine stops and displays an adjustment prompt on the interface.

5、The leading and trailing waste sections of the paper log can be sorted automatically.

6、The automatic blade-sharpening system can be adjusted according to the toilet paper or kitchen towel log being cut, helping extend blade service life.

7、The sharpening system adopts a sharp steel grinding wheel to improve blade-sharpening efficiency.

8、Cutting specifications can be adjusted according to the required toilet paper or kitchen towel roll size within the machine’s applicable range.

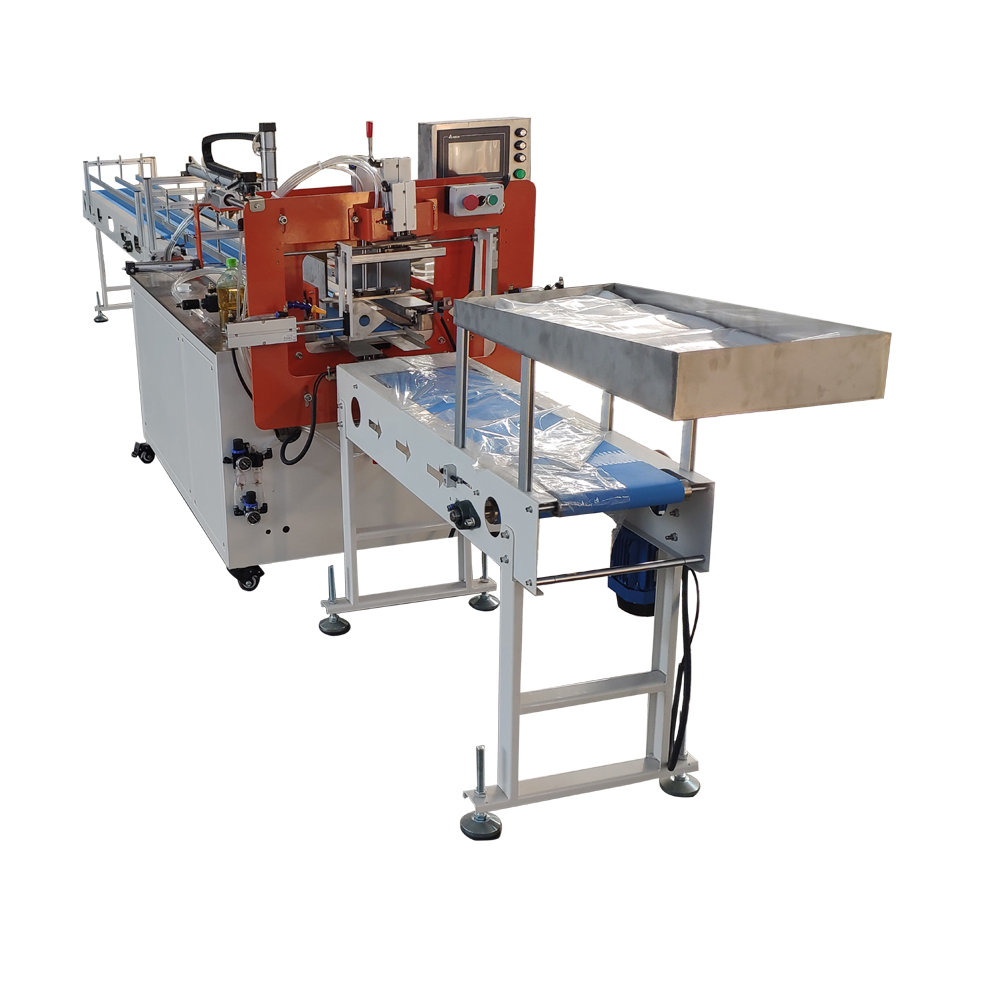

Semi automatic toilet roll paper bundle packing machine  XY-AI-398A

This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements. It’s easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.
