Technical Parameter
Automatic handkerchief tissue paper making machine production line
XY-NGU-21C
Technical performance characteristic：

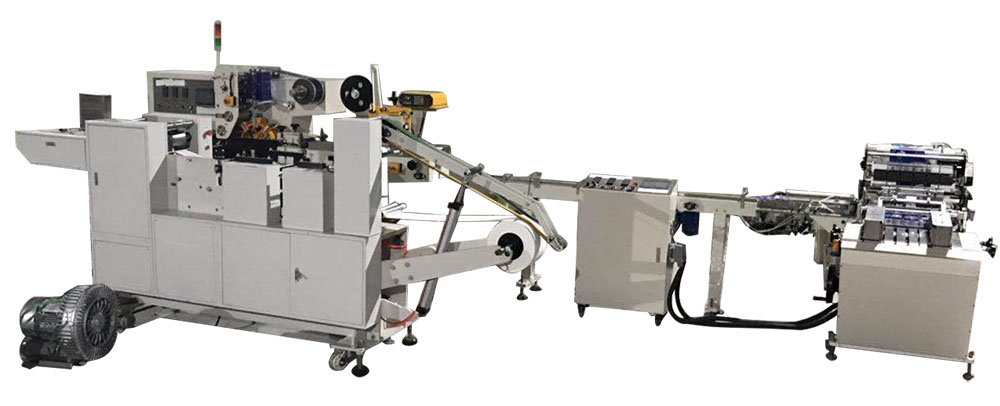

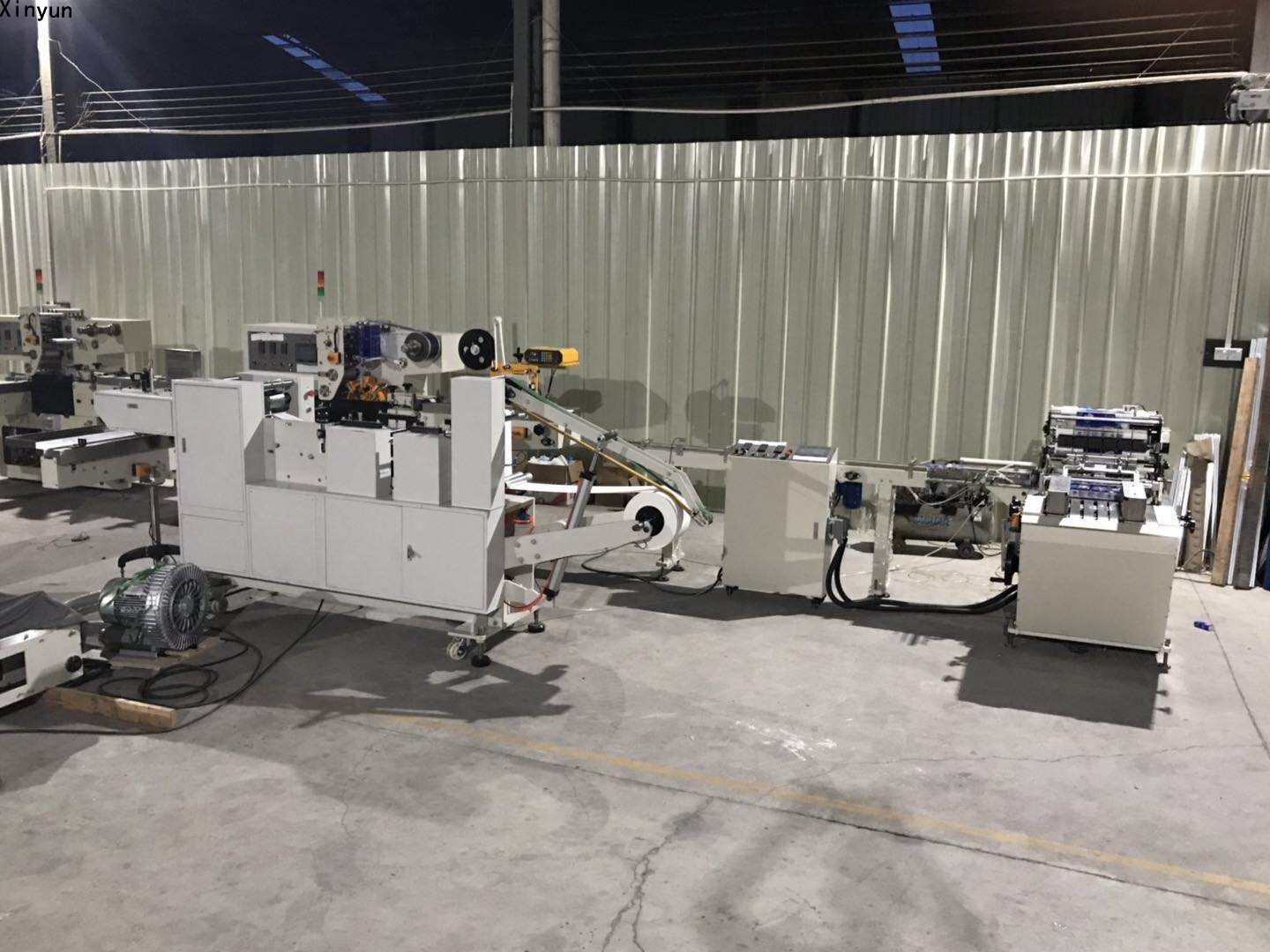

Automatic handkerchief production line is consists of four parts: Handkerchief Folding Machine, Separating Unit, Single Bag Packing Machine and Multiple Bags Packing Machine. Raw material from jumbo roll first through color printing unit(optional), Then embossing and folding into handkerchief. And then separated into different sets by separating unit, then go to the single bag packing and multiple bags packing. This line realizes the whole production process is automatic. It greatly improve the efficiency and reduce labor cost and easy to operate. It adopts failures tracing and alarm system, failures will be found and settle immediately, which save the lost in a maximum way. Handkerchief folding size, tissue number of each bag and multiple packing bag number all can be made according to clients’ requirement.
Video Link: https://youtu.be/rKjM-Nc0bVo
Handkerchief Folding Machine
Function and Features
1. Machine controlled by Delta PLC , HMI
2. Perfect fault detection tracking system, high precision photoelectric tracking system
3. Transmission system adopts advanced frequency control of motor speed control
4. With intelligent shard system, realizing automatic folding, reduce the Production cost
5. The gear ratio system, eliminating the paper and packaging machine pushing rod collision
6. Adopt independent operation control system, no need to modify packaging machine, are highly combination
7. The adsorption type folding, beautiful accurate control to ensure that product specifications
Main parameter
Overall dimension(mm) | 3850L*692W*1360H
|
Width of jumbo roll paper | 180-210mm
|
Diameter of jumbo roll paper | Max. 1500mm
|
Diameter of jumbo roll paper inner core | 76mm
|
Open size of finished products | 200/205/210mm
|
Folded size of finished products | （65-115）*（50-53）mm
|
Embossing Unit | Steel to Rubber, Steel to Steel(Optional) |
Separating piece | 8/9/10 |
Speed | 70-75 bags/min |
Weight | 1000kg |
Power | 2.2 KW |
Blower Power | 5.5 KW |
Automatic Single Bag Packing Machine
Functions and Features
1. Machine controlled by Simens PLC , HMI
2. Perfect fault detection tracking system, high precision photoelectric tracking system
3. Transmission system adopts advanced frequency control of motor speed control,
each cycle positioning is carried out by the dividing machine of precision
4. The automatic oil circulation lubrication system, greatly prolong the service life of
whole machine
5. The characteristic of the antistatic technology, make the packaging more stable
performance
6. Using intelligent temperature controller, the temperature control is follow one's
inclinations
7. Paper packaging film opening for automatic punching, configuration and installation of various exterior opening automatic punching equipment
8. Production date, batch number details automatically print in color ink, and print position can be adjusted .
9. Outer packaging film arc opening the non-drying label synchronization
automatically paste
Main parameter
Overall Dimension(mm) | 2840L*2650W*1720H |
Packing size(mm) | (70-110)L*(50-55)W*(20-28)H
|
Design speed | 110 bags/min |
Stable speed | 90-100 bags/min |
Total Power | 4.68KW
|
Air Pressure | 0.5-0.6 MPa(Supplied by client) |
Air Consumption | 2.5 m3/H |
Power supply | 380 V, 50 Hz (Three-phase) |
Weight | 1650kg |
Packing material |

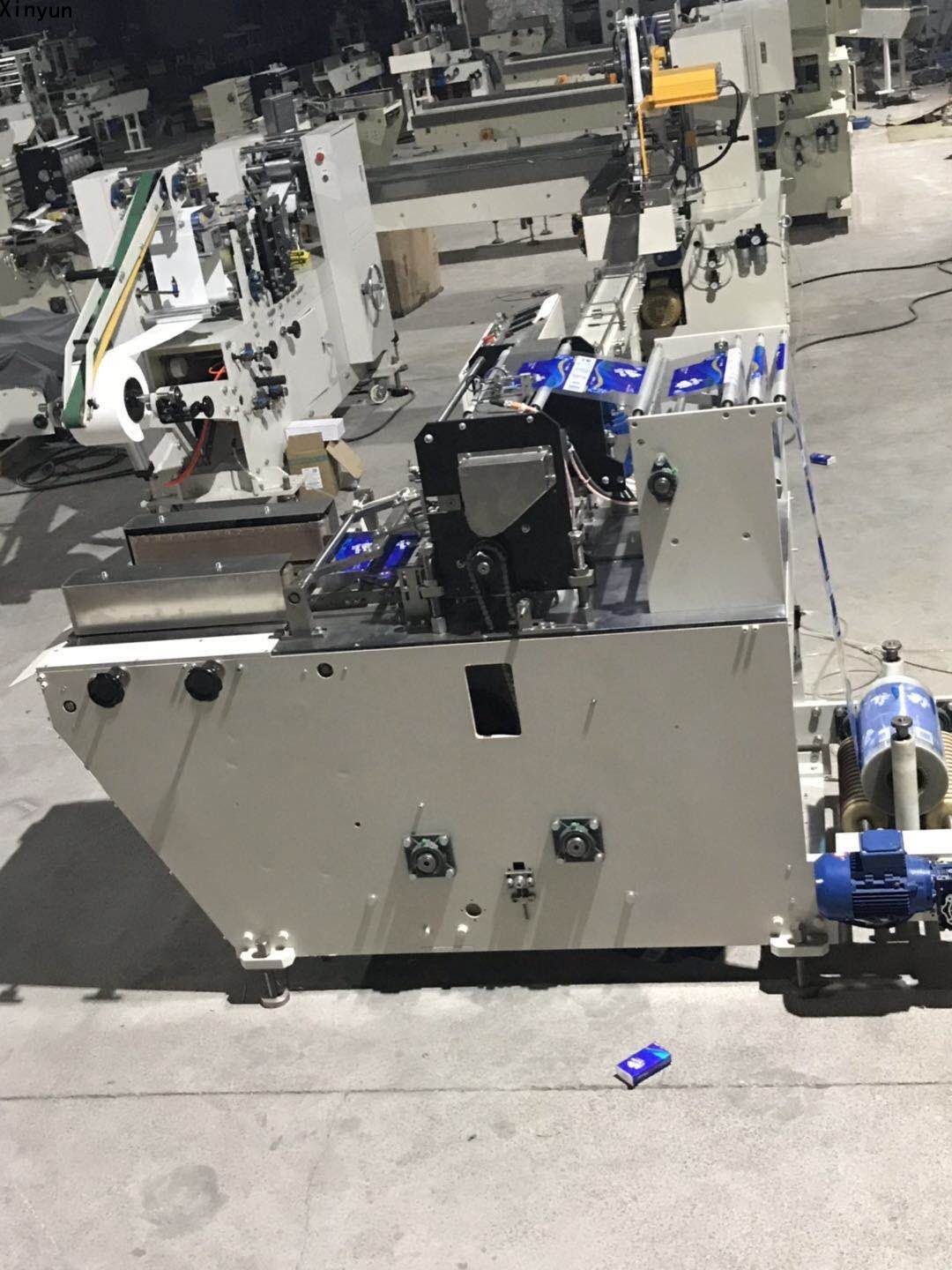

Multiple Bags Packing Machine
Function and Features
1. Machine controlled by Simens PLC , HMI
2. Perfect fault detection tracking system, high precision photoelectric tracking system
3. Transmission system adopts advanced frequency control of motor speed control,
each cycle positioning is carried out by the dividing machine of precision
4. The automatic oil lubrication system, greatly prolong the service life of the whole
machine
5. The characteristic of the antistatic technology, make the packaging more stable
performance
6. Using intelligent temperature controller, the temperature control is follow one's
inclinations
Main parameter
Overall dimension(mm) | 2500L*3200W*1550H
|
Packing size(mm) | (150-330)L*(70-150)W*(20-84)H
|

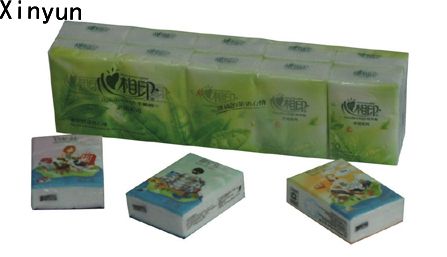

Packing style | 5*2、5*3、5*4 |
Stable speed | 10 bags/min |
Total Power | 3.5KW
|
Air pressure | 0.5-0.6(Supplied by client) |
Air consumption | 2.5 m3/H |
Voltage | 380V 50Hz (Three-phase) |
Weight | 1200kg |
Packing Material | CPP，PE Double-sided heat sealing film |
