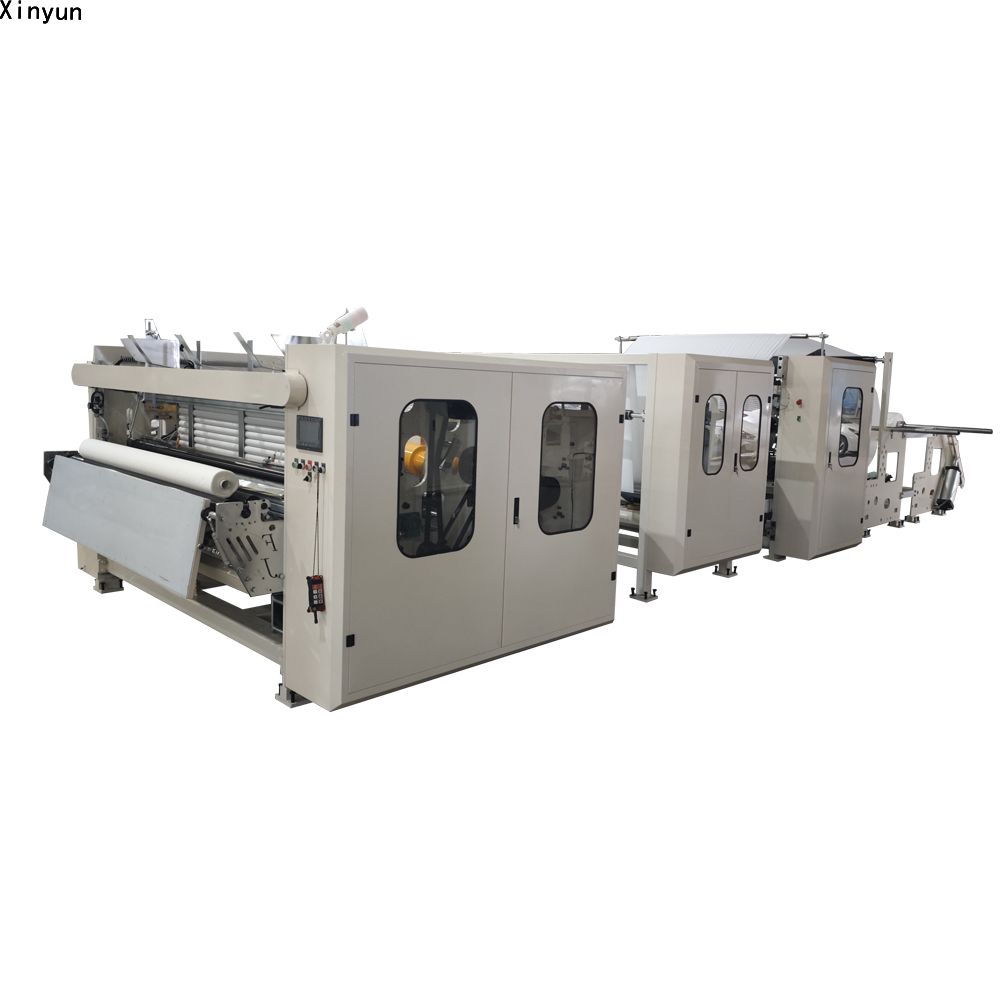

Automatic glue lamination toilet paper machine  XY-TQ-B

The automatic glue lamination toilet paper machine is designed for small toilet paper rewinding and roll processing. The machine has a core feeding unit and can produce rolls both with and without cores. Raw material from the jumbo roll passes through full embossing or edge embossing, perforation, glue lamination, end cutting and tail glue spraying to form a paper log. It can then work with a cutting machine and packing machine to produce finished products.

The machine is controlled by PLC and operated through a touch screen. The whole process is automatic, easy to operate and helps reduce labor costs. The machine can also be custom-made according to customers' requirements.
Function and Features:

1. Automatic core feeding system and automatic log pushing after rewinding, followed by rewinding of the new log.
2. Automatic edge trimming, core feeding, glue spraying and sealing are completed synchronously. A 10–18 mm tail is left for easy rewinding, reducing paper waste and saving costs.
3. Adopts advanced PLC programmable control technology and a human-machine interface. Data settings and fault parameters are displayed on the touch screen.
4. Adopts four high-precision spiral knives, featuring low noise and clear perforation. The gearbox provides a wider adjustment range.
5. Three horizontal back stands with a pneumatic loading system and wide flat drive belts. Each jumbo roll can be adjusted independently.
6. Embossing and glue lamination unit: adopts point-to-point embossing rollers and a standard doctor blade glue lamination device, making the paper layers match and bond well. The finished paper is soft and has clear patterns.
7. Adopts jogging switches for paper threading, making the machine easy and safe to operate.

Main Technical Parameters:

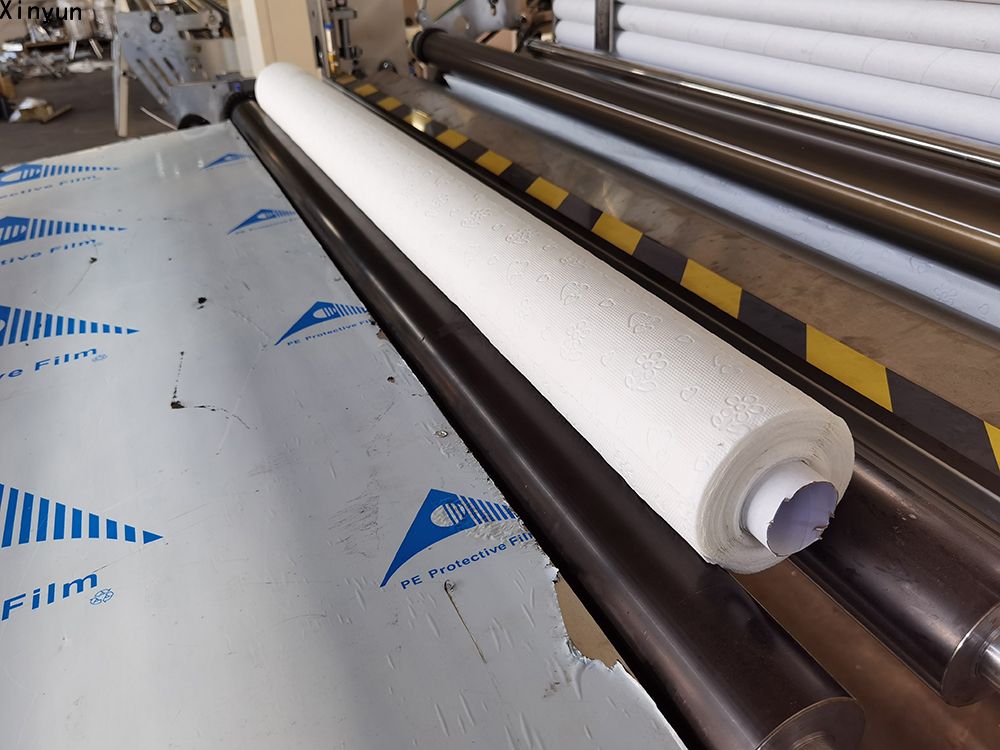

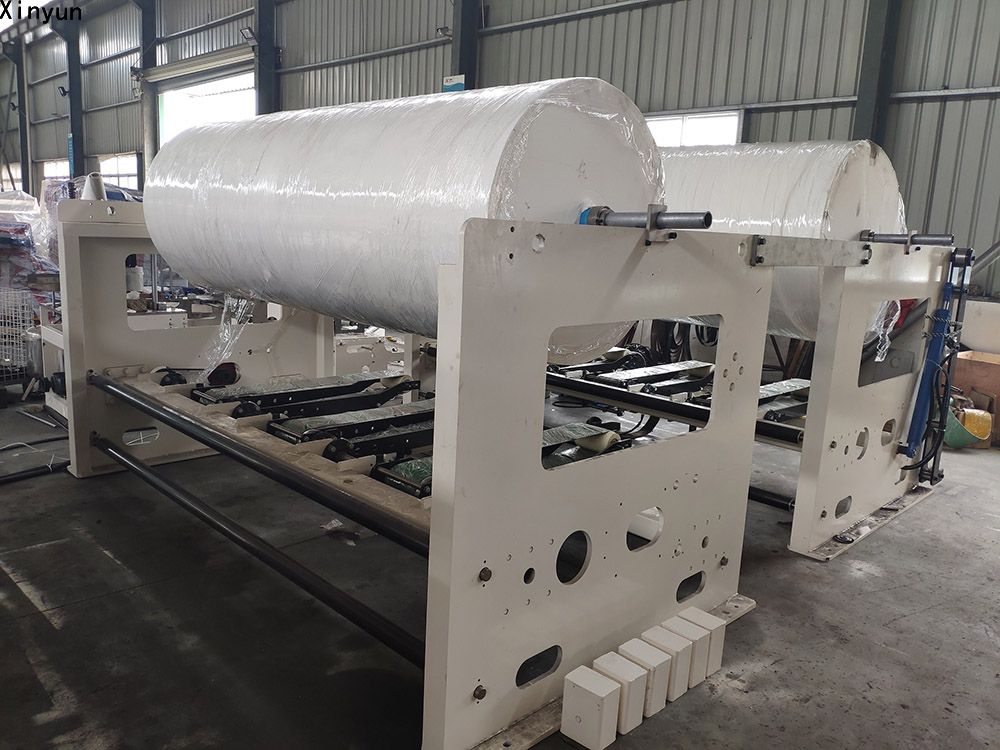

Jumbo roll standard

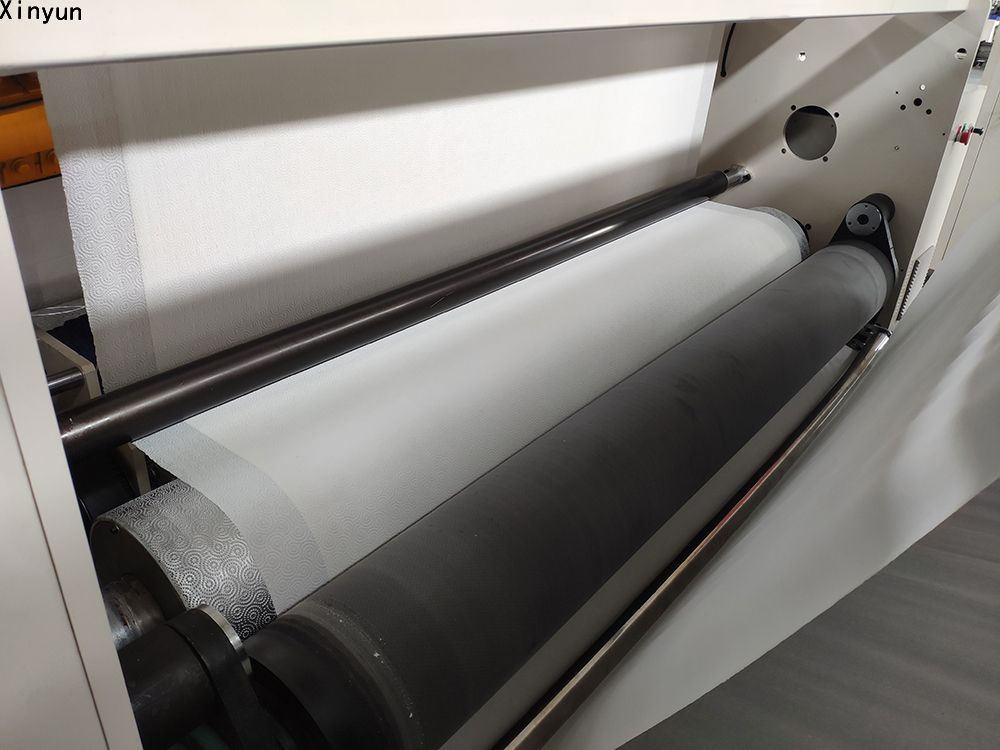

Doctor blade gluing lamination deviceEmbossing device

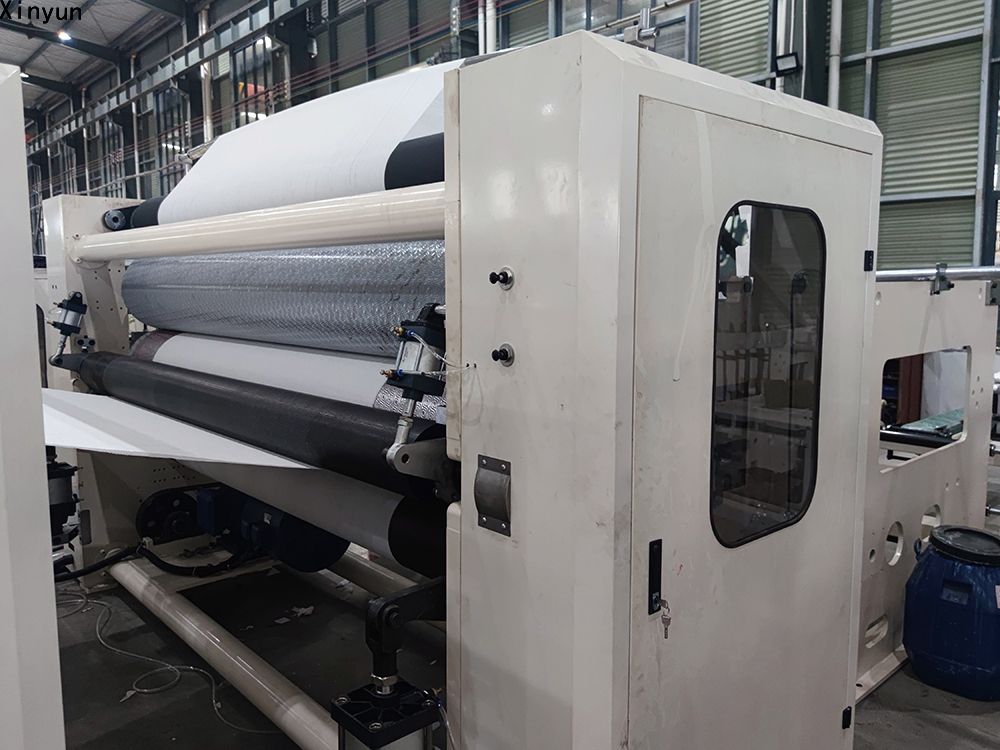

Perforating device

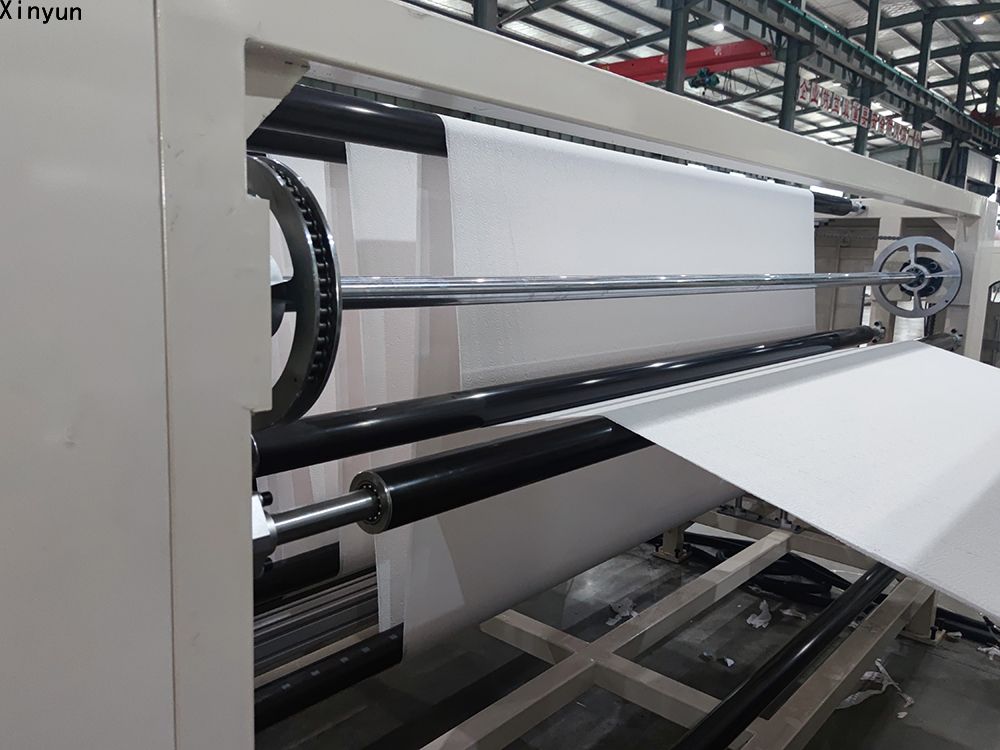

Tail-gluing— Edge trimming

Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Workshop

Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
