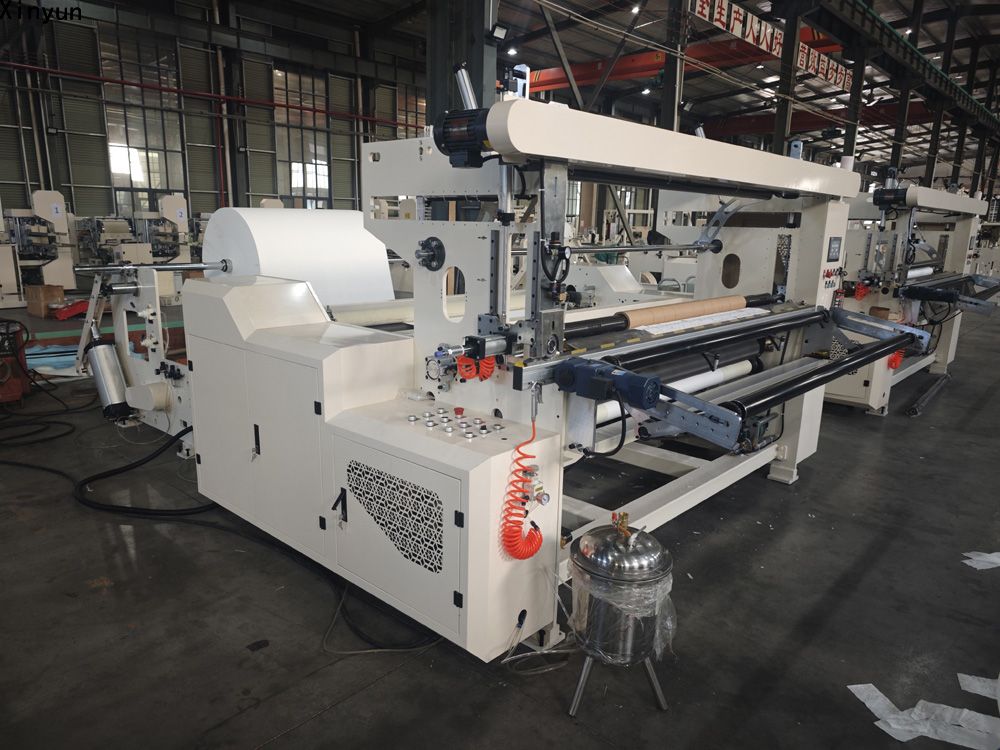

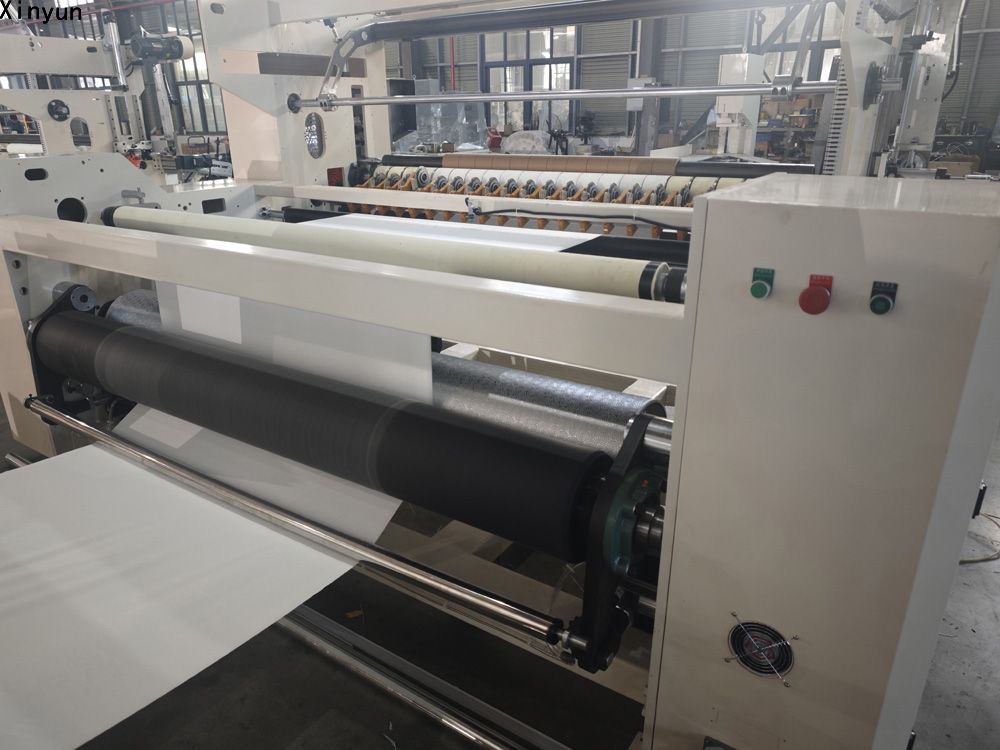

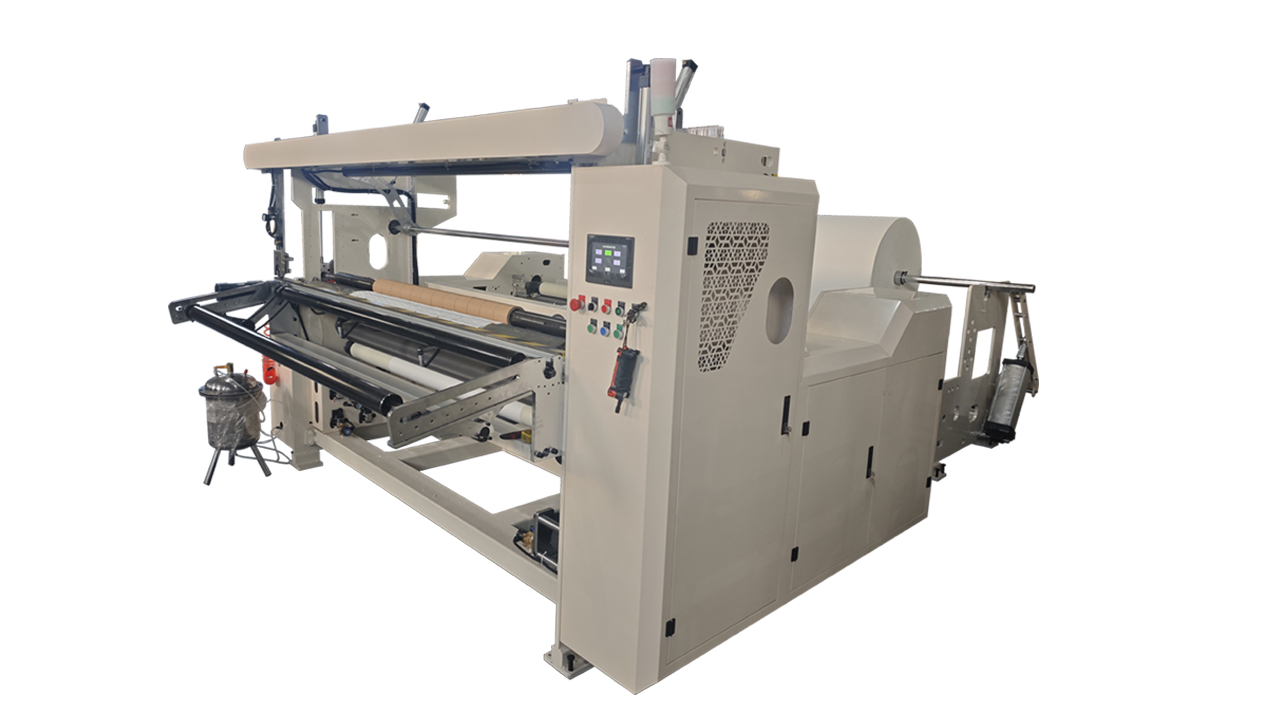

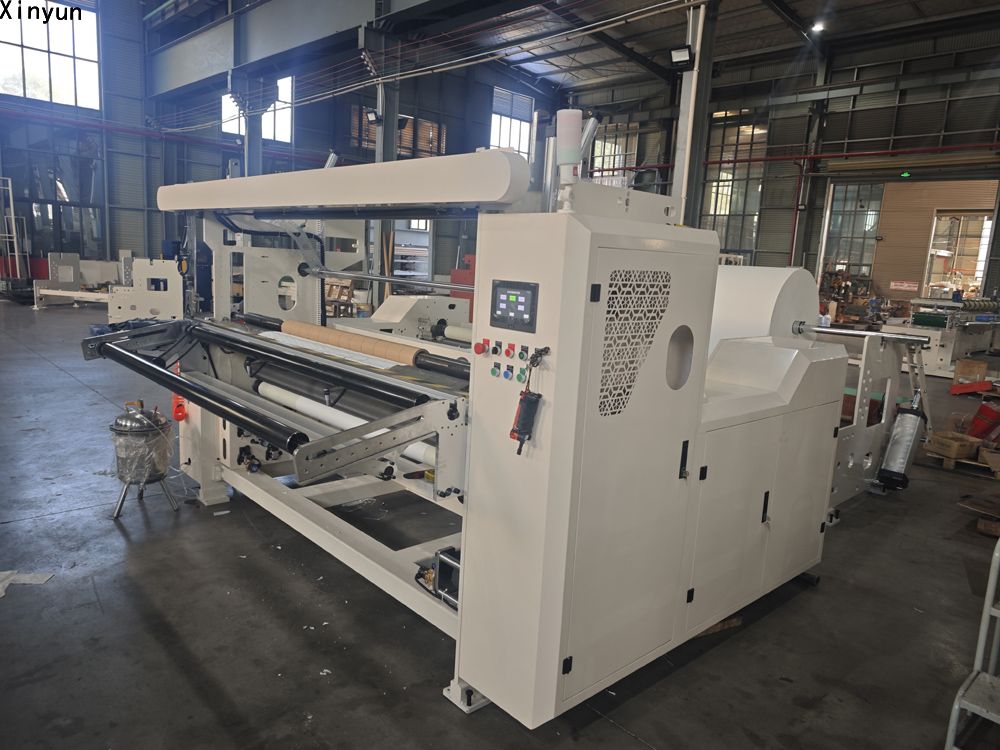

High speed maxi roll paper slitting machine   XY-TQ-G

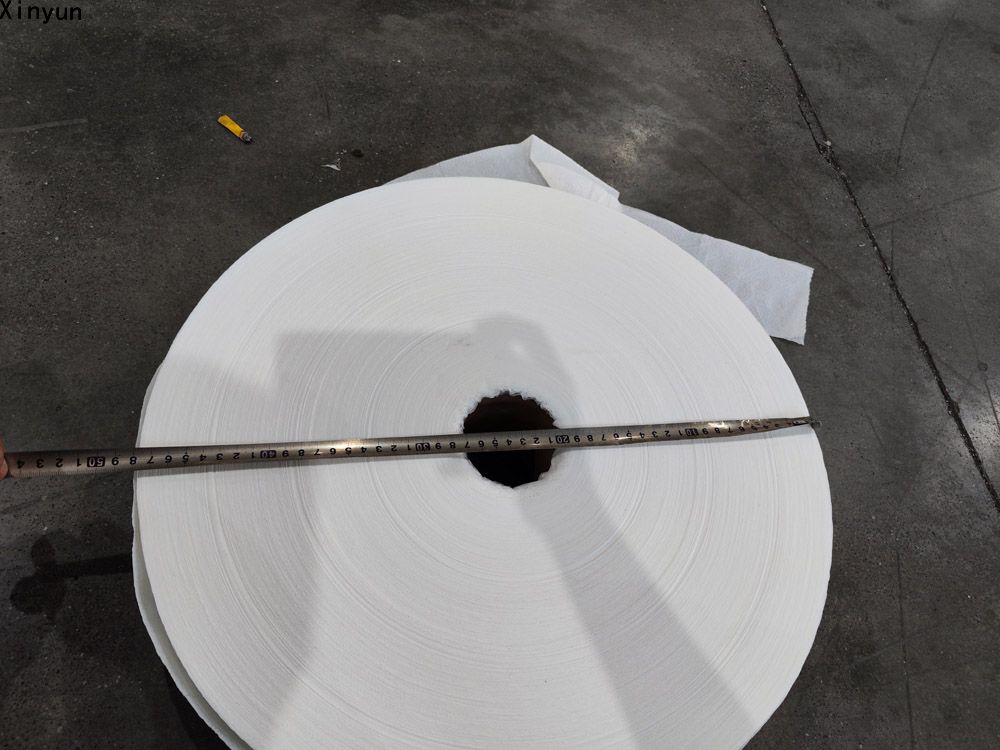

Maxi roll paper slitting machine means slitting material paper into big roll reel shape toilet paper, Mainly used for large public toilet, such as the toilet of hotel, airport.

Function and Features:

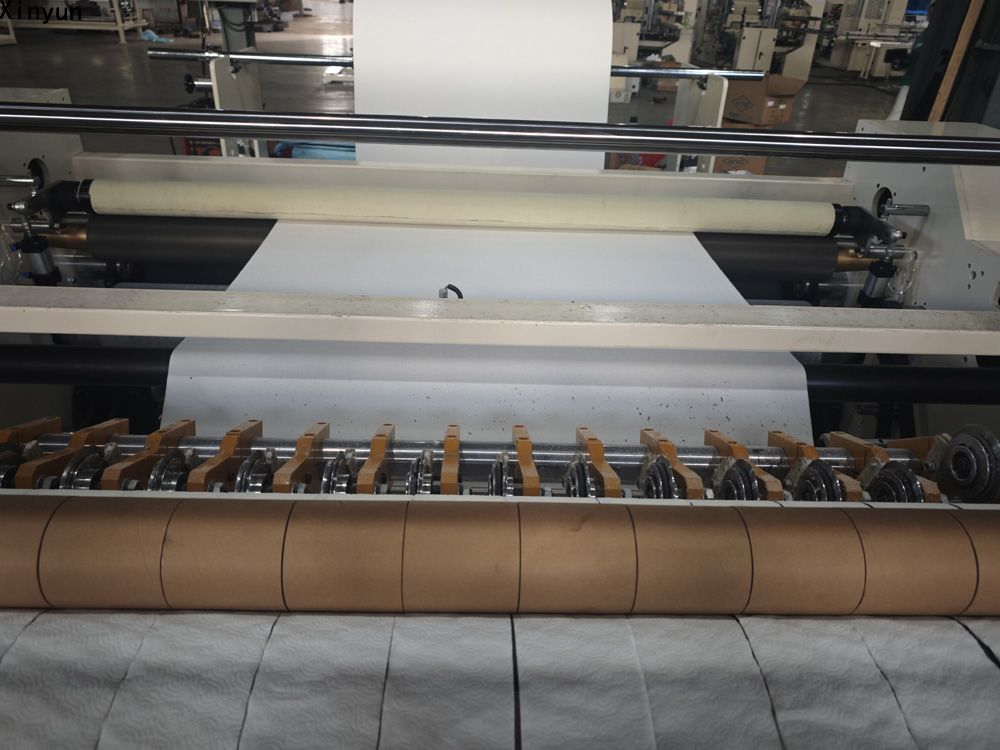

1. Use of inflatable shaft winding, so that accurate positioning is simple paper tube

Edge pressing system:

2. Edge pressing system: Using steel on steel blank pressing, independent cylinder adjustment, to facilitate adjustment to each layer of paper is not hierarchical

3. Horizontal style unwind stander, pneumatic paper loading unit, dispense artificially handling

4. Deliver paper with pneumatic wide belt, with separate tension control device in each roll of raw paper.

5. Use of traction before and after the point of switch base paper, the operation is more simple and safe

maxi roll slitting machine.jpg

Main Technical Parameters:

The width of jumbo roll1800-2800 mm
The diameter of jumbo roll1200 mm(Other size can be specified)

Jumbo roll inner core diameter

3inches(76.2mm)

Slitting diameter

1200 mm

Finish product Inner core diameter

76mm

Slitting Width

Adjustable
Speed200-230 m/min

Base paper core shaft

Air-shaft

Rewinding System

Pneumatic timing rewinding

Slitting System

Automatic slitting control

Discharging Unit

Automatic discharging

Edge Cutting Unit

2.2KW Vacuum suction edge cutting 2.2 KW

Power

Frequency conversion speed regulate 15KW

Pneumatic system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
