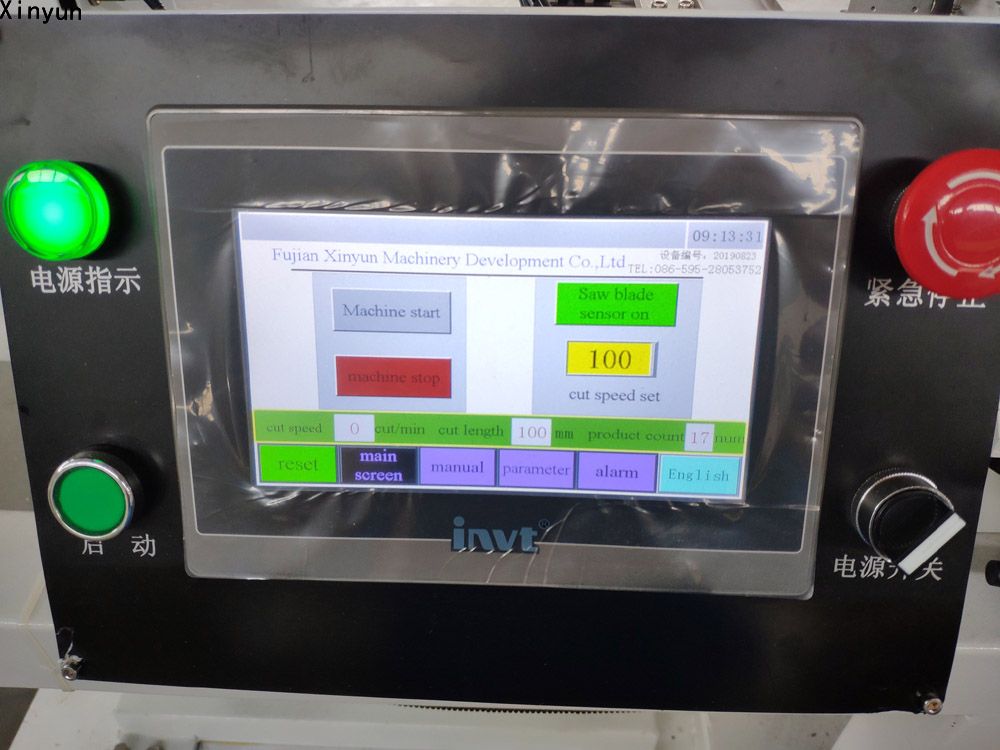

The equipment is operated by using PLC program control, big screen true color human computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state. This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.

Share this:

Technical Parameter

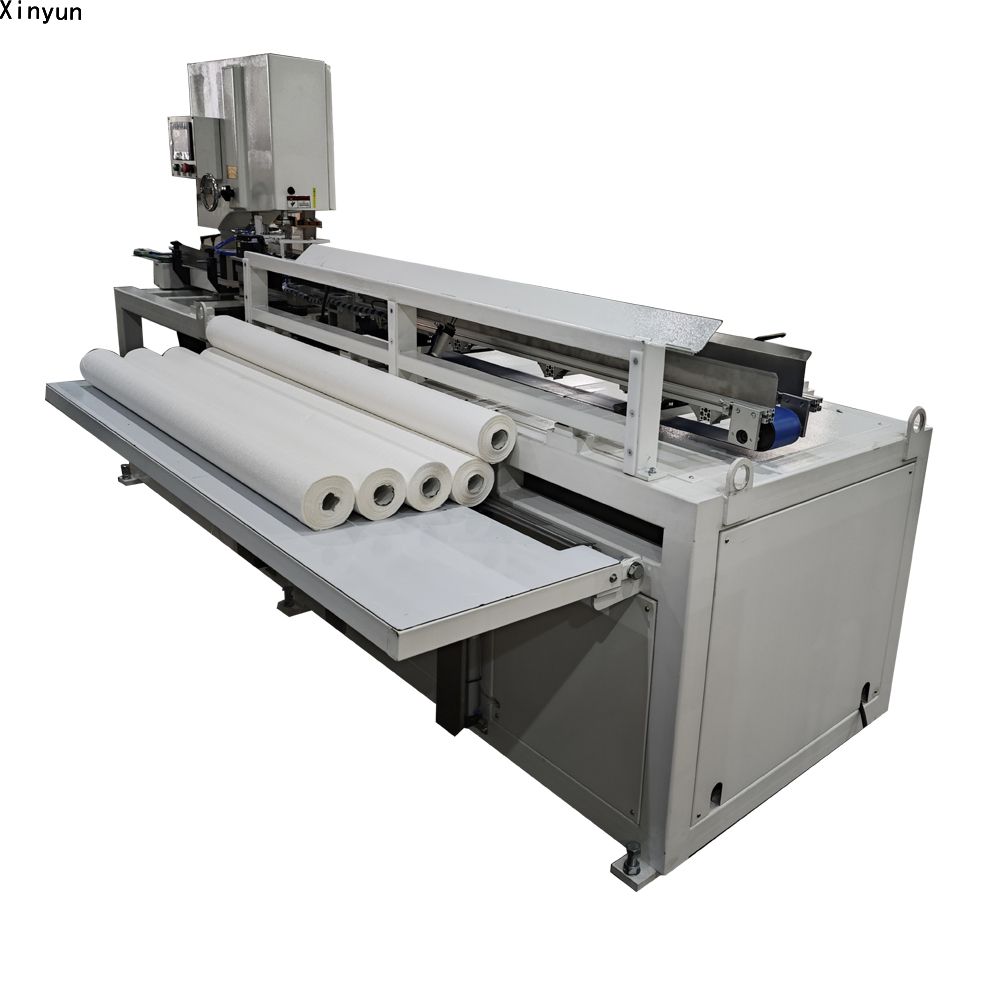

Low price small toilet roll paper band saw cutting machinery  XY-AI-400

Technical performance characteristic:

The equipment is operated by using PLC program control, big screen true color human computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.

Feature and function:

1、When the paper can not be cut down, the equipment will automatically stops and gives an alarm;

2、The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;

3、The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;

4、When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;

5、The waste paper head and paper end can be automatically sorted;

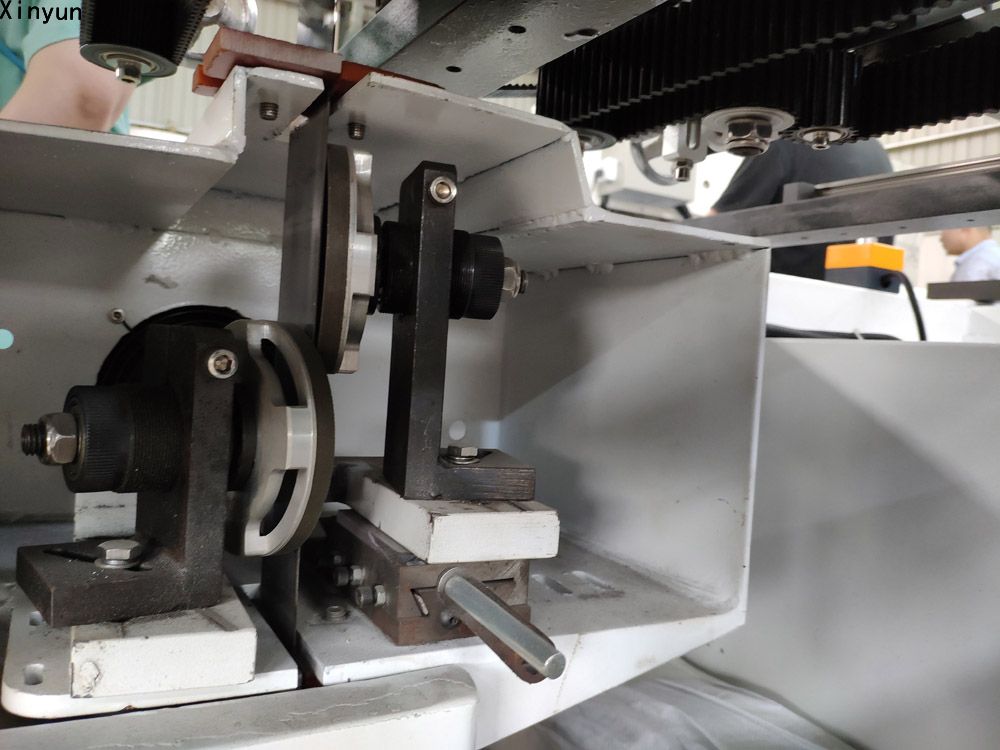

6、The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;

7、The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency .

1.jpgMain Technical Parameters:

Speed80-100

Toilet log length

≦2850mm(it can be made according to customer request)

Finished toilet roll diameter

70-130mm

Finished toilet roll length

300mm

Cutting tolerance

±1.5mm

Power

5kw 380V 50Hz

Cutting bladeband saw blade(Size 3750*50*0.5)

Overall size

2800x1500x2100mm

Weight

1100KG

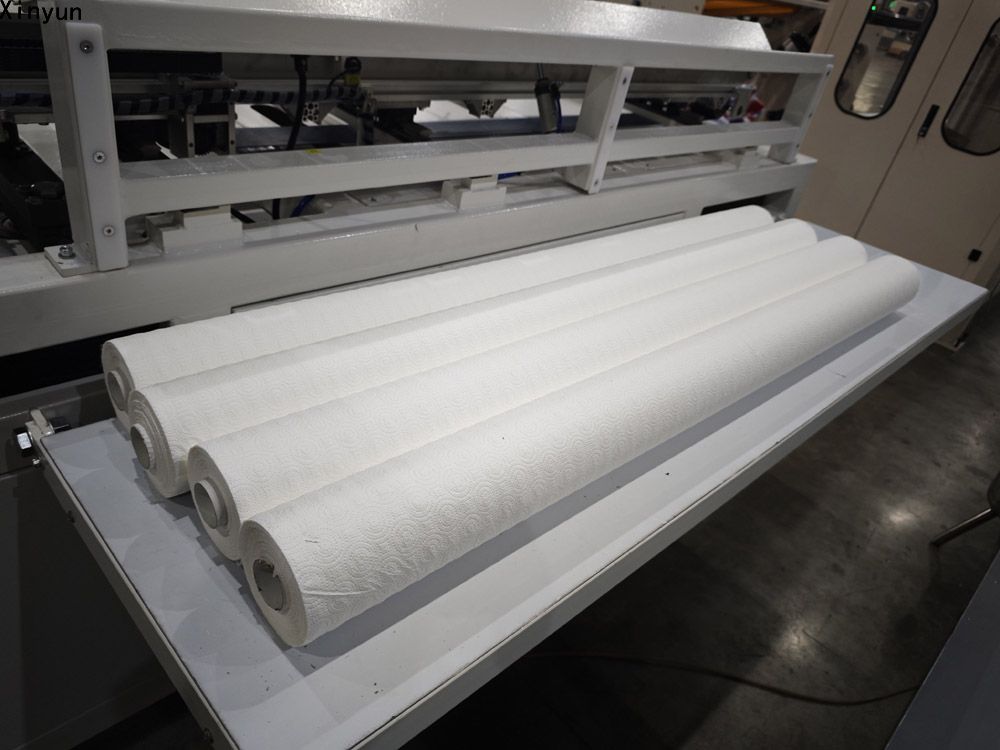

Storage board

Storage board.jpg

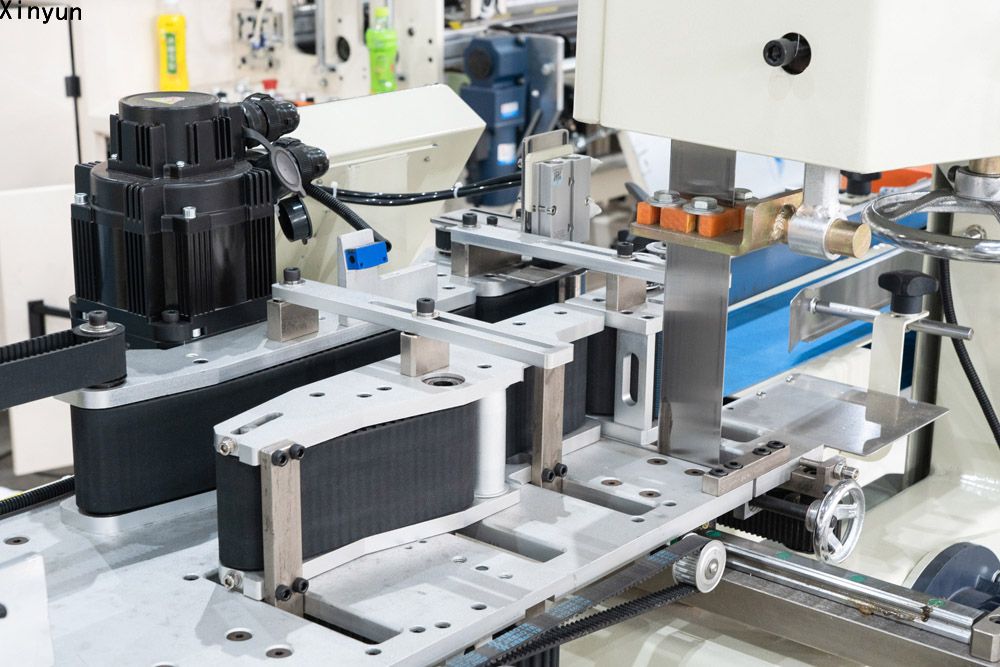

push devicepush device.jpgCutting deviceCUTTING DEVICE.jpg


Automatic Toilet Paper machine production line.jpgOur service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Workshop


Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)


2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
