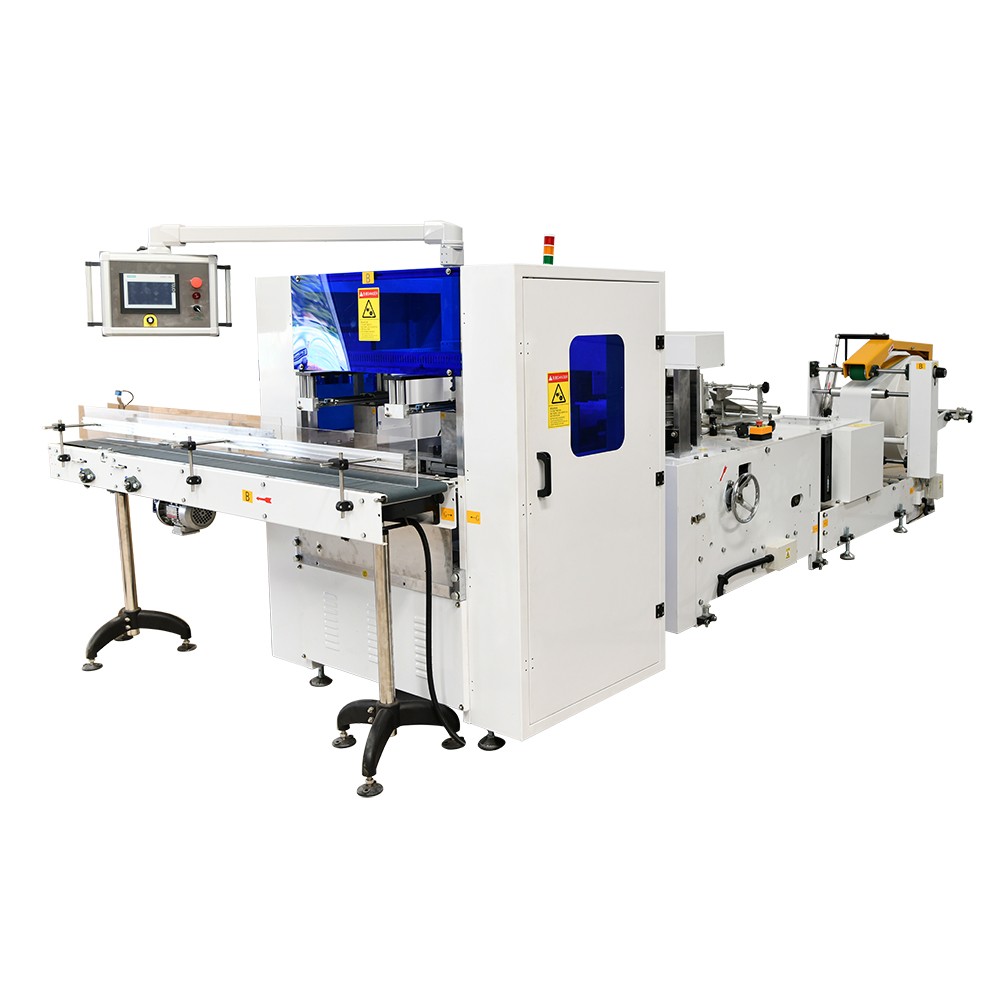

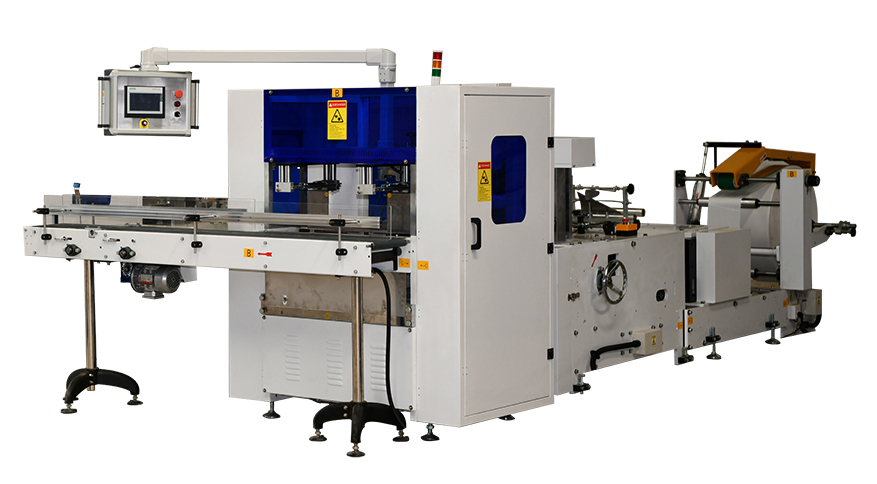

Automatic transferring napkin tissue paper making machine    XY-OQ-7000

The XY-OQ-7000 multi-colour napkin paper machine prints different colours and patterns on the paper material. The material is then embossed, folded, counted and cut into square or rectangular napkins.

For customers requiring 240 × 240 mm serviette tissues, the machine can be configured according to the corresponding paper width, folding method, printing pattern and embossing requirements. The primary machine model and existing technical parameters remain unchanged.

Main feature:

1. The machine adopts a flexible printing unit and a high-precision ceramic anilox roller, helping distribute the water-based ink evenly and produce clear, dimensional printed patterns.

2. The raw material passes through the synchronous belt to the calendering and embossing units. Tension-control devices are installed between paper feeding, calendering and embossing to maintain stable material tension.

3. The folding wheel is equipped with an automatic stop and protection device.

4. An automatic web-alignment system helps maintain accurate paper feeding.

5. Automatic constant temperature drying system.

6. Paper-break protection is provided. The machine automatically reduces speed when the raw material is nearly exhausted, and the folding roller is equipped with stop protection.

7. A water-based ink circulation system provides continuous and even ink supply.

8. The fully automatic unwinding control system tracks the main machine speed through the control system and transmits the operating data to the servo system. The servo system then feeds the paper accurately into the printing section.

9. The machine supports square and rectangular serviette tissue production. A 240 × 240 mm serviette configuration is available according to the confirmed finished-product specification.

10. Printing colours, patterns, embossing effects and folding types can be configured according to the customer’s product requirements.

Main Technical Parameters:

240 × 240 mm serviette application: The machine can be configured to produce 240 × 240 mm serviette tissues within the applicable paper-width and folding ranges. The exact folding layout, raw-material width, printing pattern and embossing configuration shall be confirmed according to the finished-product sample.

Parameter note: The speed shown above remains the technical parameter of the XY-OQ-7000 display model. Actual operating speed may vary according to the finished-product size, number of paper layers, printing colours, embossing pattern, paper characteristics and folding type.

Our service

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

Packing & Delivery

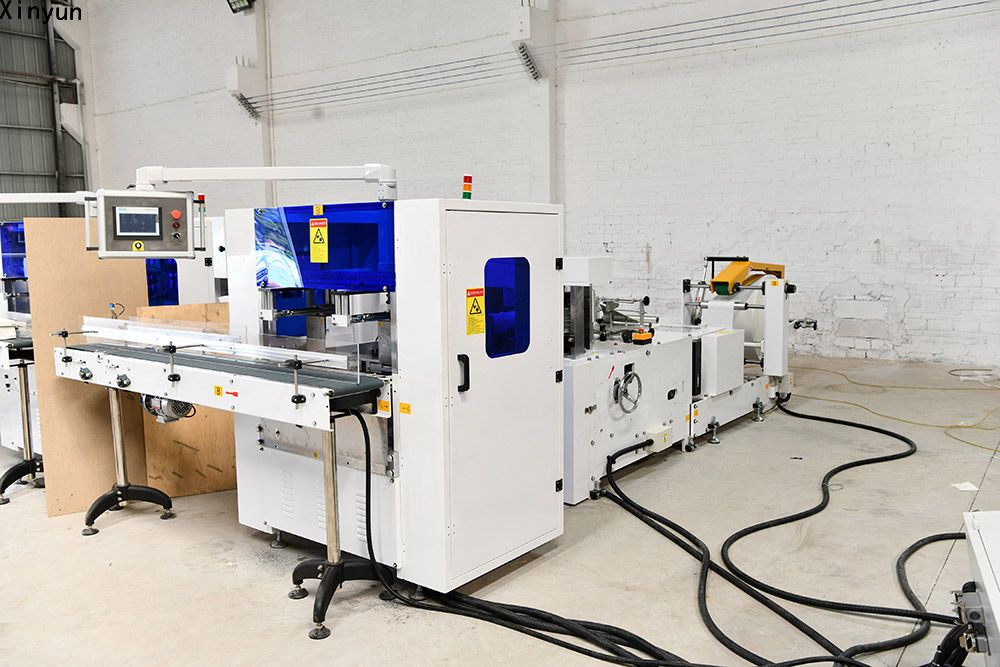

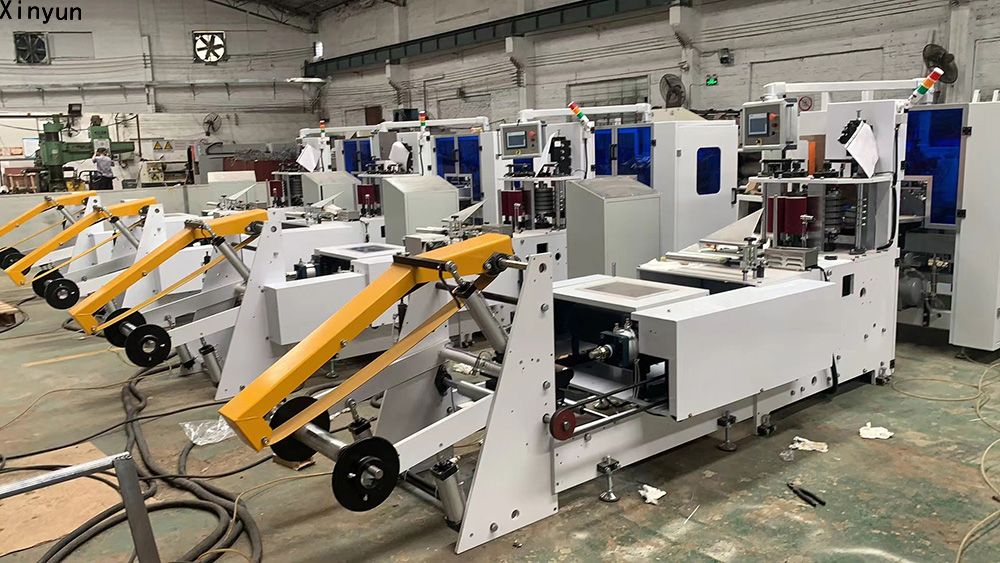

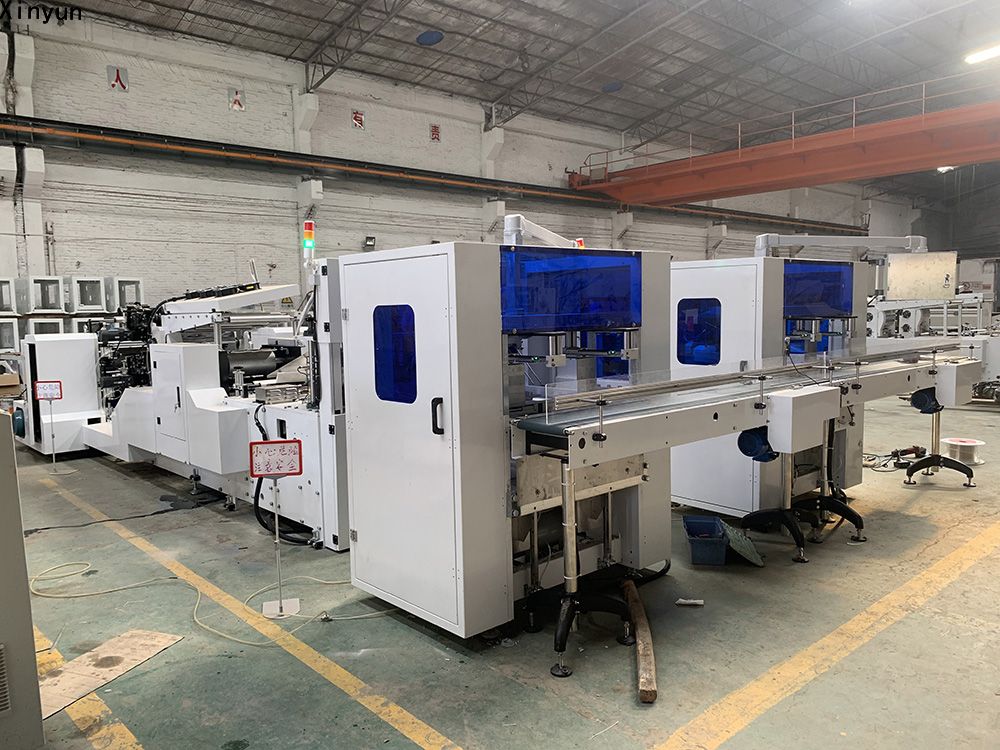

Workshop

Our company

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.

1. The machine adopts a flexible printing unit and a high-precision ceramic anilox roller, helping distribute the water-based ink evenly and produce clear, dimensional printed patterns.

2. The raw material passes through the synchronous belt to the calendering and embossing units. Tension-control devices are installed between paper feeding, calendering and embossing to maintain stable material tension.

3. The folding wheel is equipped with an automatic stop and protection device.

4. An automatic web-alignment system helps maintain accurate paper feeding.

5. Automatic constant temperature drying system.

6. Paper-break protection is provided. The machine automatically reduces speed when the raw material is nearly exhausted, and the folding roller is equipped with stop protection.

7. A water-based ink circulation system provides continuous and even ink supply.

8. The fully automatic unwinding control system tracks the main machine speed through the control system and transmits the operating data to the servo system. The servo system then feeds the paper accurately into the printing section.

9. The machine supports square and rectangular serviette tissue production. A 240 × 240 mm serviette configuration is available according to the confirmed finished-product specification.

10. Printing colours, patterns, embossing effects and folding types can be configured according to the customer’s product requirements.

240 × 240 mm serviette application: The machine can be configured to produce 240 × 240 mm serviette tissues within the applicable paper-width and folding ranges. The exact folding layout, raw-material width, printing pattern and embossing configuration shall be confirmed according to the finished-product sample.

Parameter note: The speed shown above remains the technical parameter of the XY-OQ-7000 display model. Actual operating speed may vary according to the finished-product size, number of paper layers, printing colours, embossing pattern, paper characteristics and folding type.
